2007 Kawasaki Mule 3000 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2007 Kawasaki Mule 3000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

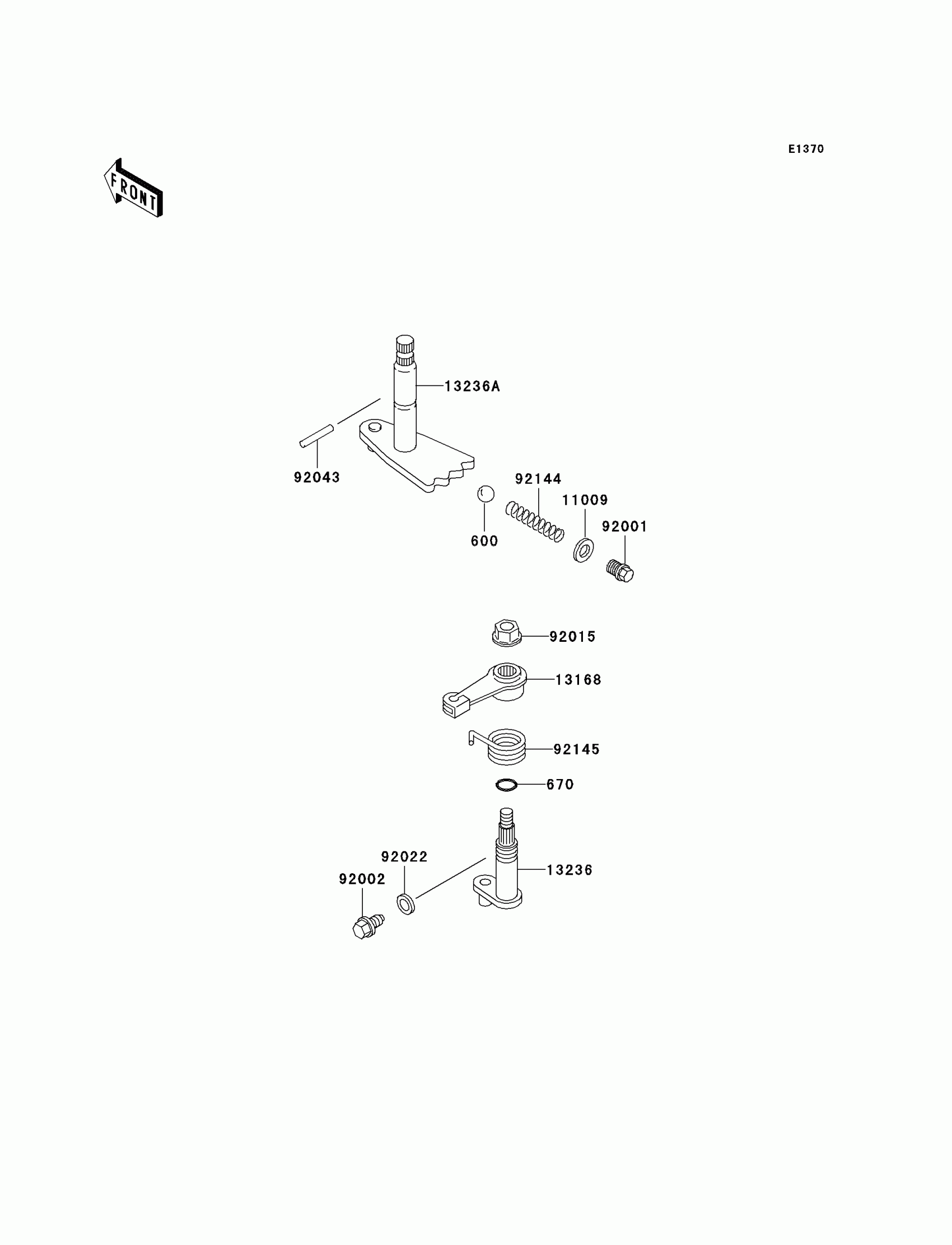

2007 Kawasaki Mule 3000 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

1

$0.90

In stock

670

O RING,10MM

670B2010

1

$1.31

In stock

11009

GASKET,15.5X22X1

11009-1008

1

$2.92

In stock

13168

LEVER,DIFF LOCK

13168-1523

1

$21.32

In stock

13236

LEVER-COMP,DIFF LOCK

13236-1219

1
Out of stock

13236A

LEVER-COMP,FR/RR

13236-1366

1
Out of stock

92001

1

$12.73

In stock

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92022

1

$3.13

In stock

92043

PIN

92043-1415

1

$2.03

In stock

92144

SPRING,LOCK LEVER

92144-1198

1
Out of stock

92144A

1

$8.51

In stock
