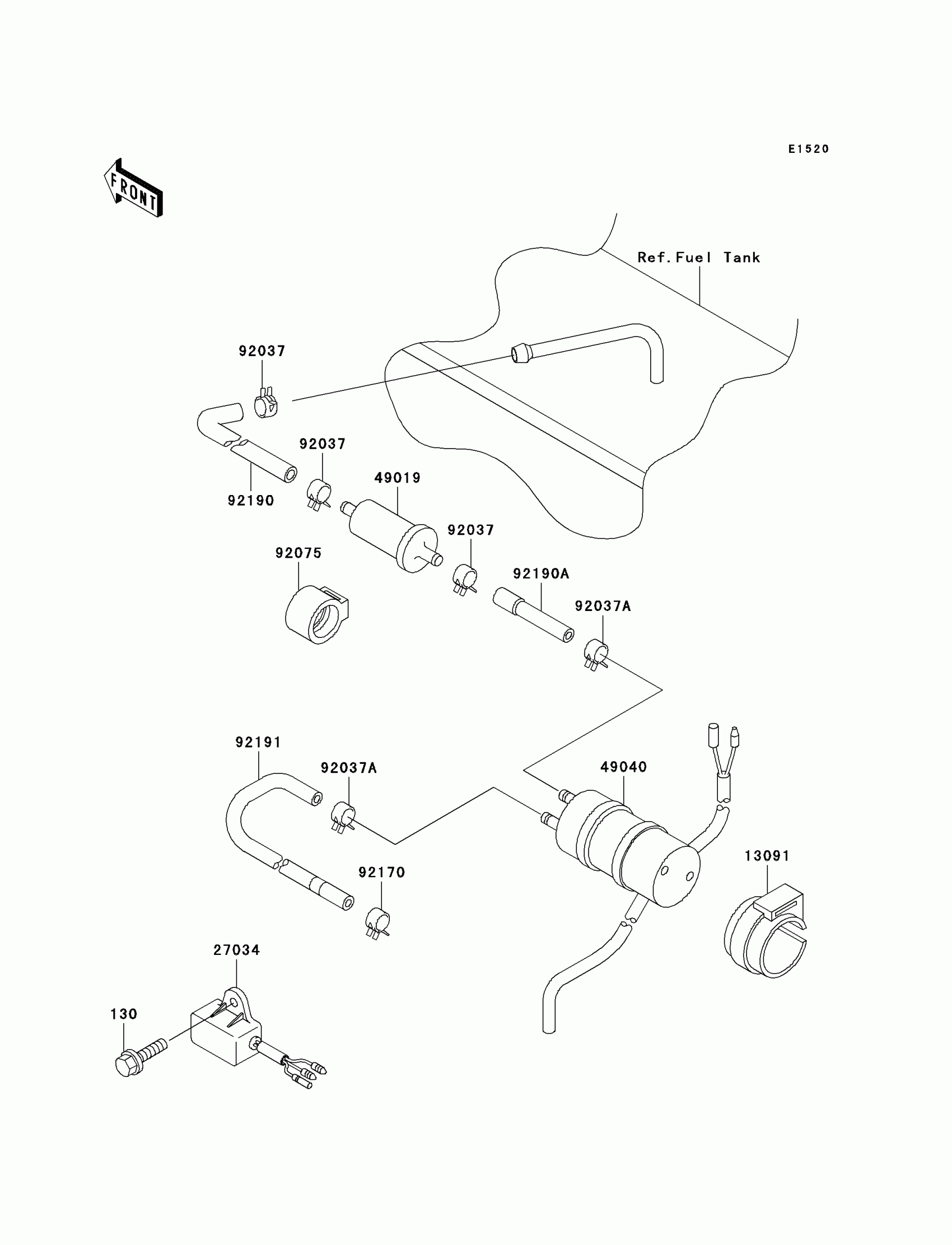

Kawasaki Mule 3000 Fuel Pump Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

13091

HOLDER

13091-1512

$11.94

27034

RELAY,FUEL CUT

27034-1053

$119.79

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-1055

$260.36

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1505

$3.63

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92170

CLAMP

92170-2082

$0.71

92190

TUBE,8X13X370

92190-1325

$9.85

92190A

TUBE,FILTER-PUMP

92190-1437

$5.72

92191

TUBE

92191-1479

$7.28
