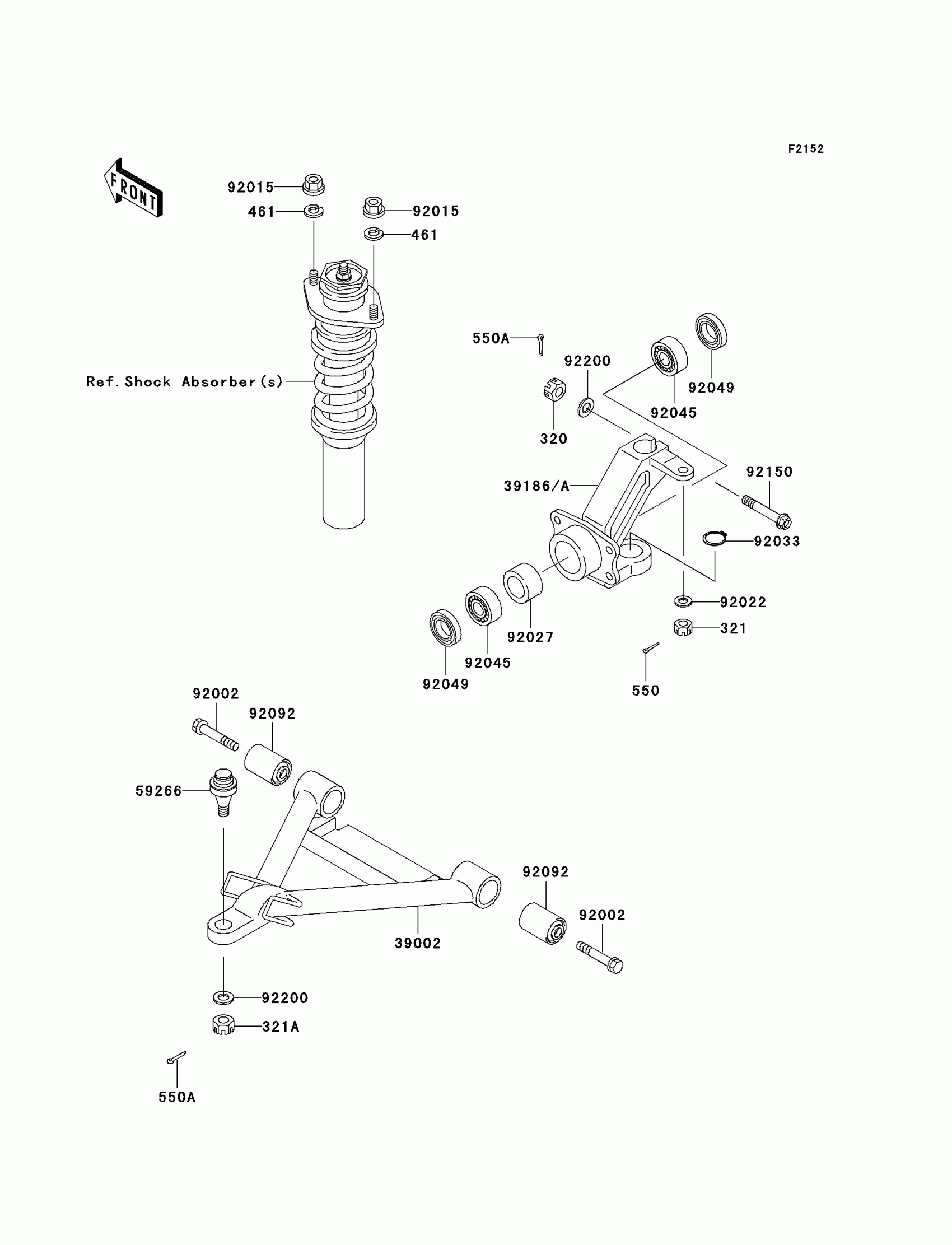

Kawasaki Mule 3000 Front Suspension Diagram

Description

Price

320

NUT-CASTLE

320G1200

Unavailable

321

NUT-CASTLE

321H1000

Unavailable

321A

NUT-CASTLE,12MM

321H1200

Unavailable

461

WASHER-SPRING

461L1000

$0.73

550

PIN-COTTER,2.0X22

550D2022

$2.08

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

39002

ARM-COMP-SUSP

39002-1054

$182.68

39186

KNUCKLE,FR,LH

39186-1096

$315.43

39186A

KNUCKLE,FR,RH

39186-1097

$315.43

59266

JOINT-BALL

59266-1080

$87.41

92002

BOLT,FLANGED,12X75

92002-1661

$10.88

92015

NUT,FLANGED,10MM

92015-1366

$3.97

92022

WASHER,10.5X18X2.5

92022-1876

$3.97

92027

COLLAR,L=34.5

92027-1538

$40.81

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$5.07

92045

BEARING-BALL

92045-3707

$32.24

92049

SEAL-OIL,SD35X47X7HS

92049-1513

$31.30

92092

BUSHING-RUBBER

92092-1065

$11.88

92150

BOLT,FLANGED,12X72

92150-1356

$10.88

92200

WASHER,12.3X23X2.3

92200-1004

$3.72
