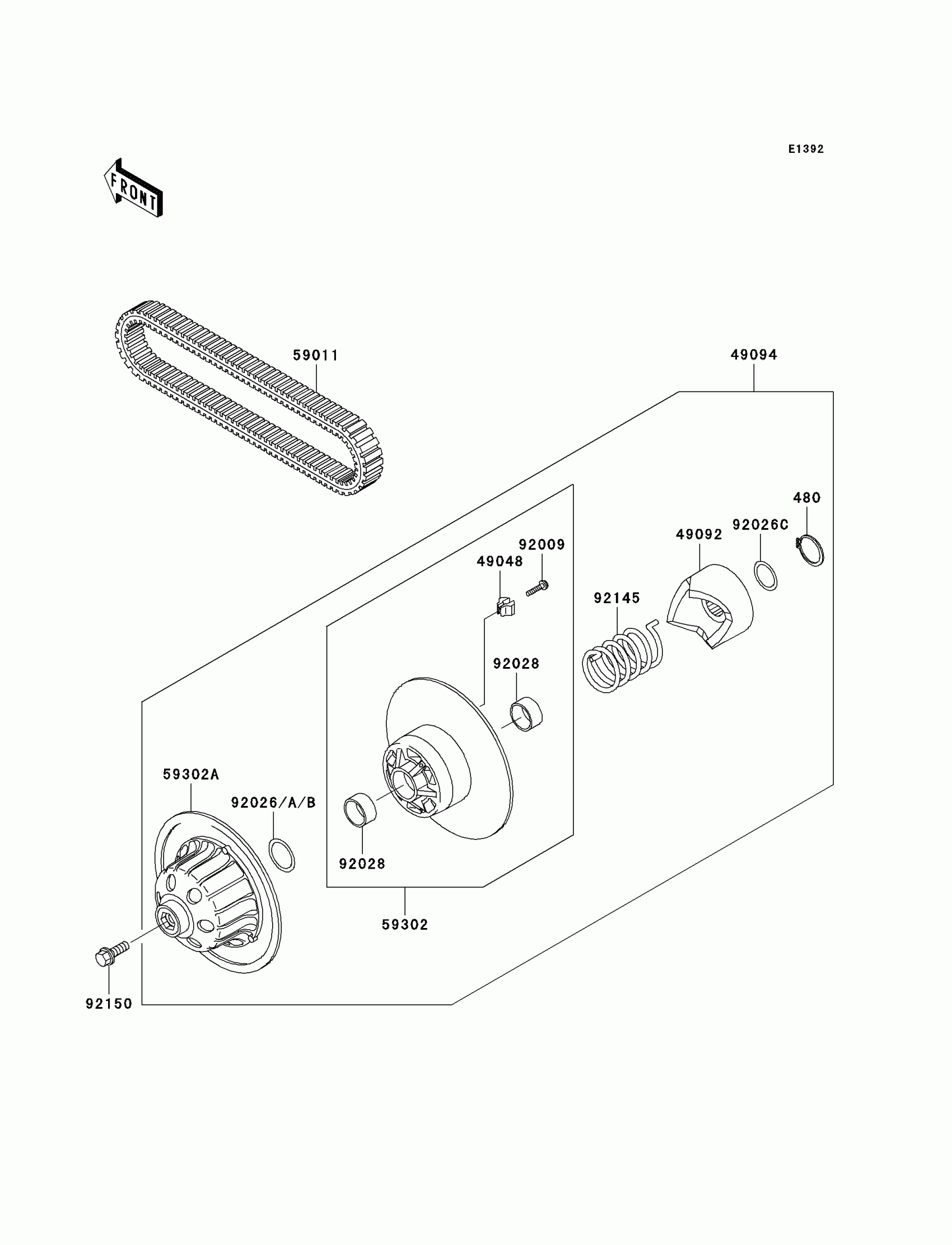

Kawasaki Mule 3000 Driven Converter/Drive Belt Diagram

Description

Price

480

CIRCLIP

480J3400

$1.86

49048

SHOE

49048-1060

$4.93

49092

RAMP

49092-1068

$48.95

49094

CONVERTER-ASSY-DRIVEN

49094-1084

$673.26

59011

BELT,CONVERTER

59011-1077

$120.71

59302

SHEAVE-COMP,MOVABLE

59302-1072

$410.65

59302A

SHEAVE-COMP

59302-1092

Unavailable

92009

SCREW,SHOE

92009-1849

$2.03

92026

SPACER,39X50X0.50

92026-1507

$6.11

92026A

SPACER,39X50X0.60

92026-1508

$6.11

92026B

SPACER,39X50X0.80

92026-1510

$6.11

92026C

SPACER,34X44X0.80

92026-1521

$3.97

92028

BUSHING

92028-1864

$7.07

92145

SPRING

92145-1404

$10.59

92150

BOLT,12X35

92150-1009

$6.11
