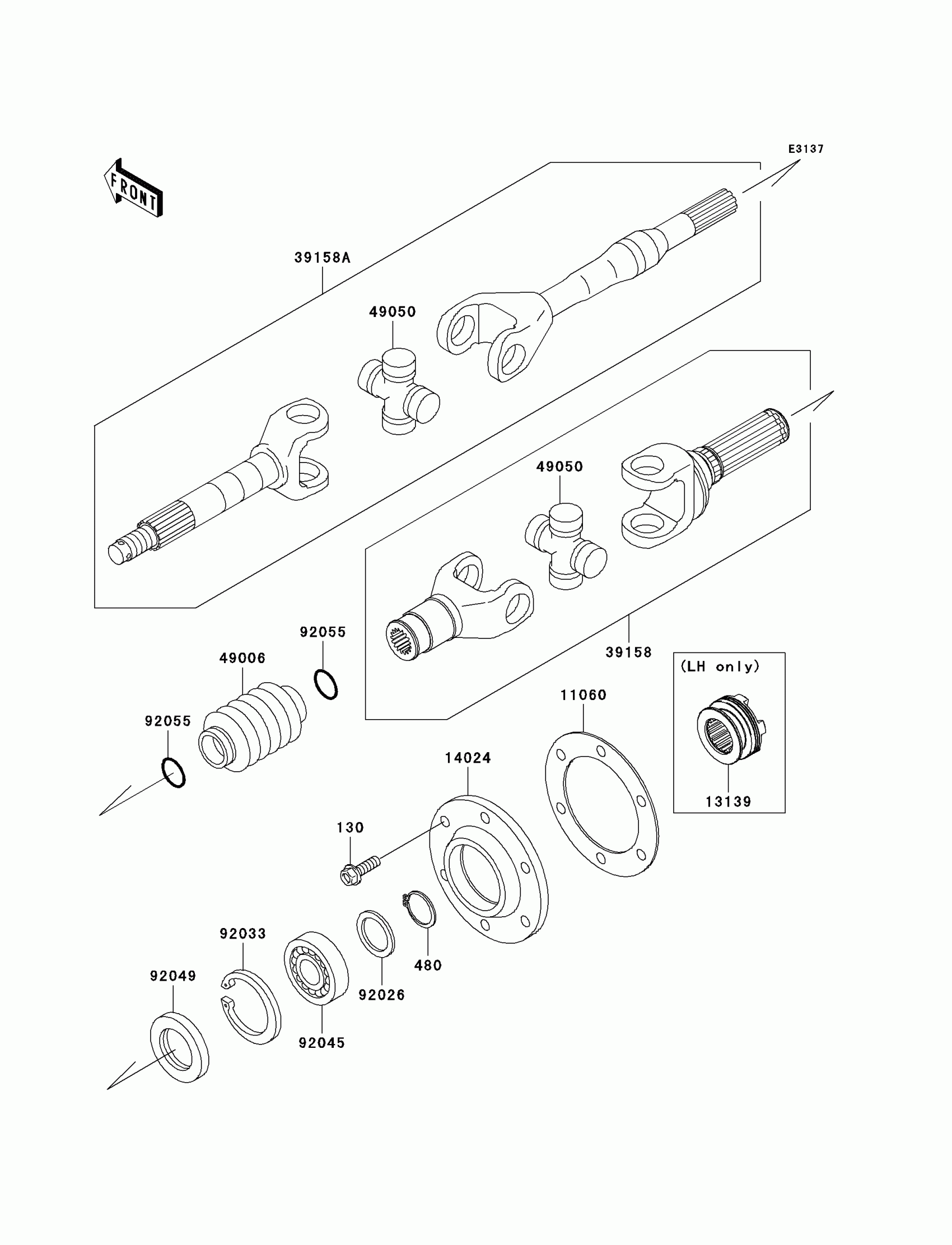

Kawasaki Mule 3000 Drive Shaft-Rear Diagram

Description

Price

130

BOLT-FLANGED,8X25

130BA0825

$2.34

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.73

11060

GASKET,DRIVESHAFT COVER

11060-1251

$10.14

13139

SHIFTER

13139-0009

$92.85

14024

COVER,DRIVESHAFT

14024-1560

$272.82

39158

SHAFT-ASSY-DRIVE,INSIDE

39158-1119

$397.47

39158A

SHAFT-ASSY-DRIVE

39158-1120

$361.16

49006

BOOT,DRIVE SHAFT

49006-1257

$40.06

49050

SPIDER

49050-1060

Unavailable

92026

SPACER,28.1X38X2.6

92026-1489

$3.70

92033

RING-SNAP,55MM

92033-1274

$7.48

92045

BEARING-BALL,6006

92045-1208

$20.53

92049

SEAL-OIL,TC35X55X8

92049-1298

$7.14

92055

RING-O,19.5X3.0

92055-1451

$3.72
