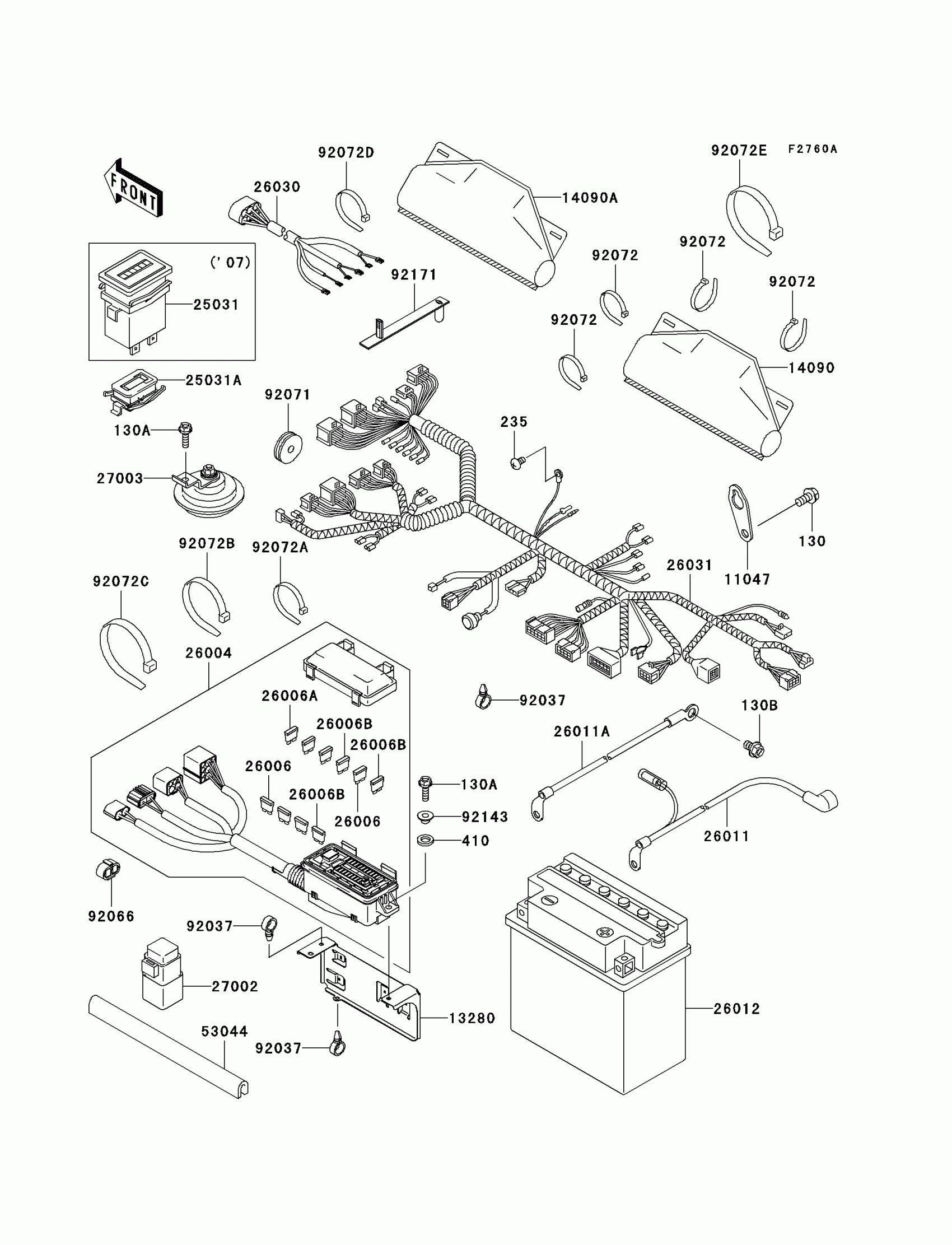

Kawasaki Mule 3000 Chassis Electrical Equipment(G7F/G8F) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

130B

BOLT-FLANGED,8X12

130BB0812

$0.63

235

SCREW-PAN-WP-CROS,6X10

235AA0610

$3.49

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

Unavailable

11047

BRACKET,F.BLACK

11047-2056-9H

$7.80

13280

HOLDER

13280-1220

Unavailable

14090

COVER,COUPLER

14090-1331

$8.31

14090A

COVER,COUPLER

14090-1611

$8.31

25031A

METER-ASSY,AC,AF400/620&RF750

25031-7506

Unavailable

26004

FUSE-ASSY

26004-0004

$355.75

26006

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.71

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(+)

26011-0106

$37.50

26011A

WIRE-LEAD,BATTERY(-)

26011-1787

$15.66

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3728

$150.70

26030

HARNESS

26030-2322

$118.77

26031

HARNESS,MAIN

26031-0435

Unavailable

27002

RELAY-ASSY

27002-1068

$61.26

27003

HORN

27003-1276

$44.93

53044

TRIM

53044-1137

$10.25

92037

CLAMP,HOSE

92037-1827

$5.69

92066

PLUG

92066-1539

$9.31

92071

GROMMET

92071-1136

$7.29

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=202

92072-1195

$1.16

92072C

BAND,L=250

92072-1237

$1.55

92072D

BAND,L=188

92072-1239

$1.30

92072E

BAND,L=368.3

92072-3872

$1.20

92143

COLLAR

92143-1057

$3.81

92171

CLAMP

92171-1365

$3.76
