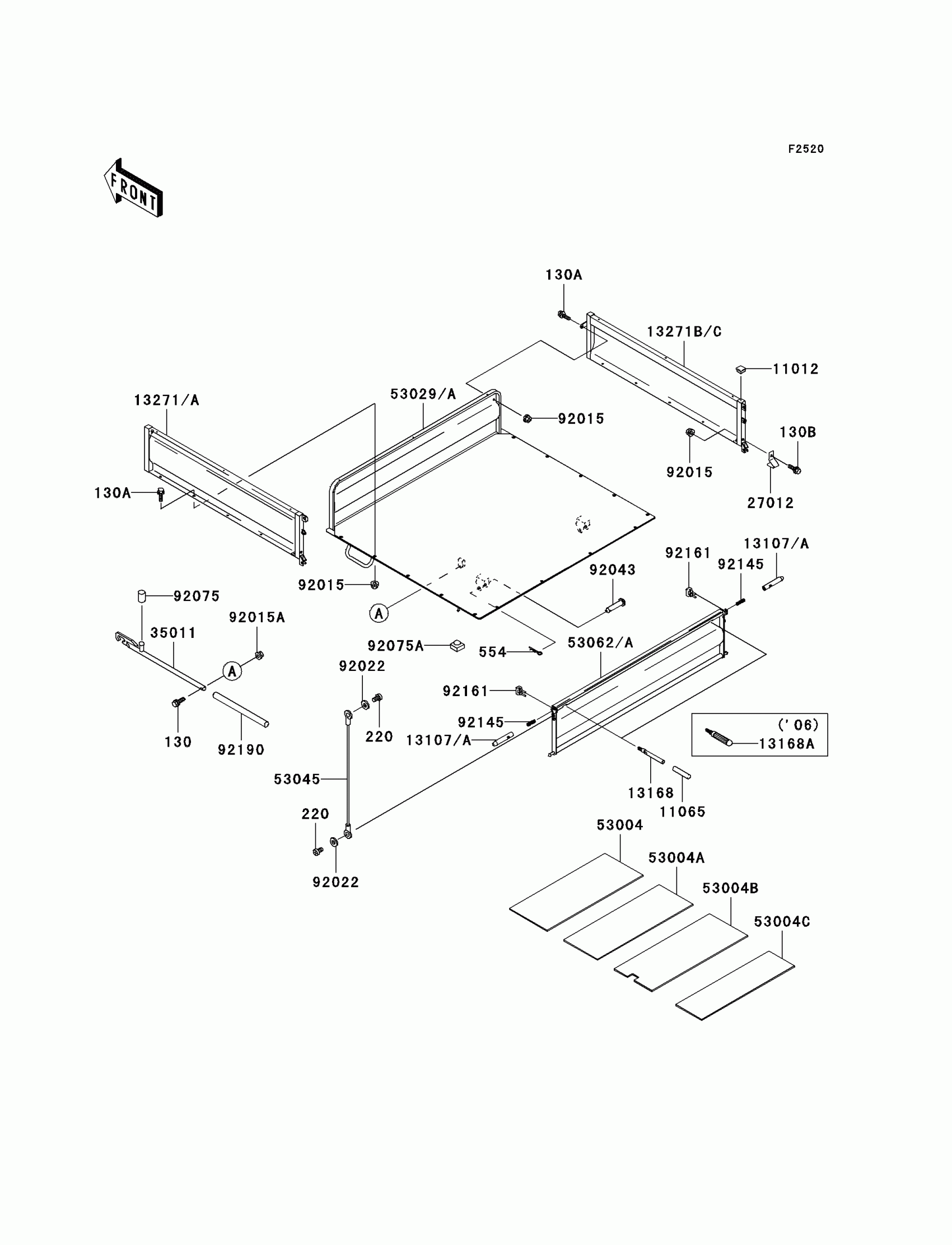

Kawasaki Mule 3000 Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X20

130BB0820

$0.71

130B

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107A

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13271

PLATE,CARRIER,SIDE,LH,W.GREEN

13271-0099-398

Unavailable

13271A

PLATE,CARRIER,SIDE,LH,A.RED

13271-0099-467

$248.83

13271B

PLATE,CARRIER,SIDE,RH,W.GREEN

13271-0100-398

$248.83

13271C

PLATE,CARRIER,SIDE,RH,A.RED

13271-0100-467

$263.22

27012

HOOK,TAIL GATE

27012-0022

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT

53004-1157

$130.17

53004A

MAT

53004-1158

$124.25

53004B

MAT

53004-1159

$118.64

53004C

MAT

53004-1160

$109.29

53029

CARRIER,W.GREEN

53029-0020-398

$1,153.76

53029A

CARRIER,A.RED

53029-0020-467

$1,086.27

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062

GATE-TAIL,W.GREEN

53062-0001-398

$424.62

53062A

GATE-TAIL,A.RED

53062-0001-467

$453.29

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92190

TUBE,13X16X200

92190-1401

$4.63
