2007 Kawasaki Mule 2520 Turf Master Cylinder Diagram

← All diagrams

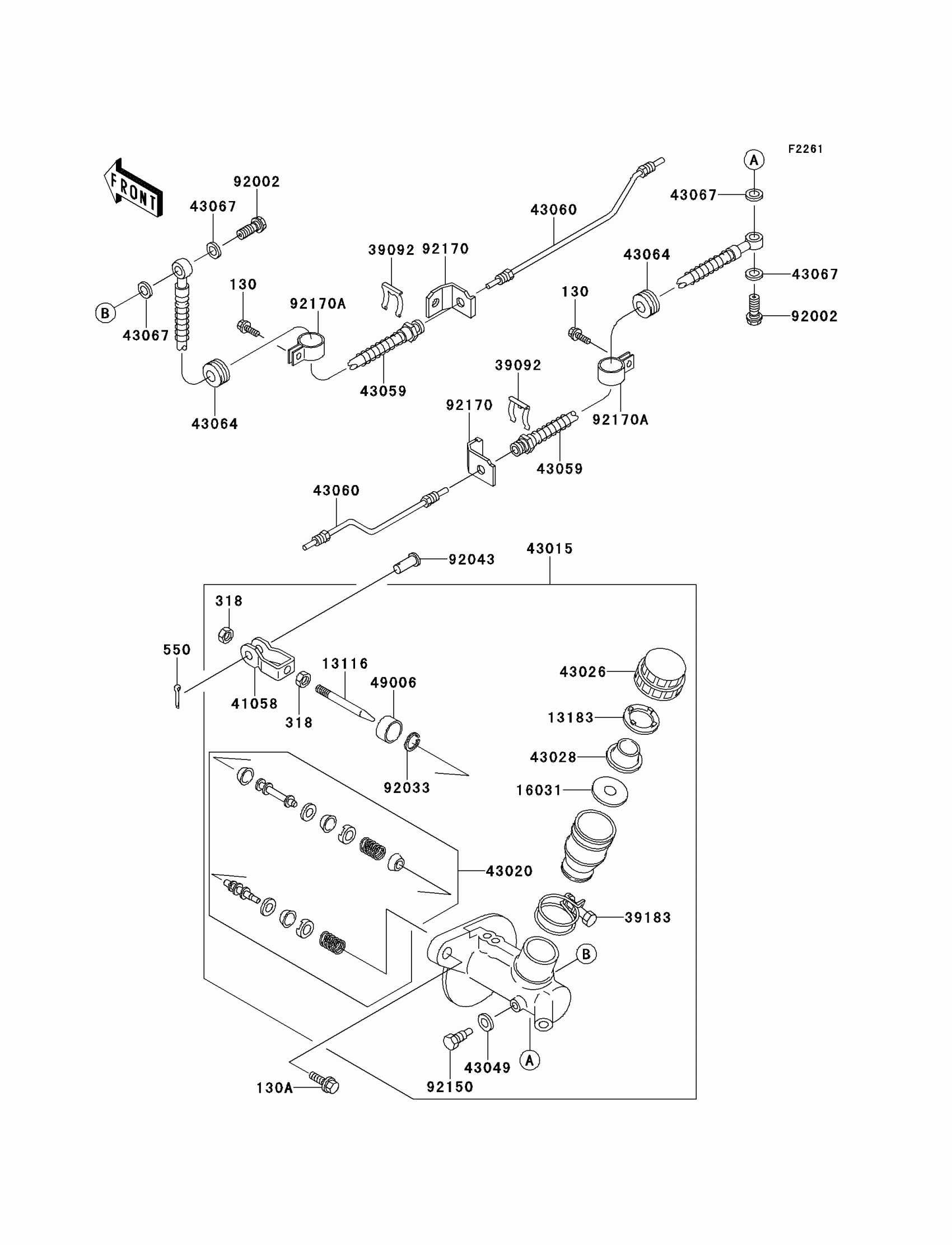

Find the part on the Master Cylinder diagram for your 2007 Kawasaki Mule 2520 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 2520 Turf Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0610

1
Out of stock

130A

BOLT-FLANGED

130D0820

1
Out of stock

318

NUT-HEX-SMALL

318H0800

1
Out of stock

550

1

$0.61

In stock

13116

ROD-PUSH

13116-1134

1

$34.29

In stock

13183

PLATE

13183-1306

1

$3.92

In stock

16031

FLOAT

16031-1069

1

$7.47

In stock

39092

PIN-HAIR

39092-1052

1

$6.33

In stock

39183

BAND-ASSY

39183-1055

1

$10.63

In stock

41058

RODEND-BRAKE

41058-1053

1

$18.78

In stock

43015

1

$321.02

In stock

43020

PISTON-COMP-BRAKE

43020-1081

1

$71.87

In stock

43026

CAP-BRAKE

43026-1067

1

$25.24

In stock

43028

DIAPHRAGM

43028-1078

1

$12.55

In stock

43049

PACKING

43049-1065

1

$2.25

In stock

43059

HOSE-BRAKE,FR

43059-1489

1
Out of stock

43060

PIPE-BRAKE,FR

43060-1082

1

$22.74

In stock

43064

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

49006

BOOT

49006-1245

1

$7.47

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92033

RING-SNAP

92033-1255

1

$3.14

In stock

92043

PIN

92043-1039

1

$7.86

In stock

92150

BOLT,STOP

92150-1165

1

$3.15

In stock

92170

CLAMP,BRAKE PIPE

92170-1093

1

$7.24

In stock

92170A

CLAMP,HOSE

92170-1173

1

$8.20

In stock
