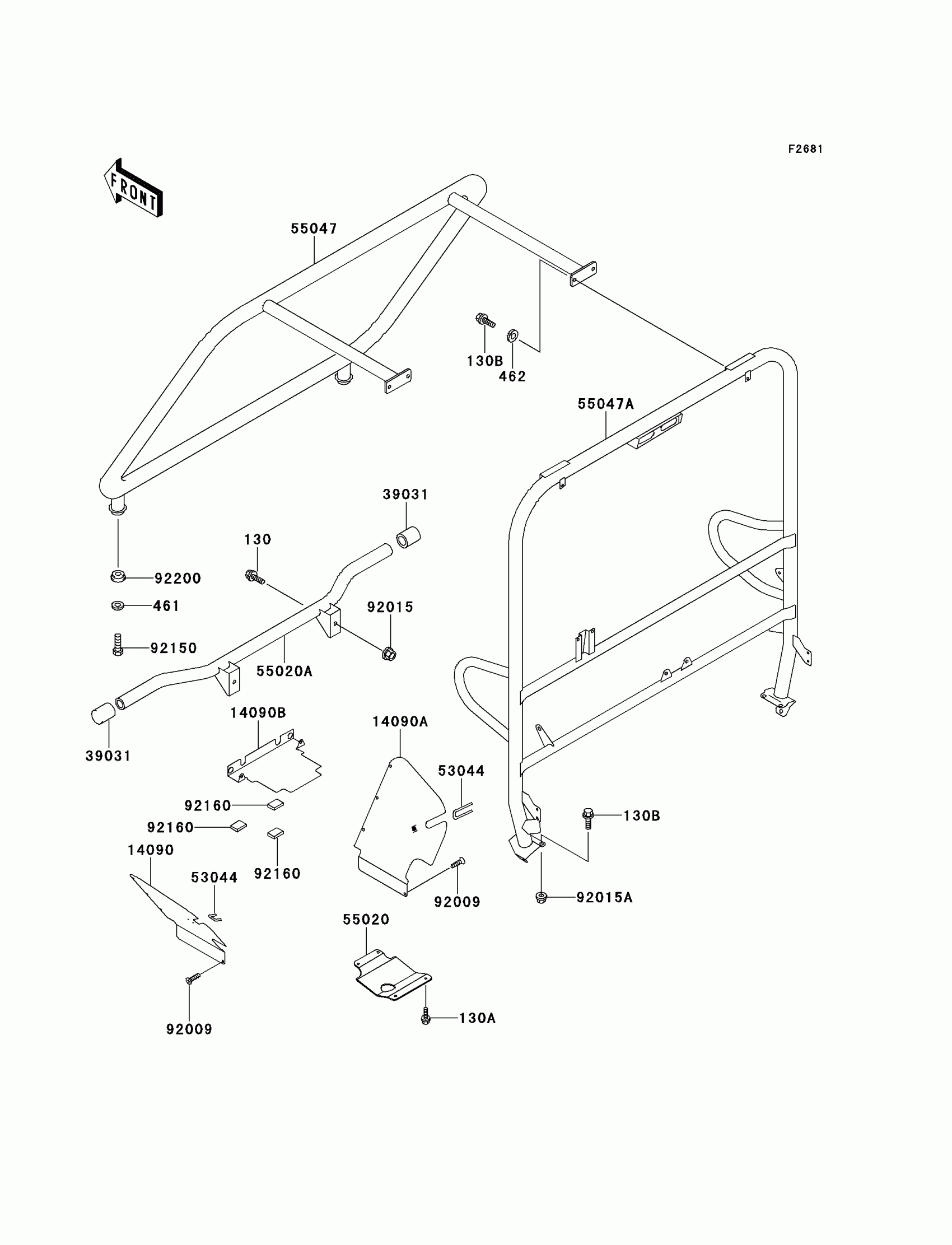

Kawasaki Mule 2520 Turf Guards/Cab Frame Diagram

Description

Price

130

BOLT-FLANGED

130G1225

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,10X20

130J1020

Unavailable

461

WASHER-SPRING,20MM

461F2000

Unavailable

462

WASHER-SPRING,10MM

462K1000

Unavailable

14090

COVER,FR,LH

14090-1323

Unavailable

14090A

COVER,FR,RH

14090-1324

$72.02

14090B

COVER,FR,LWR

14090-1325

Unavailable

39031

CAP-END,BUMPER PIPE

39031-1059

$9.55

53044

TRIM

53044-1137

$10.65

55020

GUARD,GEAR CASE

55020-1449

Unavailable

55020A

GUARD,FRONT BUMPER

55020-1471

$241.87

55047

BAR-COMP,CAB FRAME,FR

55047-1004

$477.61

55047A

BAR-COMP,CAB FRAME,RR

55047-1008

$631.83

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92015A

NUT,FLANGED,10MM

92015-1366

$3.76

92150

BOLT,20X35

92150-1325

$10.29

92160

DAMPER

92160-1102

$1.49

92200

WASHER

92200-1032

$7.44
