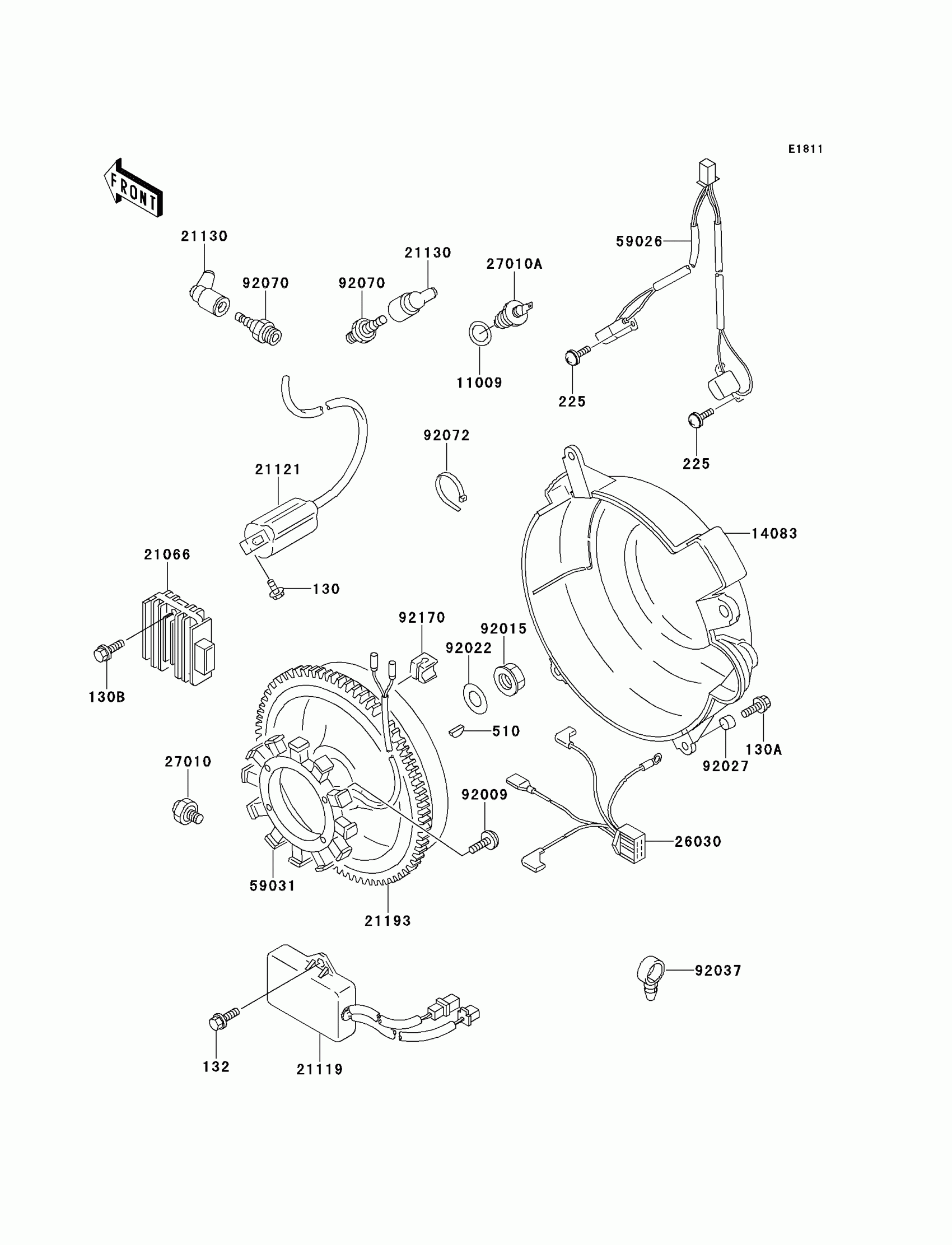

Kawasaki Mule 2520 Turf Generator/Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED,5X20

130B0520

Unavailable

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

130B

BOLT-FLANGED

130J0620

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

225

SCREW-PAN-WSP-CROS

225B0414

Unavailable

510

WOODRUFF KEY

510A5100

$1.87

11009

GASKET

11009-2766

$1.20

14083

COVER-FLYWHEEL

14083-2052

Unavailable

21066

REGULATOR-VOLTAGE

21066-2056

$116.66

21119

IGNITER

21119-2157

$305.50

21121

COIL-IGNITION

21121-2083

$63.60

21130

CAP-SPARK PLUG

21130-2060

$8.07

21193

FLYWHEEL-ASSY

21193-2149

Unavailable

26030

HARNESS

26030-2140

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

27010A

SWITCH,TEMP

27010-2182

$29.83

59026

COIL-PULSING

59026-2062

Unavailable

59031

COIL-CHARGING

59031-2103

$306.03

92009

SCREW,6X25

92009-2273

$0.79

92015

NUT

92015-2167

$5.56

92022

WASHER

92022-2245

Unavailable

92027

COLLAR,6.2X7.8X5

92027-2096

$0.48

92037

CLAMP,HOSE

92037-1827

$5.69

92070

PLUG-SPARK,BMR2A(NGK)

92070-2100

$3.33

92072

BAND,L=250

92072-1237

$1.55

92170

CLAMP

92170-2056

$2.42
