2007 Kawasaki Mule 2510 Diesel Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2007 Kawasaki Mule 2510 Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

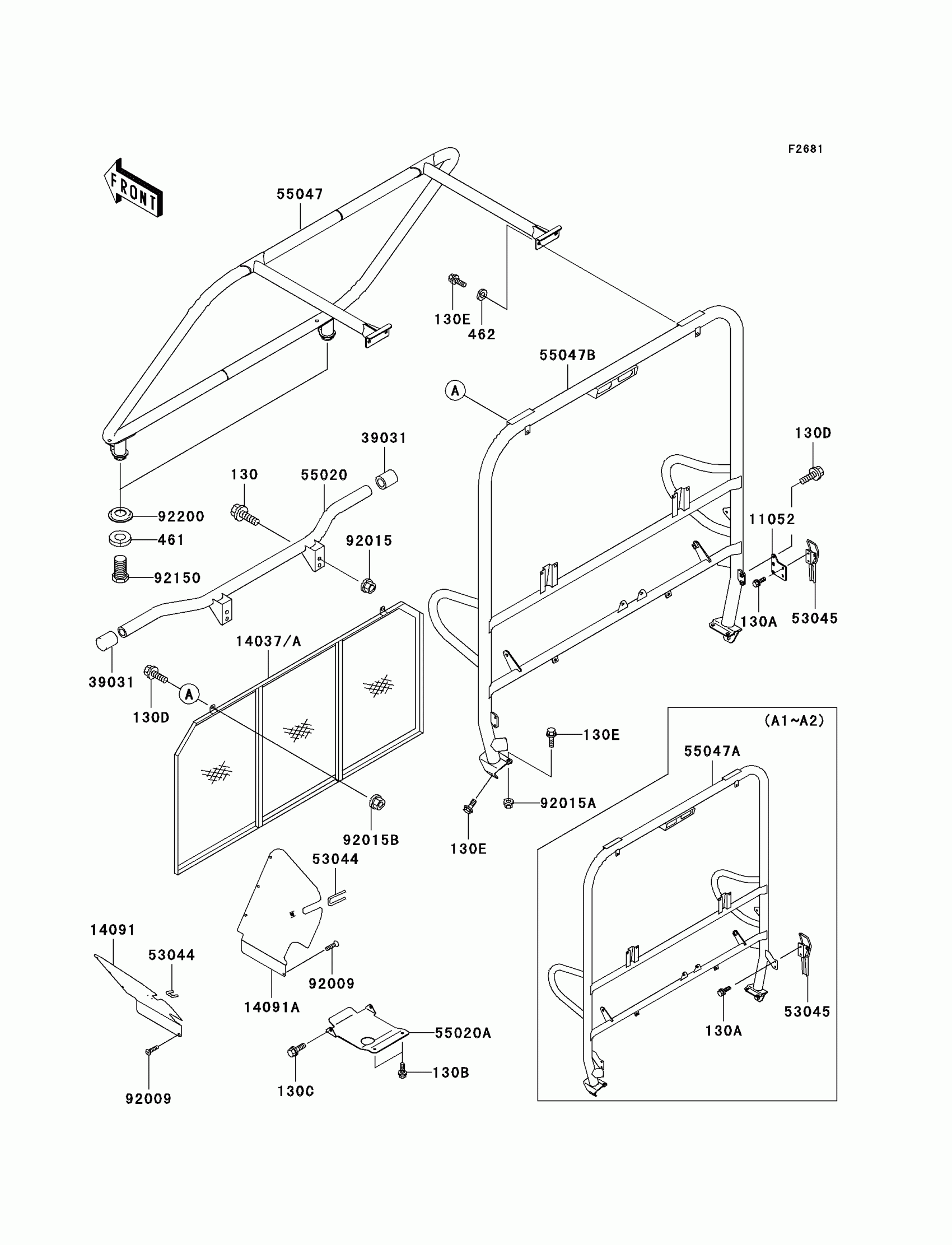

2007 Kawasaki Mule 2510 Diesel Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130G1225

1
Out of stock

130A

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130B

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130C

BOLT-FLANGED,8X14

130J0814

1
Out of stock

130D

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130E

BOLT-FLANGED,10X20

130J1020

1
Out of stock

461

WASHER-SPRING,20MM

461F2000

1
Out of stock

462

WASHER-SPRING,10MM

462K1000

1
Out of stock

14037

SCREEN,REAR GUARD

14037-1265

1

$199.94

In stock

14091

COVER,FR,LH

14091-1142

1
Out of stock

14091A

COVER,FR,RH

14091-1143

1
Out of stock

39031

CAP-END,BUMPER PIPE

39031-1059

1

$7.58

In stock

53044

TRIM

53044-1137

1

$10.25

In stock

53045

HOOK-ASSY

53045-1063

1

$21.73

In stock

55020

GUARD,FRONT BUMPER

55020-1471

1
Out of stock

55020A

GUARD,GEAR CASE

55020-1692

1
Out of stock

55047

BAR-COMP,CAB FRAME,FR

55047-1004

1
Out of stock

55047A

BAR-COMP,CAB FRAME,RR

55047-1011

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1366

1
Out of stock

92015B

NUT,FLANGED,LOCK,8MM

92015-1696

1
Out of stock

92150

BOLT,20X35

92150-1325

1
Out of stock

92200

WASHER

92200-1032

1
Out of stock
