2007 Kawasaki Mule 2510 4X4 Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

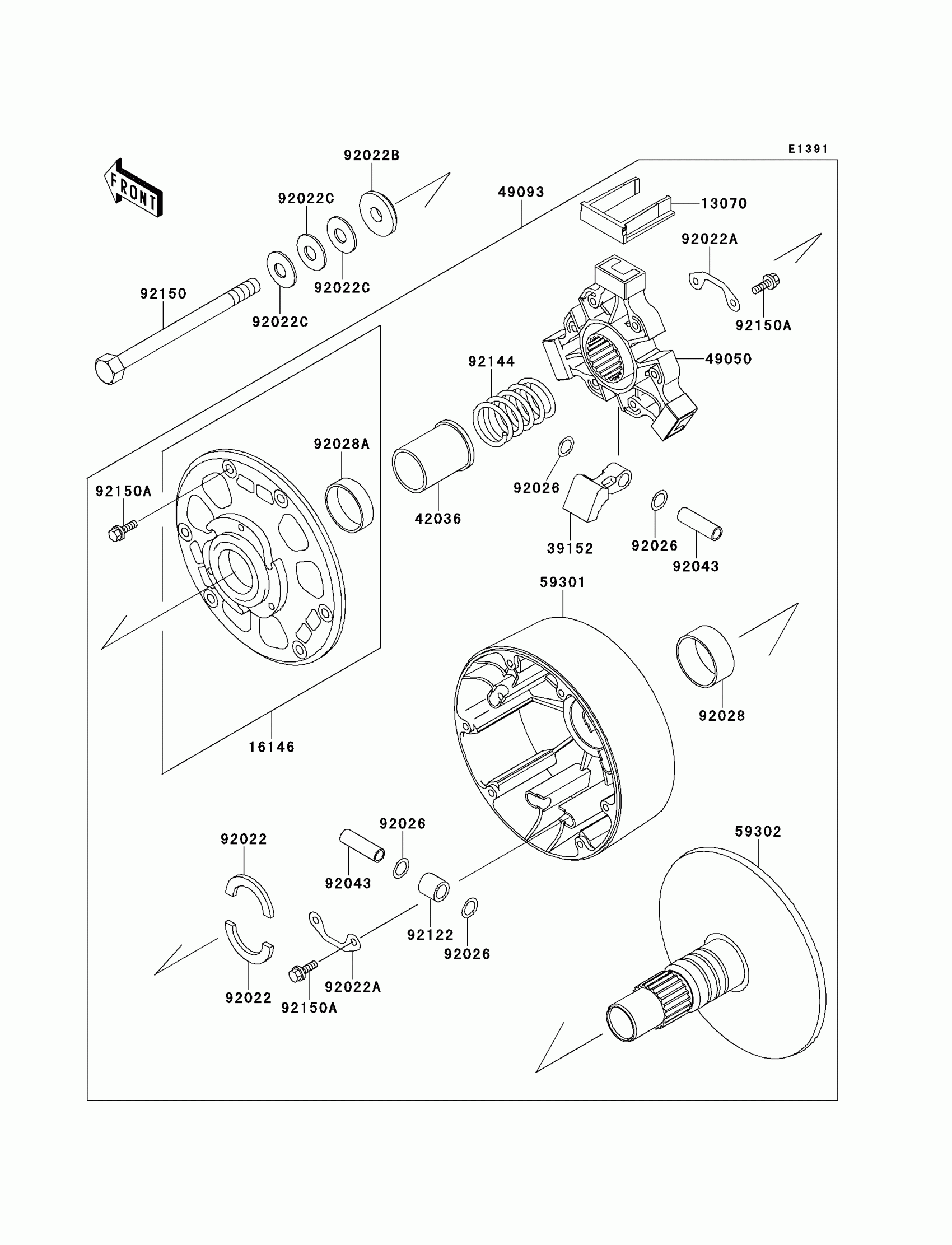

2007 Kawasaki Mule 2510 4X4 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE

13070-1185

1
Out of stock

16146

COVER-ASSY

16146-1088

1
Out of stock

39152

WEIGHT-RAMP

39152-1051

1

$61.29

In stock

42036

SLEEVE

42036-1221

1
Out of stock

49050

SPIDER

49050-1053

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-1052

1
Out of stock

59301

SHEAVE-MOVABLE

59301-1058

1
Out of stock

59302

SHEAVE-COMP

59302-1055

1
Out of stock

92022

WASHER,SPLIT

92022-1897

1
Out of stock

92022A

WASHER

92022-1899

1
Out of stock

92022B

WASHER,SLEEVE

92022-1900

1
Out of stock

92022C

WASHER,SPECIAL CONICAL

92022-1901

1
Out of stock

92026

SPACER,10X16X0.8

92026-1304

1
Out of stock

92028

BUSHING,43X47X20

92028-1508

1
Out of stock

92028A

BUSHING,40X44X12

92028-1511

1
Out of stock

92043

PIN,6.5X10X38

92043-1370

1
Out of stock

92122

ROLLER

92122-1152

1
Out of stock

92144

SPRING,DRIVE

92144-1196

1
Out of stock

92150

BOLT,12X163.5

92150-1008

1
Out of stock

92150A

BOLT,6X20

92150-1014

1
Out of stock
