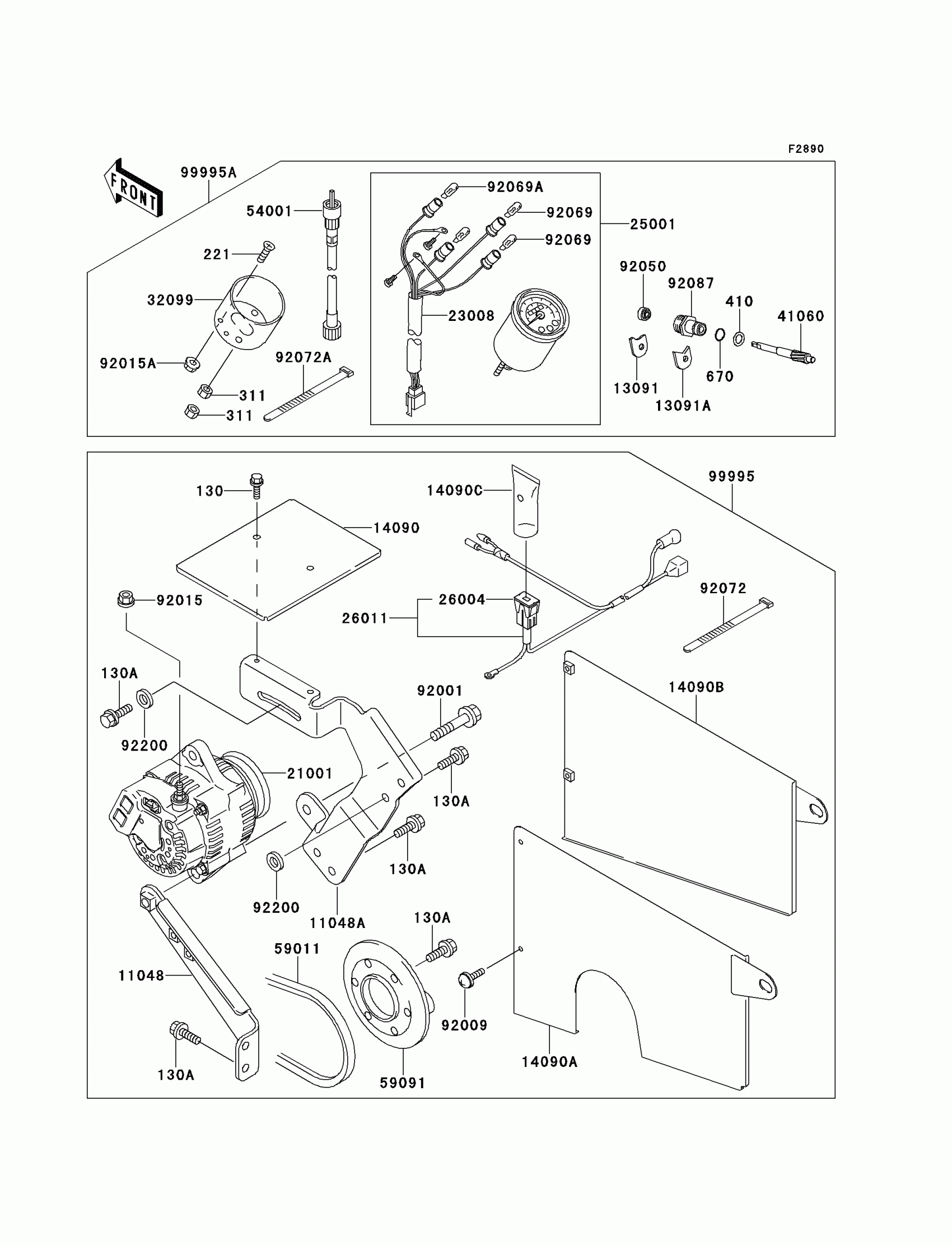

Kawasaki Mule 2500 Optional Parts(Generator&Meter) Diagram

#

Description
Price

130

BOLT-FLANGED

130C0608

Unavailable

130A

BOLT-FLANGED,8X20

130H0820

Unavailable

221

SCREW-CSK-CROS

221C0520

$3.24

311

NUT-HEX

311B0500

$0.51

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

670

O RING,10MM

670D1510

$3.72

11048

BRACKET,ENGINE,LWR

11048-1243

$190.20

11048A

BRACKET,GENERATOR

11048-1244

$392.20

13091

HOLDER,TACHOMETER2.3T

13091-1008

$3.81

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$3.39

14090

COVER,GENERATOR

14090-1347

$50.79

14090A

COVER,ENCLOSURE,LH

14090-1354

$58.06

14090B

COVER,ENCLOSURE,RH

14090-1355

$58.06

14090C

COVER,FUSE

14090-1362

$17.92

21001

GENERATOR

21001-1129

$837.52

23008

SOCKET-ASSY,METER

23008-1355

Unavailable

25001

METER-ASSY,MPH

25001-1706

$272.55

26004

FUSE-ASSY,50A

26004-1096

$4.29

26011

WIRE-LEAD,GENERATOR

26011-1586

$92.59

32099

CASE,SPEEDOMETER

32099-1145

Unavailable

41060

GEAR-METER SCREW

41060-1148

$60.75

54001

CABLE-SPEEDOMETER

54001-1135

$48.92

59011

BELT

59011-2056

$19.44

59091

PULLEY

59091-2053

$58.51

92001

BOLT,BLACK,10X47

92001-1522

$5.42

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,LOCK,FLANGED,5MM

92015-1752

$3.43

92050

SEAL-OIL

92050-075

$9.03

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92069A

BULB,12V 1.7W,T10

92069-1059

$3.94

92072

BAND,L=123

92072-030

$3.97

92072A

BAND,L=140

92072-1293

$5.61

92087

GUIDE,TACHOMETER GEAR

92087-010

$22.76

92200

WASHER,8.5X20X2.3

92200-1055

$3.56

99995

KIT.,ALTERNATOR

99995-1289

$619.38

99995A

KIT.,SPEEDOMETER

99995-1298

$60.83
