2007 Kawasaki Mule 2500 Front Hubs/brakes Diagram

← All diagrams

Find the part on the Front Hubs/brakes diagram for your 2007 Kawasaki Mule 2500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

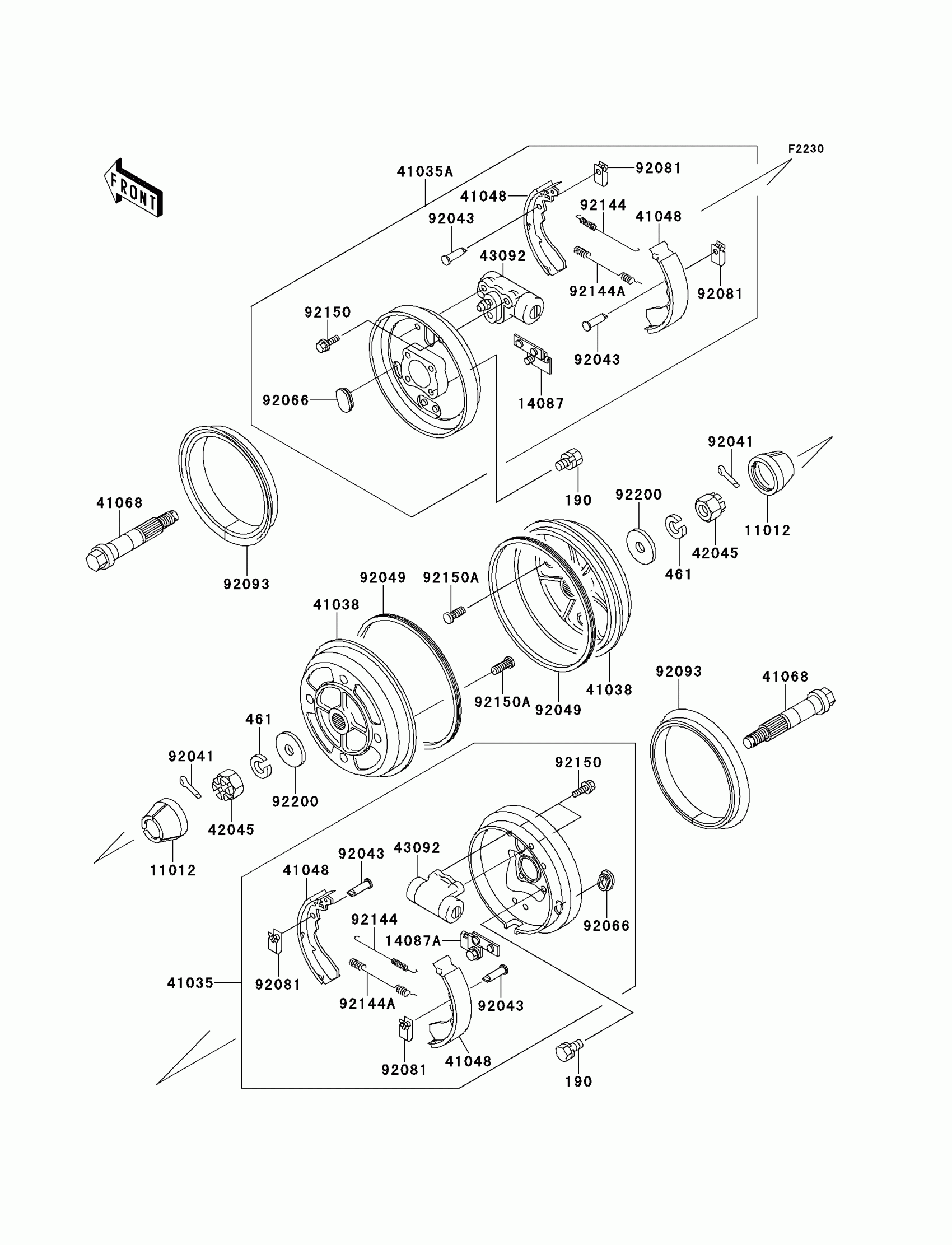

2007 Kawasaki Mule 2500 Front Hubs/brakes Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

190

BOLT-UPSET-WS,10X16

190H1016

1
Out of stock

461

WASHER-SPRING,18MM

461F1800

1
Out of stock

11012

CAP,WHEEL

11012-1969

1

$4.47

In stock

14087

RETAINER-ASSY,RH

14087-1001

1

$23.00

In stock

14087A

RETAINER-ASSY,LH

14087-1002

1

$23.00

In stock

41035

1

$439.14

In stock

41035A

1

$439.14

In stock

41038

DRUM,FRONT BRAKE

41038-1227

1

$358.62

In stock

41048

SHOE-BRAKE

41048-1077

1

$26.63

In stock

41068

AXLE,FR

41068-1296

1

$142.37

In stock

42045

NUT,CASTLE,18MM

42045-018

1

$7.31

In stock

43092

1

$146.55

In stock

92041

COTTER,4.0X35

92041-1053

1

$3.12

In stock

92043

PIN,TENSION

92043-1398

1

$3.86

In stock

92049

SEAL-OIL,ODC-205 194 8-1NS

92049-1299

1
Out of stock

92066

PLUG

92066-1309

1

$4.58

In stock

92081

SPRING,SHOE CLAMP

92081-1904

1

$6.39

In stock

92093

SEAL

92093-1357

1

$22.91

In stock

92144

SPRING,BRAKE

92144-1300

1

$6.59

In stock

92144A

SPRING,BRAKE

92144-1301

1

$6.59

In stock

92150

BOLT,FLANGED,6X12

92150-1166

1

$3.49

In stock

92150A

BOLT

92150-1366

1

$6.41

In stock

92200

WASHER,18.5X52X4.5

92200-1139

1
Out of stock
