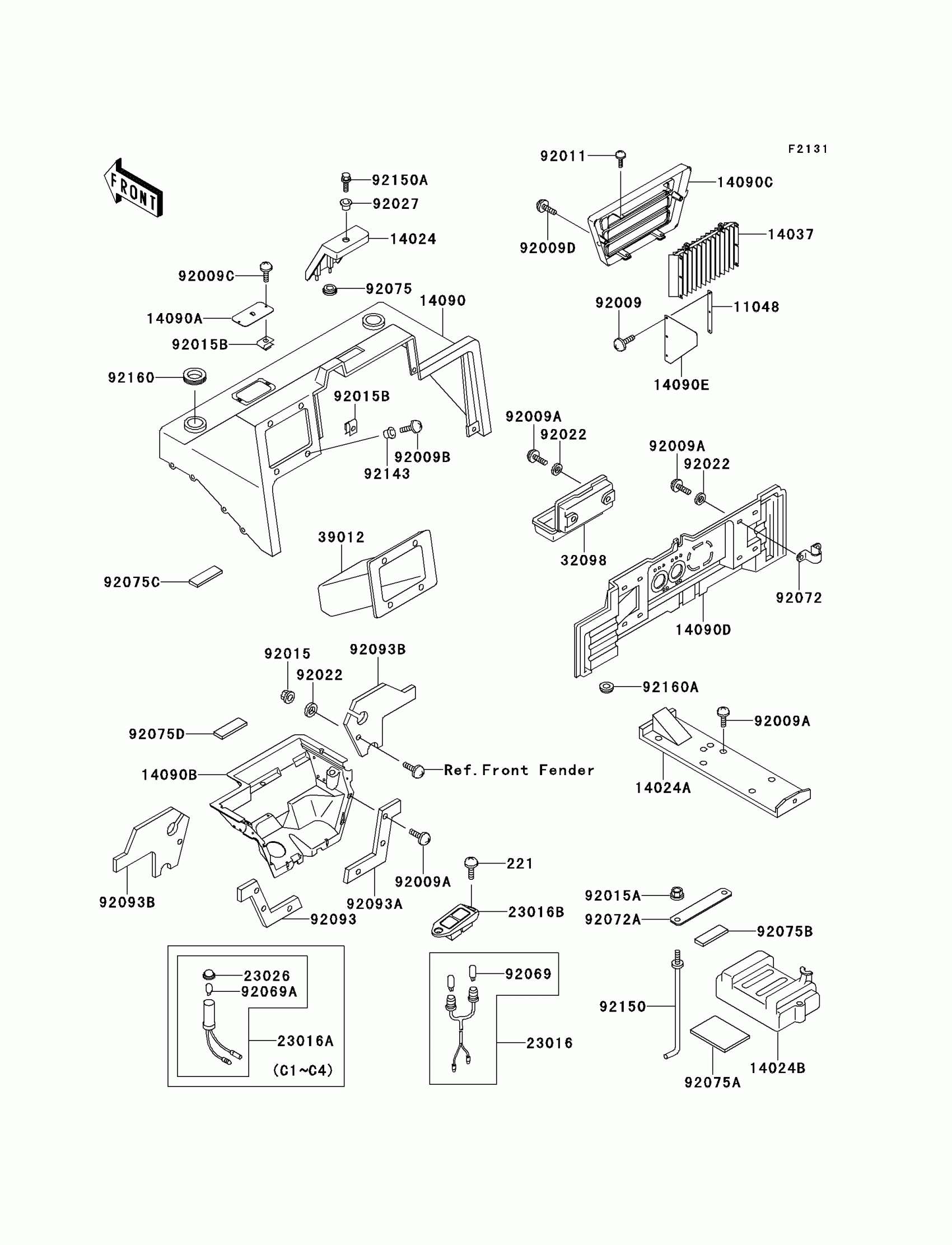

Kawasaki Mule 2500 Frame Fittings Diagram

#

Description
Price

11048

BRACKET,SCREEN

11048-1085

$21.44

14024

COVER,MAINTENANCE,F.RED

14024-1788-6L

$75.33

14024A

COVER,FLOOR,CNT

14024-1791

Unavailable

14024B

COVER,BATTERY

14024-1792

$44.38

14037

SCREEN

14037-1177

Unavailable

14090

COVER,UPP,F.RED

14090-1240-6L

$467.59

14090A

COVER,RADIATOR CAP,F.RED

14090-1241-B1

Unavailable

14090B

COVER,LWR

14090-1242

Unavailable

14090C

COVER,FRONT GRILL,F.RED

14090-1243-6L

Unavailable

14090D

COVER,SEAT UNDER

14090-1247

Unavailable

14090E

COVER,SCREEN

14090-1326

$11.32

23016A

LAMP-ASSY,TEMP

23016-1128

$55.66

23026

LENS,TEMP LAMP

23026-1157

$3.88

32098

CASE-TOOL

32098-1052

$34.00

39012

CASE-STORAGE

39012-1053

$76.26

92009

SCREW,6X18

92009-1111

$3.80

92009A

SCREW,TAPPING,6X16

92009-1166

$4.18

92009B

SCREW,6X18,BLACK

92009-1181

$1.98

92009C

SCREW,6X14

92009-1288

$2.99

92009D

SCREW,6X55

92009-1353

$5.10

92011

SCREW

92011-562

$1.23

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92015B

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92027

COLLAR,L=14.1

92027-1920

$5.12

92069A

BULB,12V 1.7W,T10

92069-1059

$3.78

92072

BAND

92072-1252

$11.41

92072A

BAND,BATTERY

92072-1255

$4.05

92075

DAMPER

92075-1067

$3.57

92075A

DAMPER

92075-1076

$6.75

92075B

DAMPER

92075-1214

$3.92

92075C

DAMPER,AIR FILTER COV

92075-1658

$4.31

92075D

DAMPER,BATTERY BAND

92075-1903

$4.92

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093A

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92093B

SEAL,LOWER COVER

92093-1295

$21.14

92143

COLLAR

92143-1087

$2.98

92150

BOLT,BATTERY

92150-1293

$8.10

92150A

BOLT,6X25

92150-1360

Unavailable

92160

DAMPER

92160-1142

$9.39

92160A

DAMPER

92160-1148

$4.08
