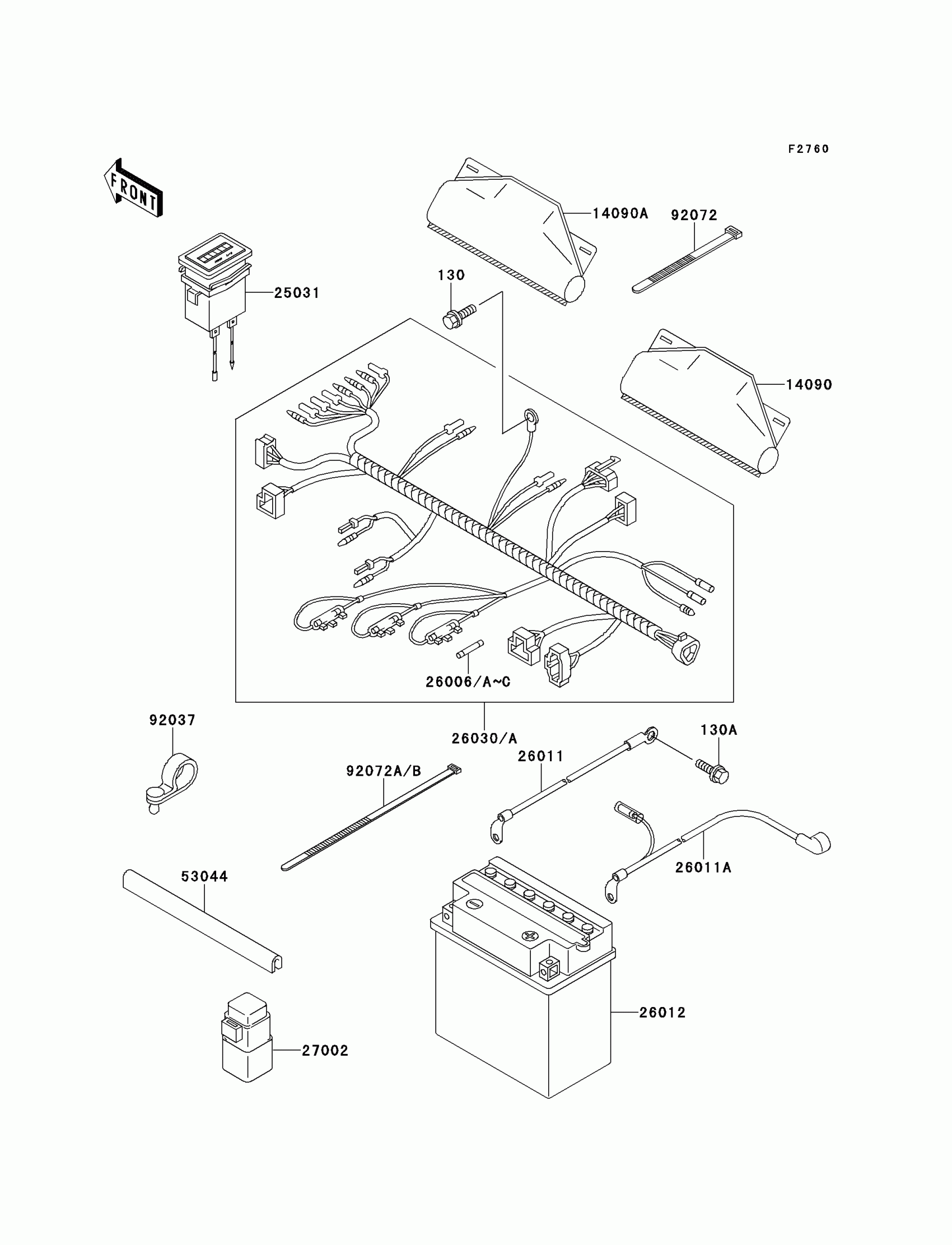

Kawasaki Mule 2500 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

14090

COVER,COUPLER

14090-1331

$8.31

14090A

COVER,COUPLER

14090-1611

$8.31

26006

FUSE,8A,L=30

26006-1062

$4.68

26006A

FUSE,5A,L=32

26006-1063

$7.32

26006B

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26006C

FUSE,30A,L=32

26006-1065

$3.78

26011

WIRE-LEAD,BATTERY(-)

26011-1444

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1551

Unavailable

26012

BATTERY,YB16CL-B,12V 19AH

26012-1242

$126.40

26030

HARNESS,MAIN

26030-1161

Unavailable

27002

RELAY-ASSY

27002-1068

$61.26

53044

TRIM

53044-1137

$10.25

92037

CLAMP,HOSE

92037-1827

$5.69

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=365

92072-1197

$7.71

92072B

BAND,L=188

92072-1239

$1.30
