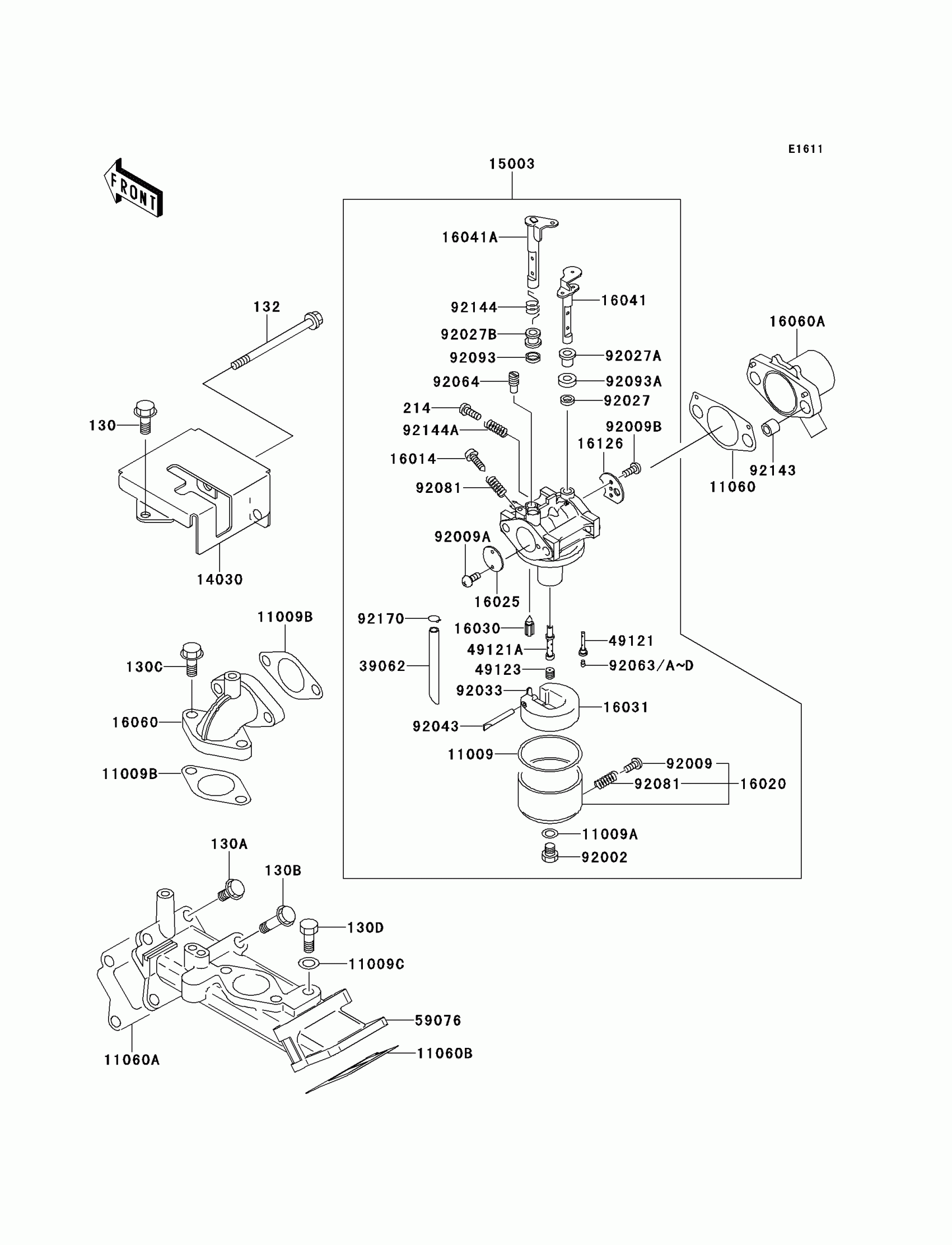

2007 Kawasaki Mule 2500 Carburetor Diagram
Find the part on the Carburetor diagram for your 2007 Kawasaki Mule 2500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009A
GASKET
11009-2087
11009B
GASKET
11009-2944
14030
COVER-CARBURETOR,F.BLACK
14030-2058-9H
15003
CARBURETOR-ASSY.
15003-2260
16041
SHAFT-CARBURETOR
16041-2220
16060
PIPE-INTAKE
16060-2175
16060A
PIPE-INTAKE
16060-2176
16126
VALVE,CHOKE
16126-2193
92002
BOLT,MAIN JET
92002-2009
92009
SCREW,DRAIN
92009-2015
92009A
SCREW,THROTTLE VALVE
92009-2080
92009B
SCREW,CHOKE VALVE
92009-2081
92063
JET-MAIN #115
92063-141
92063A
JET-MAIN,#112.5
92063-2010
92063B
JET-MAIN,#110
92063-2099
92063C
JET-MAIN,#107.5
92063-2100
130
BOLT-FLANGED,6X10
130B0610
130A
BOLT,FLANGED,6X20
130B0620
130B
BOLT-FLANGED,6X45
130B0645
130C
BOLT-FLANGED,8X20
130B0820
130D
BOLT-FLANGED,8X12,BLACK
130C0812
132
BOLT-FLANGED-SMALL
132J0880
214
SCREW-PAN+-
214B0414
92063D
JET-MAIN,#105
92063-2142
92064
JET-PILOT
92064-2001
