Partiron

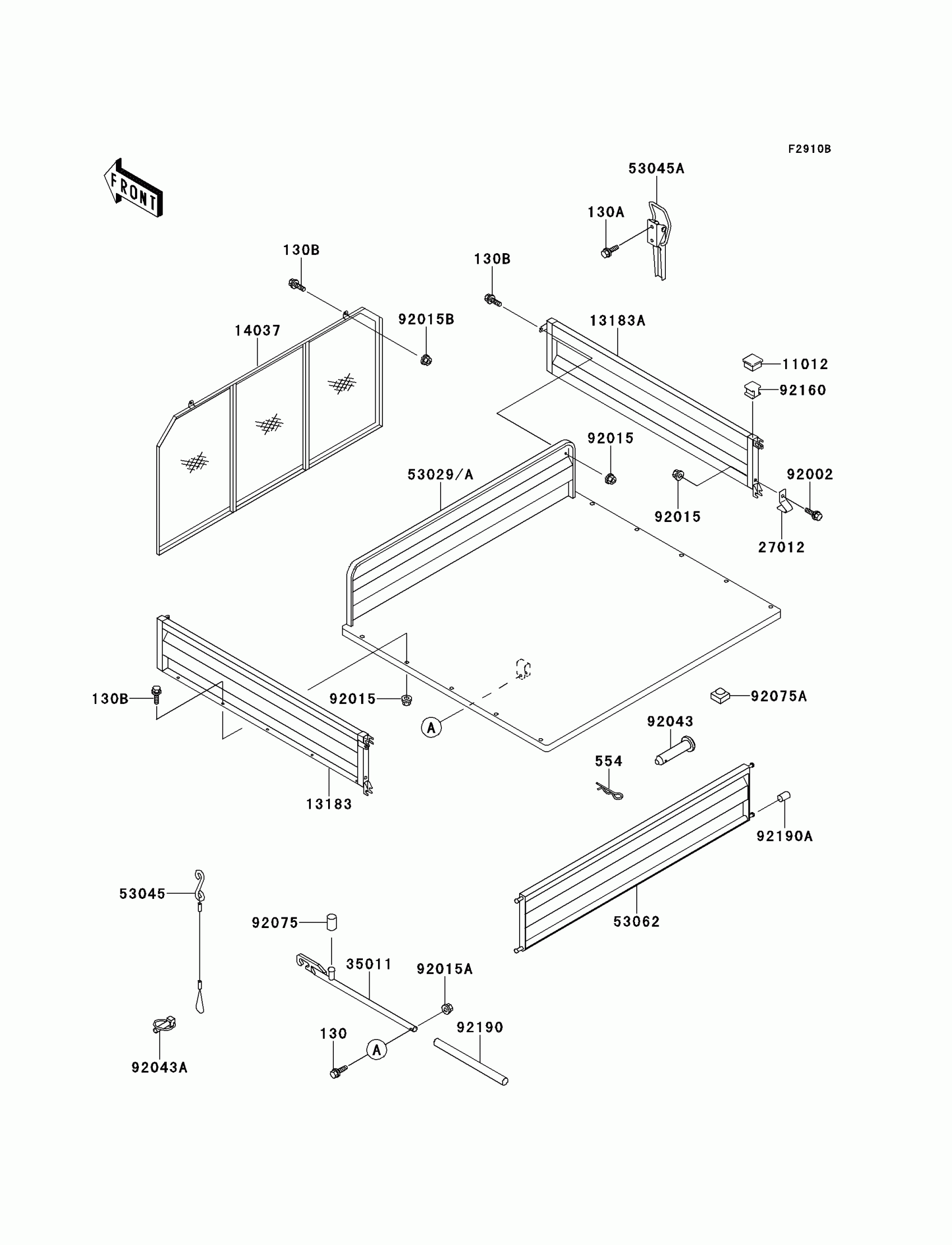

Kawasaki Mule 2500 Accessory(Carrier) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED,8X20

130J0820

Unavailable

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

13183

PLATE,CARRIER,SIDE,LH,F.RED

13183-1893-B1

$254.03

13183A

PLATE,CARRIER,SIDE,RH,F.RED

13183-1895-B1

$254.03

14037

SCREEN,REAR GUARD

14037-1163

$199.94

27012

HOOK,TAIL GATE

27012-1406

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53029

CARRIER,F.RED

53029-1138-B1

$1,111.45

53045

HOOK-ASSY,TALE GATE

53045-1060

$36.52

53045A

HOOK-ASSY

53045-1063

$18.86

53062

GATE-TAIL,F.RED

53062-1004-B1

$437.49

92002

BOLT,8X50

92002-1182

$8.75

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92015B

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55

92043

PIN,12X65

92043-1428

$7.69

92043A

PIN

92043-1490

$9.07

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92160

DAMPER

92160-1191

Unavailable

92190

TUBE,13X16X200

92190-1401

$4.63

92190A

TUBE,8X10X15

92190-1467

$3.51
