2030 Kawasaki Mule Valve/camshaft Diagram

← All diagrams

Find the part on the Valve/camshaft diagram for your 2030 Kawasaki Mule, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

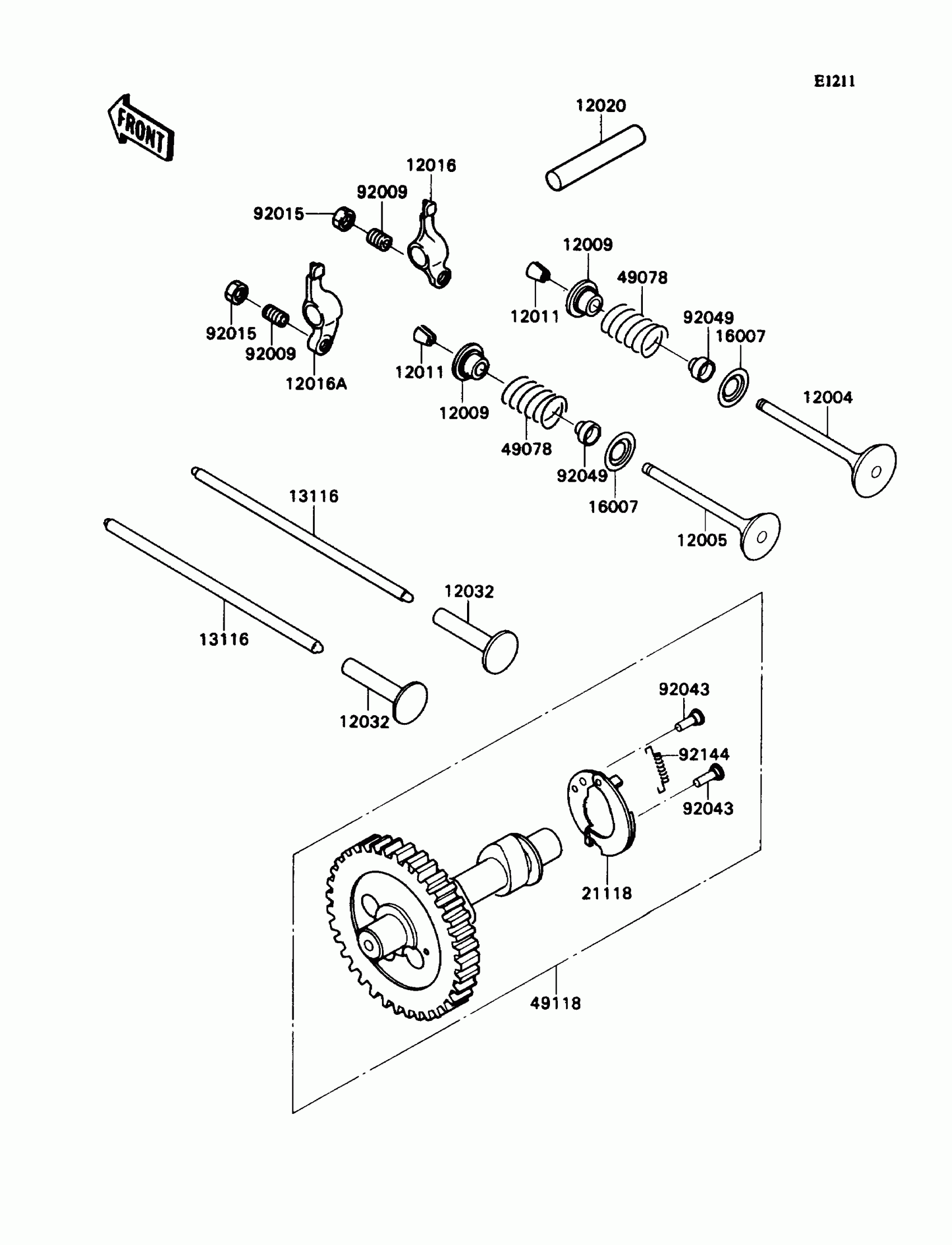

2030 Kawasaki Mule Valve/camshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-2080

1
Out of stock

12005

VALVE-EXHAUST

12005-1131

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-2064

1
Out of stock

12011

COLLET

12011-2055

1
Out of stock

12016

ARM-ROCKER,INTAKE

12016-2054

1
Out of stock

12016A

ARM-ROCKER,EXHAUST

12016-2055

1
Out of stock

12020

SHAFT-ROCKER

12020-2058

1
Out of stock

12032

TAPPET

12032-2061

1
Out of stock

13116

ROD-PUSH

13116-2055

1
Out of stock

16007

SEAT-SPRING

16007-2052

1
Out of stock

21118

DECOMPRESSOR

21118-1067

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-2061

1
Out of stock

49118

CAMSHAFT-COMP

49118-1073

1
Out of stock

92009

SCREW,9MM

92009-2182

1
Out of stock

92015

NUT,9MM

92015-2139

1
Out of stock

92043

PIN,5X17.6

92043-2113

1
Out of stock

92049

SEAL-OIL,VSB-7X12X9.7

92049-2100

1
Out of stock

92144

SPRING,DECOMPRESSOR

92144-1408

1
Out of stock
