2030 Kawasaki Mule Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2030 Kawasaki Mule, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

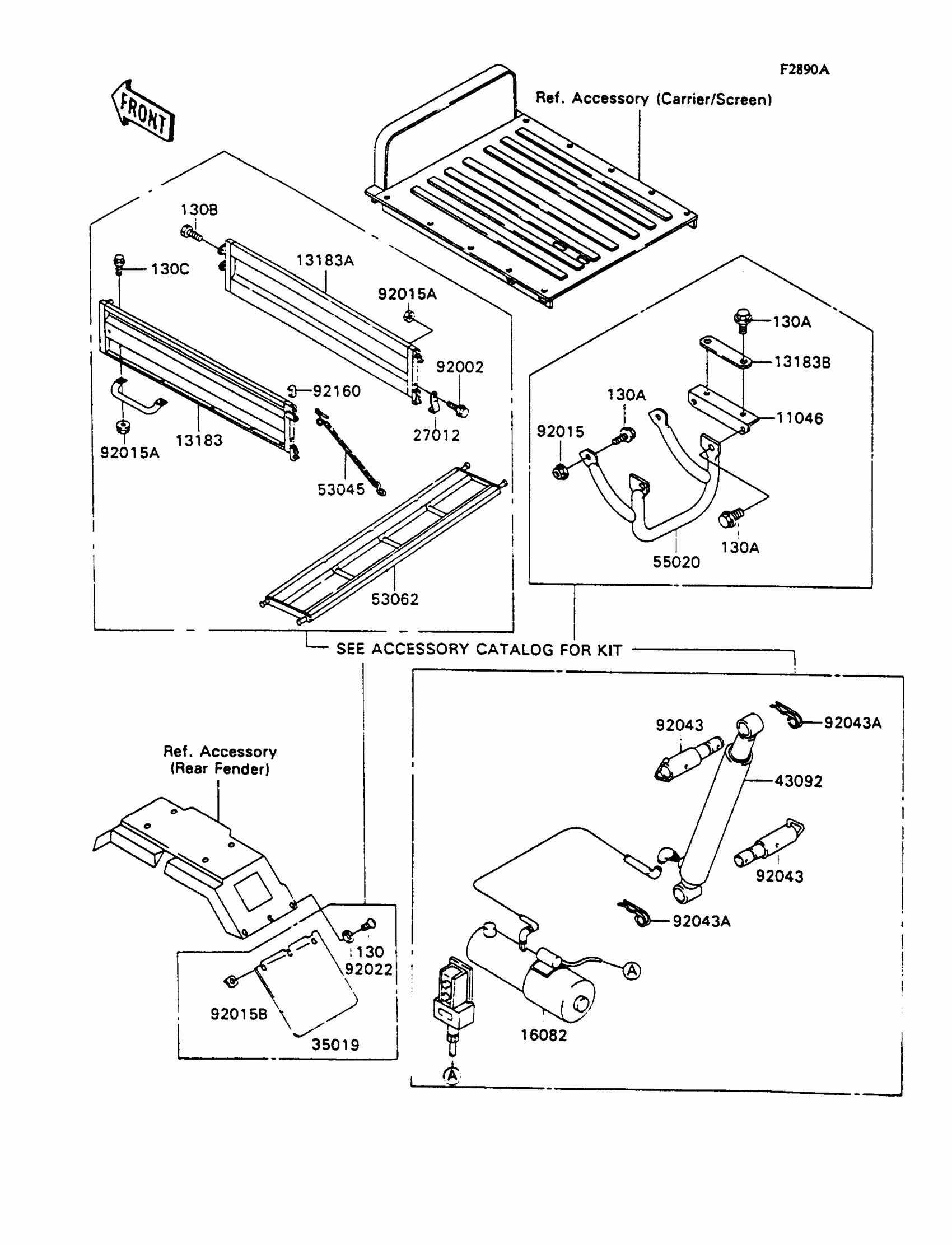

2030 Kawasaki Mule Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,TAIL LAMP GUARD

11046-1826

1
Out of stock

13183

PLATE,CARRIER SIDE,LH,F.RED

13183-1405-B1

1
Out of stock

13183A

PLATE,CARRIER SIDE,RH,F.RED

13183-1409-B1

1
Out of stock

13183B

PLATE,TAIL LAMP GUARD

13183-1497

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1105

1
Out of stock

27012

HOOK,TAIL GATE

27012-1406

1
Out of stock

35019

FLAP,REAR FENDER

35019-1244

1
Out of stock

43092

CYLINDER

43092-1056

1
Out of stock

53045

HOOK-ASSY,TAIL GATE

53045-1056

1

$60.37

In stock

53062

GATE-TAIL,F.RED

53062-1002-B1

1

$470.59

In stock

55020

GUARD,TAIL LAMP

55020-1354

1
Out of stock

92002

BOLT,8X50

92002-1182

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1366

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015B

NUT,6MM

92015-1602

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92043

PIN,DUMP

92043-1437

1
Out of stock

92043A

PIN,SNAP

92043-1438

1
Out of stock

92160

DAMPER

92160-1191

1
Out of stock

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

130A

BOLT-FLANGED,10X16

130D1016

1
Out of stock

130B

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130C

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock
