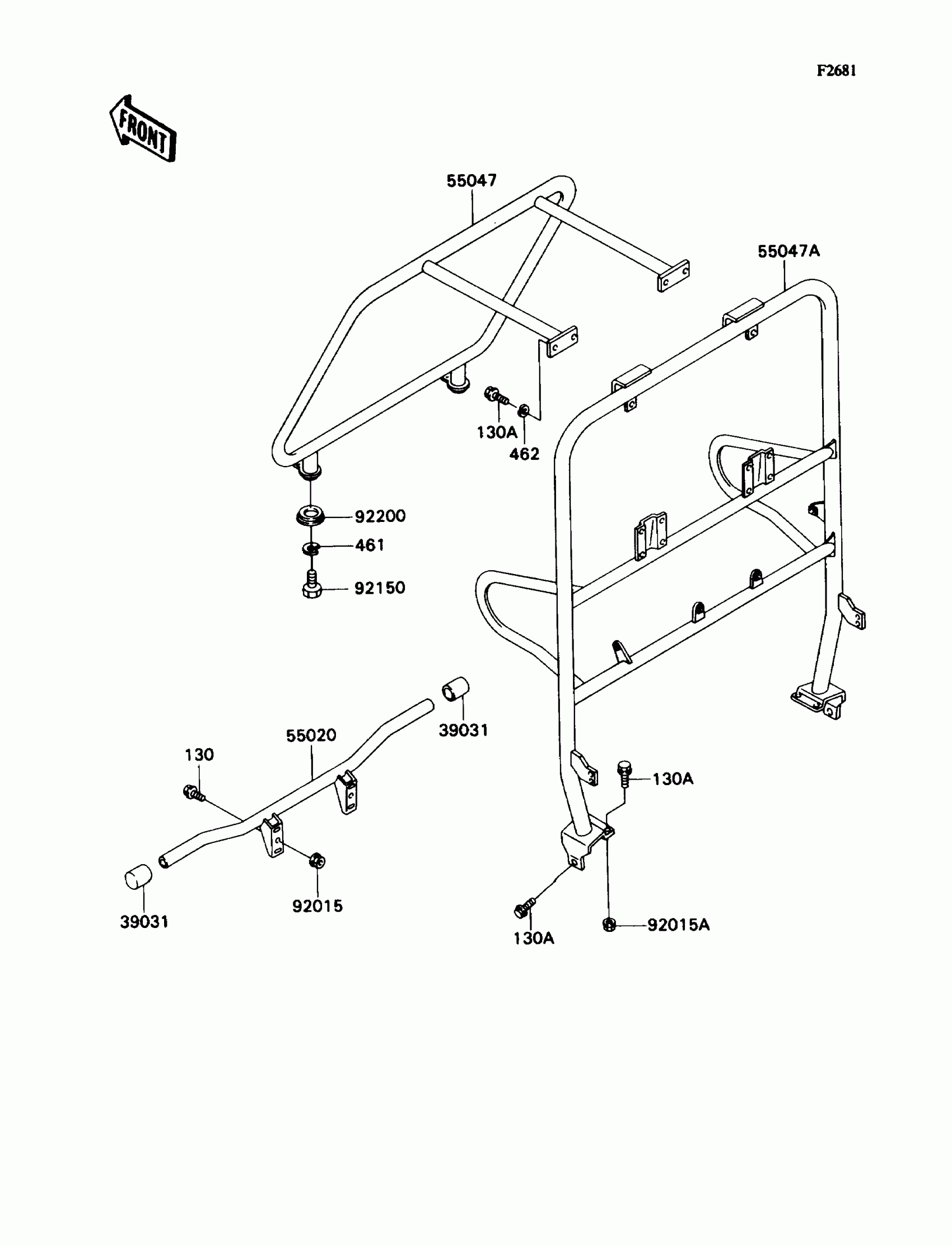

Kawasaki Mule 2030 Guard/Cab Frame Diagram

Description

Price

39031

CAP-END,BUMPER PIPE

39031-1059

$9.55

55020

GUARD,FRONT BUMPER

55020-1341

$130.59

55047

BAR-COMP,CAB FRAME,FR

55047-1004

$477.61

55047A

BAR-COMP,CAB FRAME,RR

55047-1005

$640.68

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92015A

NUT,FLANGED,10MM

92015-1366

$3.76

92150

BOLT,20X35

92150-1325

$10.29

92200

WASHER

92200-1032

$7.44

130

BOLT-FLANGED

130G1225

Unavailable

130A

BOLT-FLANGED,10X20

130J1020

Unavailable

461

WASHER-SPRING,20MM

461F2000

Unavailable

462

WASHER-SPRING,10MM

462K1000

Unavailable
