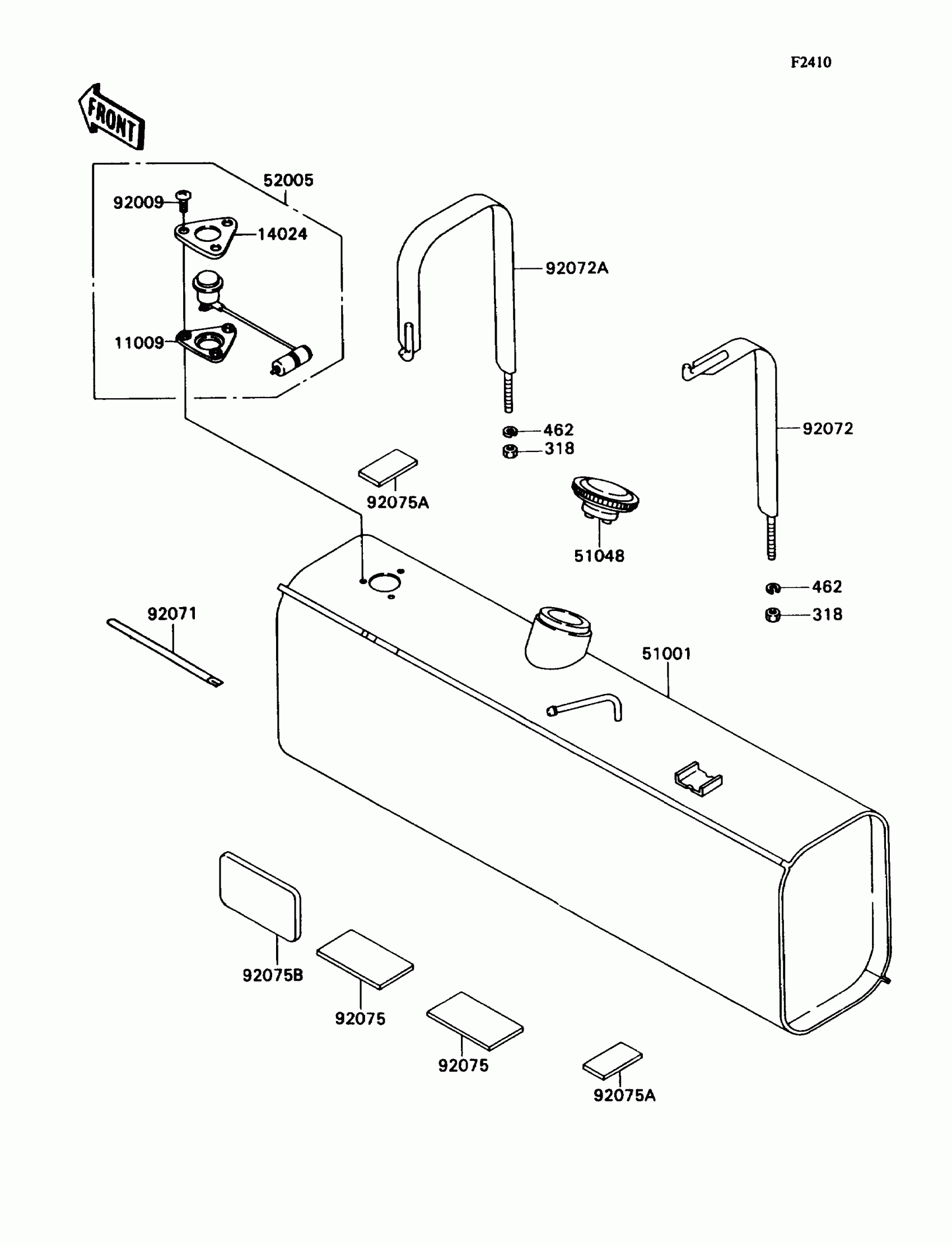

Kawasaki Mule 2030 Fuel Tank Diagram

Description

Price

11009

GASKET,FUEL GAUGE

11009-1755

Unavailable

14024

COVER,FUEL GAUGE

14024-1697

Unavailable

51001

TANK-COMP-FUEL

51001-1314

$559.47

51048

CAP-ASSY-TANK,FUEL

51048-1103

$53.17

52005

GAUGE,FUEL

52005-1085

$40.88

92009

SCREW,6X14

92009-1541

$3.95

92071

GROMMET

92071-1198

$2.36

92072

BAND,FUEL TANK

92072-1248

$46.30

92072A

BAND,FUEL TANK

92072-1249

Unavailable

92075

DAMPER,BATTERY

32103-027

$11.41

92075A

DAMPER

92075-1830

$4.92

92075B

DAMPER

92075-3759

Unavailable

318

NUT-HEX-SMALL

318C0800

Unavailable

462

WASHER-SPRING,8MM

462L0800

Unavailable
