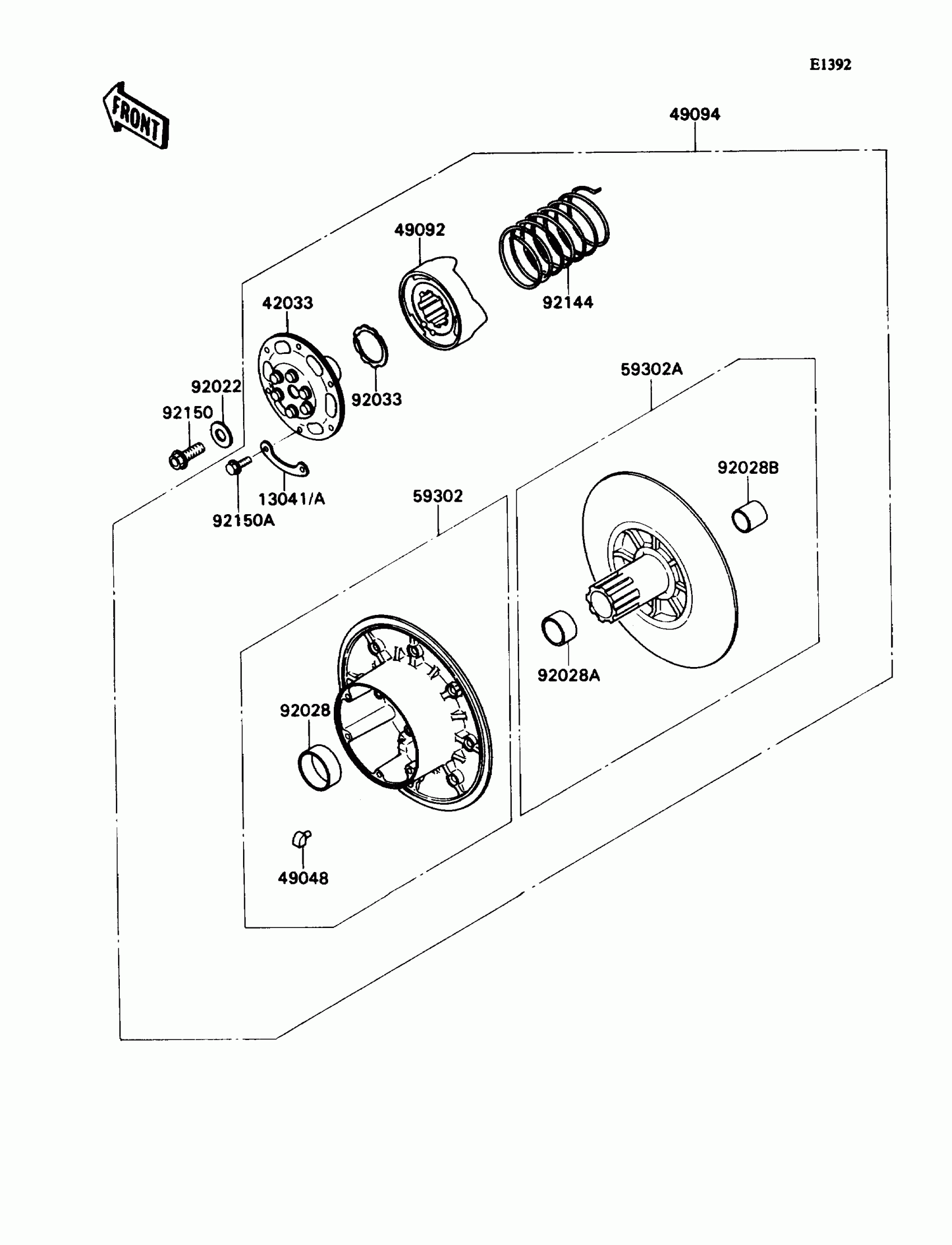

Kawasaki Mule 2030 Driven Converter Diagram

Description

Price

13041

BALANCER,T=0.8

13041-1084

Unavailable

13041A

BALANCER,T=1.0

13041-1085

Unavailable

42033

COUPLING-ASSY

42033-1124

$171.53

49048

SHOE

49048-1054

$4.12

49092

RAMP

49092-1051

$69.72

49094

CONVERTER-ASSY-DRIVEN

49094-1051

$759.12

59302

SHEAVE-COMP,FIXED

59302-1053

$344.05

59302A

SHEAVE-COMP,MOVABLE

59302-1054

Unavailable

92022

WASHER,12.5X32X3.2

92022-1982

$3.81

92028

BUSHING,50X55X20

92028-1512

$21.08

92028A

BUSHING,32X36X20

92028-1513

Unavailable

92028B

BUSHING,25X28X30

92028-1514

$14.97

92033

RING-SNAP

92033-1241

$5.07

92144

SPRING,DRIVEN CONVERTER

92144-1197

Unavailable

92150

BOLT,12X35

92150-1009

$5.86

92150A

BOLT,6X20

92150-1014

$3.14
