2020 Kawasaki Mule Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2020 Kawasaki Mule, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

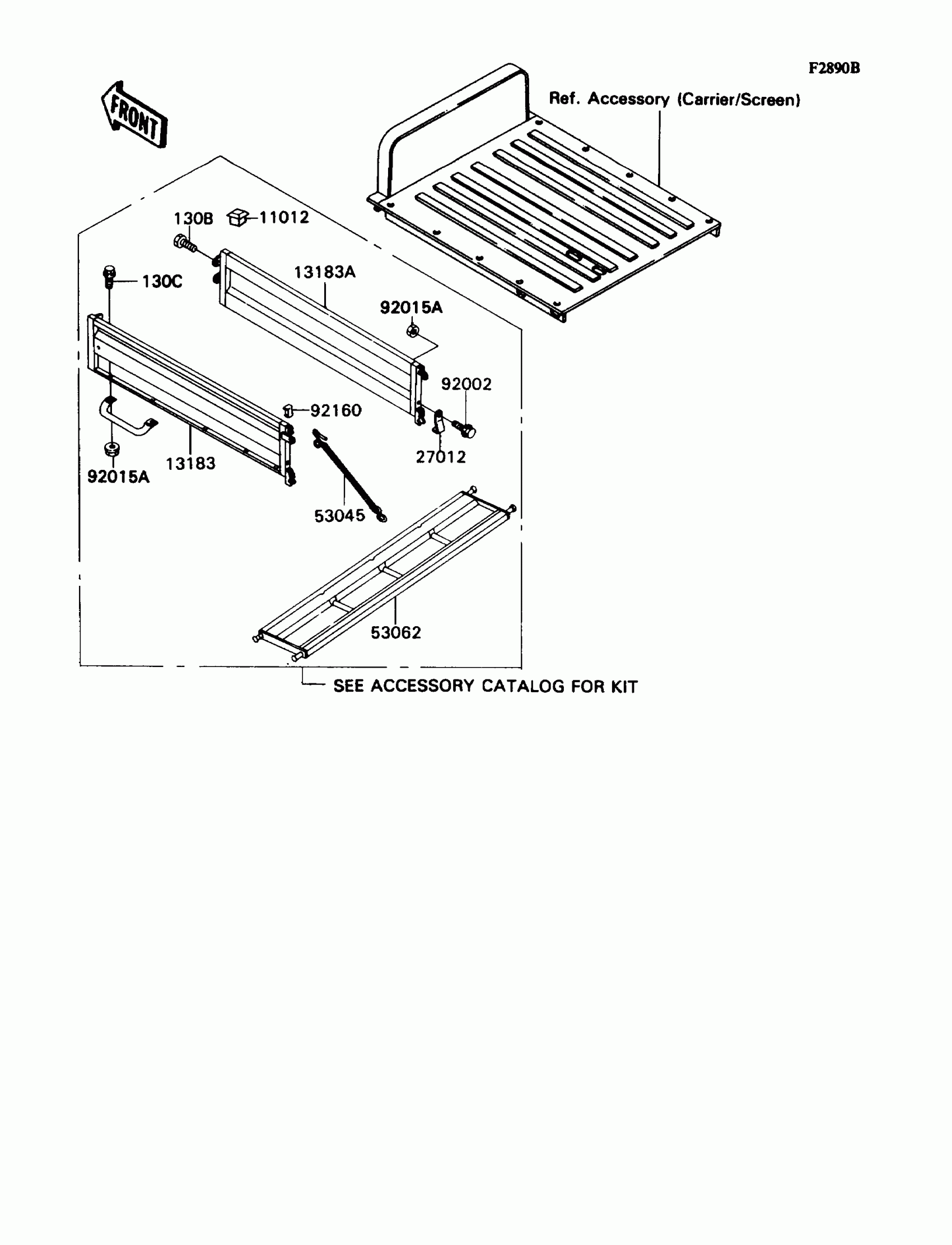

2020 Kawasaki Mule Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1784

1
Out of stock

13183

PLATE,CARRIER SIDE,LH,F.RED

13183-1405-B1

1
Out of stock

13183A

PLATE,CARRIER SIDE,RH,F.RED

13183-1409-B1

1
Out of stock

27012

HOOK,TAIL GATE

27012-1406

1
Out of stock

53045

HOOK-ASSY,TAIL GATE

53045-1056

1

$60.37

In stock

53062

GATE-TAIL,F.RED

53062-1002-B1

1

$470.59

In stock

92002

BOLT,8X50

92002-1182

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92160

DAMPER

92160-1191

1
Out of stock

130B

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130C

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock
