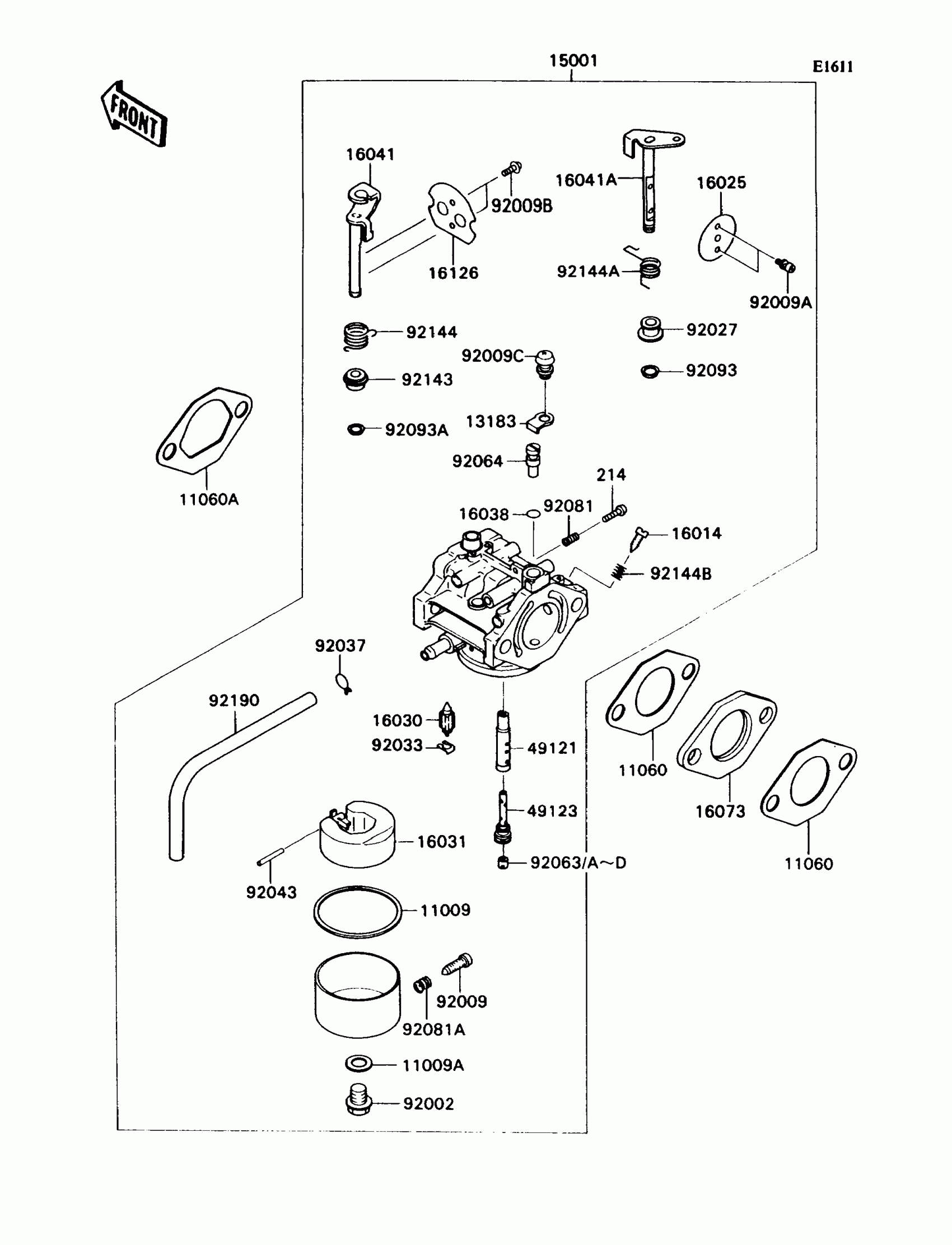

Kawasaki Mule 2020 Carburetor Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-2024

$3.07

11009A

GASKET

11009-2025

$1.42

11060

GASKET,INSULATOR

11060-2019

Unavailable

11060A

GASKET,CARBURETOR

11060-2020

Unavailable

13183

PLATE,PILOT JET

13183-2112

$2.63

15001

CARBURETOR-ASSY

15001-1533

Unavailable

16014

SCREW-PILOT AIR

16014-1065

Unavailable

16025

VALVE-THROTTLE,#140

16025-1157

$20.37

16030

VALVE-FLOAT

16030-2067

$23.58

16031

FLOAT

16031-2066

$26.75

16038

"O" RING

16038-024

$1.17

16041

SHAFT-CARBURETOR,CHOKE

16041-1054

Unavailable

16041A

SHAFT-CARBURETOR,THROTTLE

16041-1055

Unavailable

16073

INSULATOR

16073-1079

$9.46

16126

VALVE,CHOKE

16126-1232

$20.37

49121

NOZZLE-MAIN

49121-1051

Unavailable

49123

HOLDER-MAIN JET

49123-2057

Unavailable

92002

BOLT,MAIN JET

92002-2009

$9.39

92009

SCREW,DRAIN

92009-2015

$4.19

92009A

SCREW,THROTTLE VALVE

92009-2080

Unavailable

92009B

SCREW,CHOKE VALVE

92009-2081

$1.46

92009C

SCREW

92009-2244

$1.47

92027

COLLAR,THROTTLE SHAFT

92027-2025

$3.58

92033

RING-SNAP

92033-2067

$2.83

92037

CLAMP,BREATHER TUBE

92037-174

$1.42

92043

PIN,FLOAT

92043-2006

$2.42

92063

JET-MAIN,#122.5

92063-1389

Unavailable

92063A

JET-MAIN,#112.5

92063-2010

Unavailable

92063B

JET-MAIN,#117.5

92063-2117

Unavailable

92063C

JET-MAIN,#120

92063-2203

Unavailable

92063D

JET-MAIN,#110

92063-2237

Unavailable

92064

JET-PILOT,#72.5

92064-1159

Unavailable

92081

SPRING,THROTTLE ADJUST SCREW

92081-2008

Unavailable

92081A

SPRING

92081-2009

$2.22

92093

SEAL,THROTTLE SHAFT

92093-1286

Unavailable

92093A

SEAL,CHOKE SHAFT

92093-1287

$7.46

92143

COLLAR,CHOKE SHAFT

92143-1349

Unavailable

92144

SPRING,CHOKE SHAFT

92144-1442

Unavailable

92144A

SPRING,THROTTLE SHAFT

92144-1443

Unavailable

92144B

SPRING,PILOT AIR SCREW

92144-1527

$8.15

92190

TUBE,5X8X175

92190-1048

$11.44

214

SCREW-PAN+-

214B0414

Unavailable
