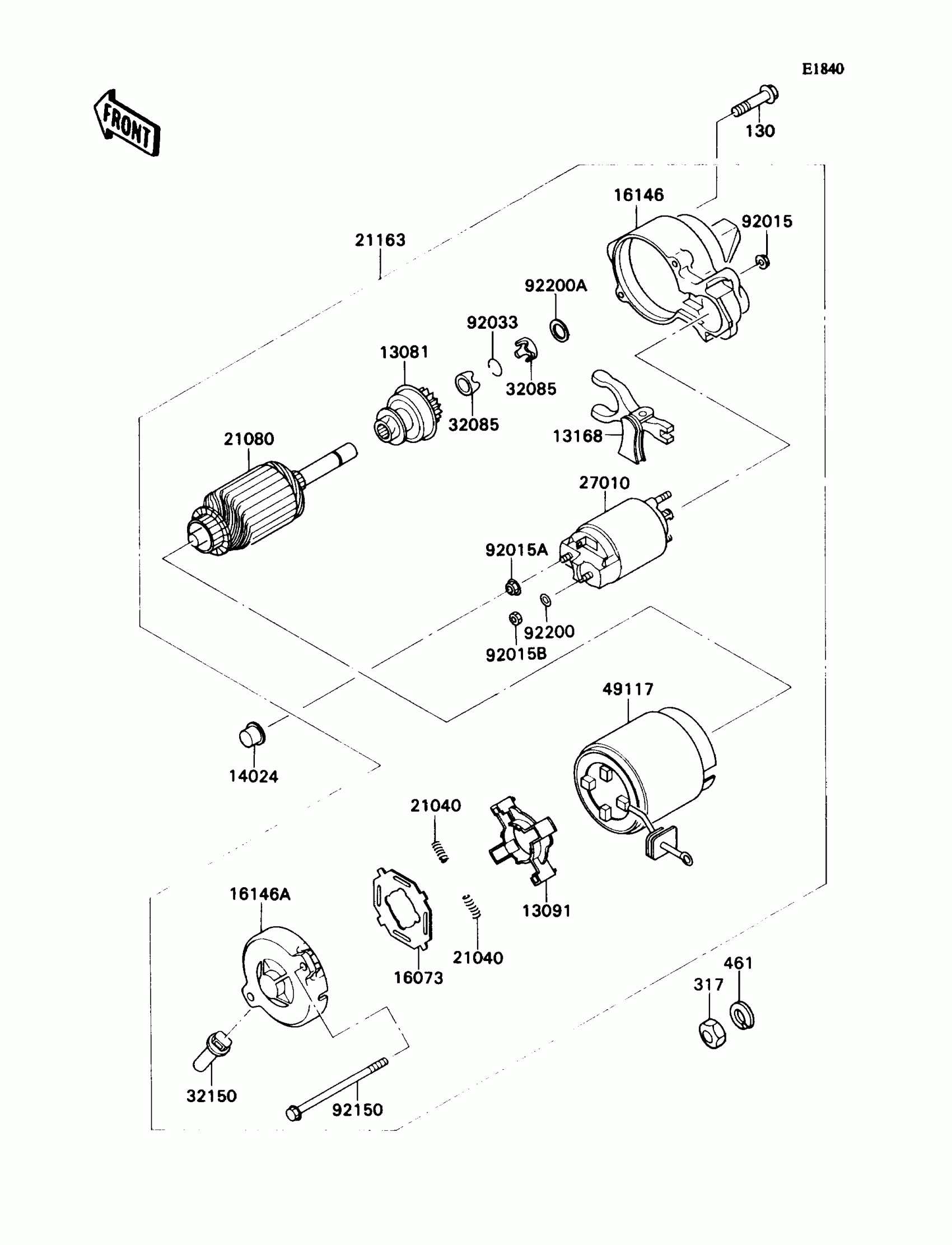

Kawasaki Mule 2010 Starter Motor Diagram

Description

Price

13081

CLUTCH-ASSY

13081-2085

$113.53

13091

HOLDER,BRUSH

13091-2068

$24.75

13168

LEVER

13168-2131

$22.68

14024

COVER

14024-2205

$1.08

16073

INSULATOR

16073-2098

$8.47

16146

COVER-ASSY

16146-1097

$155.46

16146A

COVER-ASSY

16146-1101

$81.61

21040

SPRING-BRUSH

21040-2052

$3.05

21080

ARMATURE

21080-2054

$342.60

21163

STARTER-ELECTRIC

21163-1147

$617.08

27010

SWITCH

27010-2122

Unavailable

32085

STOPPER

32085-2066

$13.22

32150

PIPE

32033-2154

$5.24

49117

YOKE

49117-2053

Unavailable

92015

NUT

92015-2146

$1.27

92015A

NUT

92015-2147

$2.29

92015B

NUT

92015-2148

$1.22

92033

RING-SNAP

92033-2081

$3.42

92150

BOLT

92002-2277

$10.05

92200

WASHER

92022-2211

$1.39

92200A

WASHER

92022-2218

Unavailable

130

BOLT-FLANGED

130B0835

Unavailable

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
