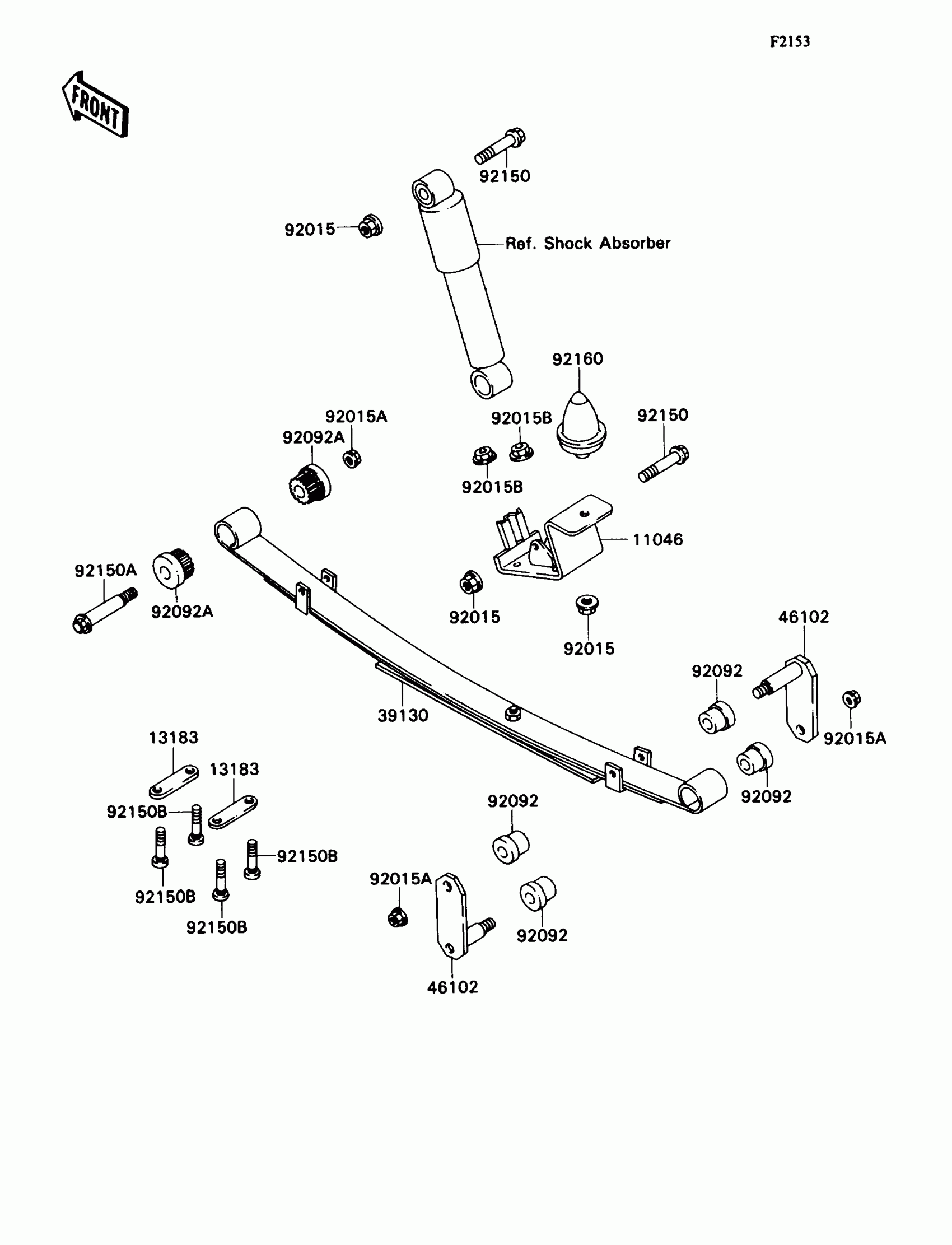

Kawasaki Mule 2010 Rear Suspension Diagram

Description

Price

11046

BRACKET,LEAF SPRING

11046-1616

Unavailable

13183

PLATE,LEAF SPRING

13183-1447

$4.66

39130

SPRING-LEAF

39130-1066

$366.86

46102

ROD,LEAF SPRING,RR

46102-1266

$39.10

92015

NUT,LOCK,10MM

92015-1597

$4.18

92015A

NUT

92015-1706

$5.69

92015B

NUT,LOCK,10MM

92015-1808

$3.29

92092

BUSHING-RUBBER

92092-1069

$5.79

92092A

BUSHING-RUBBER

92092-1070

$23.29

92150

BOLT,FLANGED,10X52

92150-1023

$5.22

92150A

BOLT,12MM

92150-1284

$18.08

92150B

BOLT,10X52

92150-1287

$9.12

92160

DAMPER,BUMP STOPPER

92160-1136

$39.09
