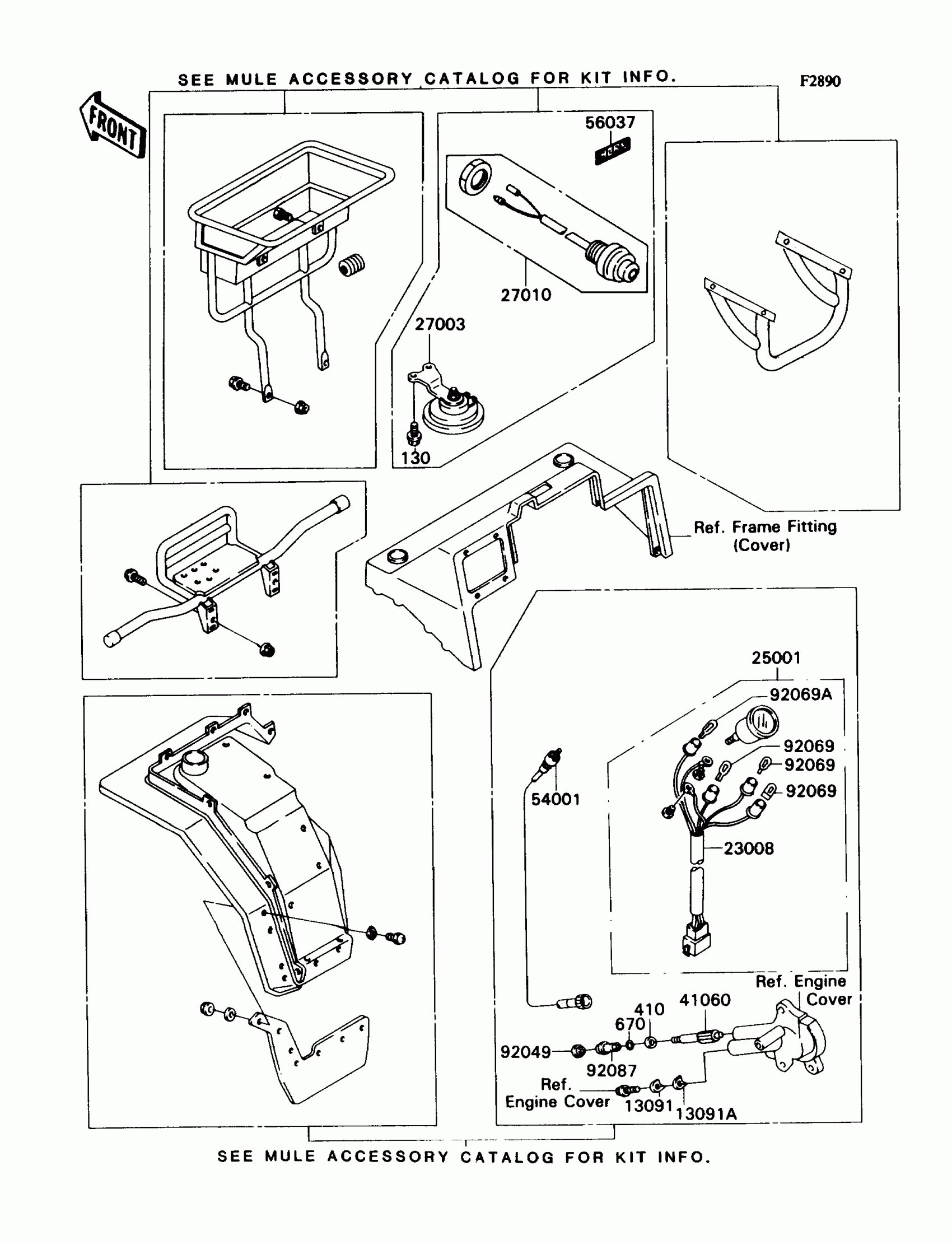

Kawasaki Mule 2010 Optional Parts(Front) Diagram

Description

Price

13091

HOLDER,TACHOMETER2.3T

13091-1008

$3.81

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$3.25

23008

SOCKET-ASSY,METER

23008-1355

Unavailable

25001

METER-ASSY,MPH

25001-1706

$272.55

27003

HORN

27003-1317

Unavailable

27010

SWITCH,HORN

27010-1241

$49.28

41060

GEAR-METER SCREW

41060-1120

$18.63

54001

CABLE-SPEEDOMETER

54001-1135

$48.92

56037

LABEL-SPECIFICATION,HORN

56037-1411

$5.32

92049

SEAL-OIL

92050-075

$8.66

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 1.7W,T10

92069-1059

$3.78

92087

GUIDE,TACHOMETER GEAR

92087-010

$22.76

130

BOLT-FLANGED,6X10

130B0610

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

670

O RING,10MM

670D1510

$3.57
