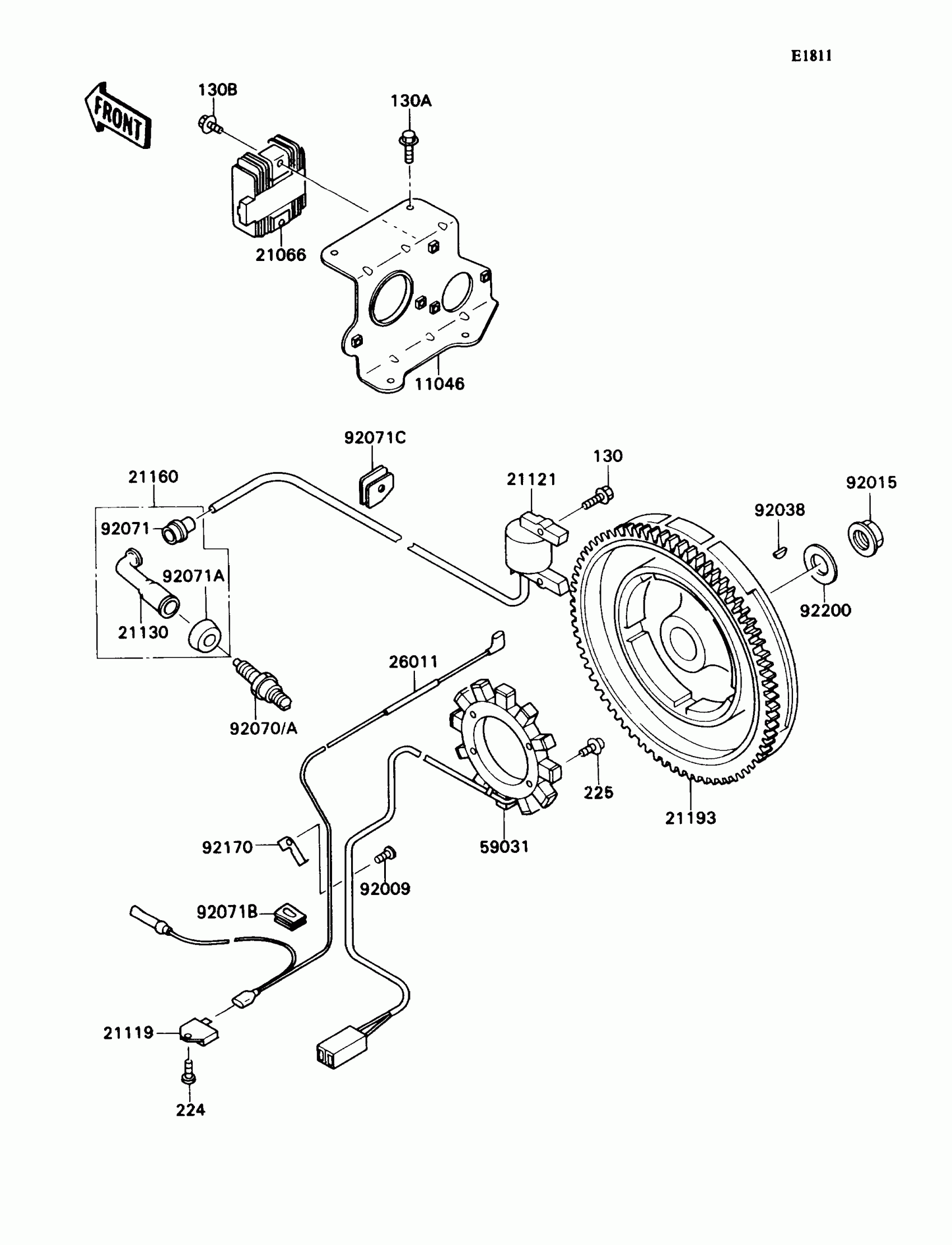

Kawasaki Mule 2010 Generator/Ignition Coil Diagram

Description

Price

11046

BRACKET,REGULATOR

11046-1614

Unavailable

21066

REGULATOR-VOLTAGE

21066-2056

$116.66

21119

IGNITER

21119-2095

Unavailable

21121

COIL-IGNITION

21121-1187

Unavailable

21130

CAP-SPARK PLUG

21130-1002

$45.70

21160

CAP-ASSY-PLUG

21160-1072

$33.27

21193

FLYWHEEL-ASSY

21193-1051

$591.40

26011

WIRE-LEAD

26011-1474

Unavailable

59031

COIL-CHARGING

59031-1052

Unavailable

92009

SCREW,5X12

92009-2104

$0.46

92015

NUT,20MM

92015-2152

$6.39

92038

KEY,WOODRUFF

92038-2094

$1.71

92070

PLUG-SPARK,BPR5ES(NGK)

92070-1043

Unavailable

92070A

PLUG-SPARK,BP5ES(NGK)

92070-1178

$8.32

92071

GROMMET,HIGH TENSION

21131-005

$4.64

92071A

GROMMET,PLUG CAP

92071-1146

$10.14

92071B

GROMMET

92071-2099

$1.00

92071C

GROMMET

92071-2112

$2.22

92170

CLAMP

92037-2177

Unavailable

92200

WASHER,20.2X40X3.2

92022-2207

$1.92

130

BOLT-FLANGED

130B0525

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

130B

BOLT-FLANGED

130J0620

Unavailable

224

SCREW-PAN-WP-CROS

224B0408

Unavailable

225

SCREW-PAN-WSP-CROS

225B0625

Unavailable
