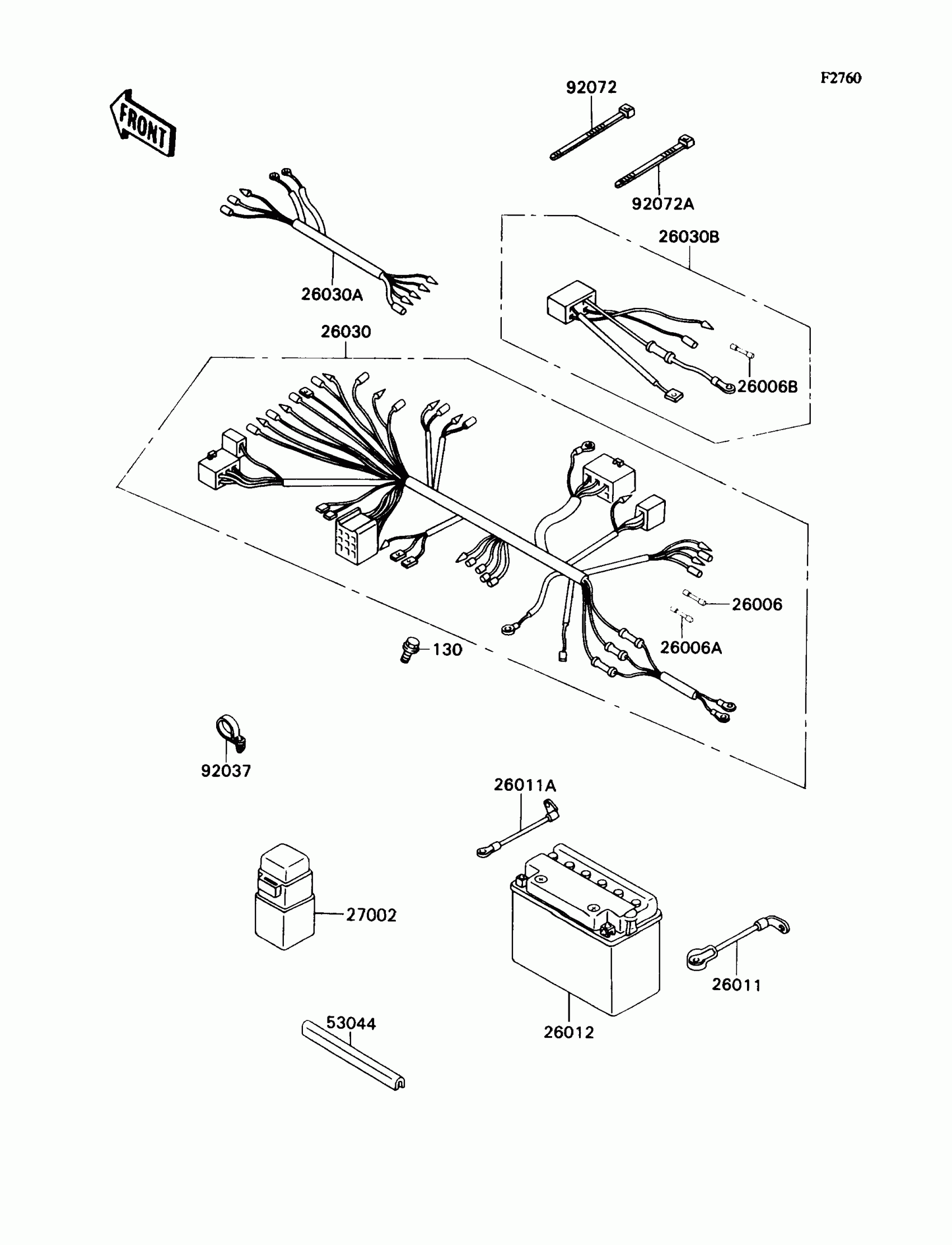

Kawasaki Mule 2010 Electrical Equipment Diagram

Description

Price

26006

FUSE,5A,L=32

26006-1063

$7.32

26006A

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26006B

FUSE,30A,L=32

26006-1065

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1443

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1444

$15.86

26012

BATTERY,YB16CL-B,12V 19AH

26012-1242

$126.40

26030

HARNESS,MAIN

26001-1974

$347.76

26030A

HARNESS

26001-1985

$62.44

26030B

HARNESS

26001-1988

$62.44

27002

RELAY-ASSY

27002-1068

$61.26

53044

TRIM

53044-1137

$10.25

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND,L=365

92072-1197

$7.71

92072A

BAND,L=188

92072-1239

$1.30

130

BOLT

130B0612

Unavailable
