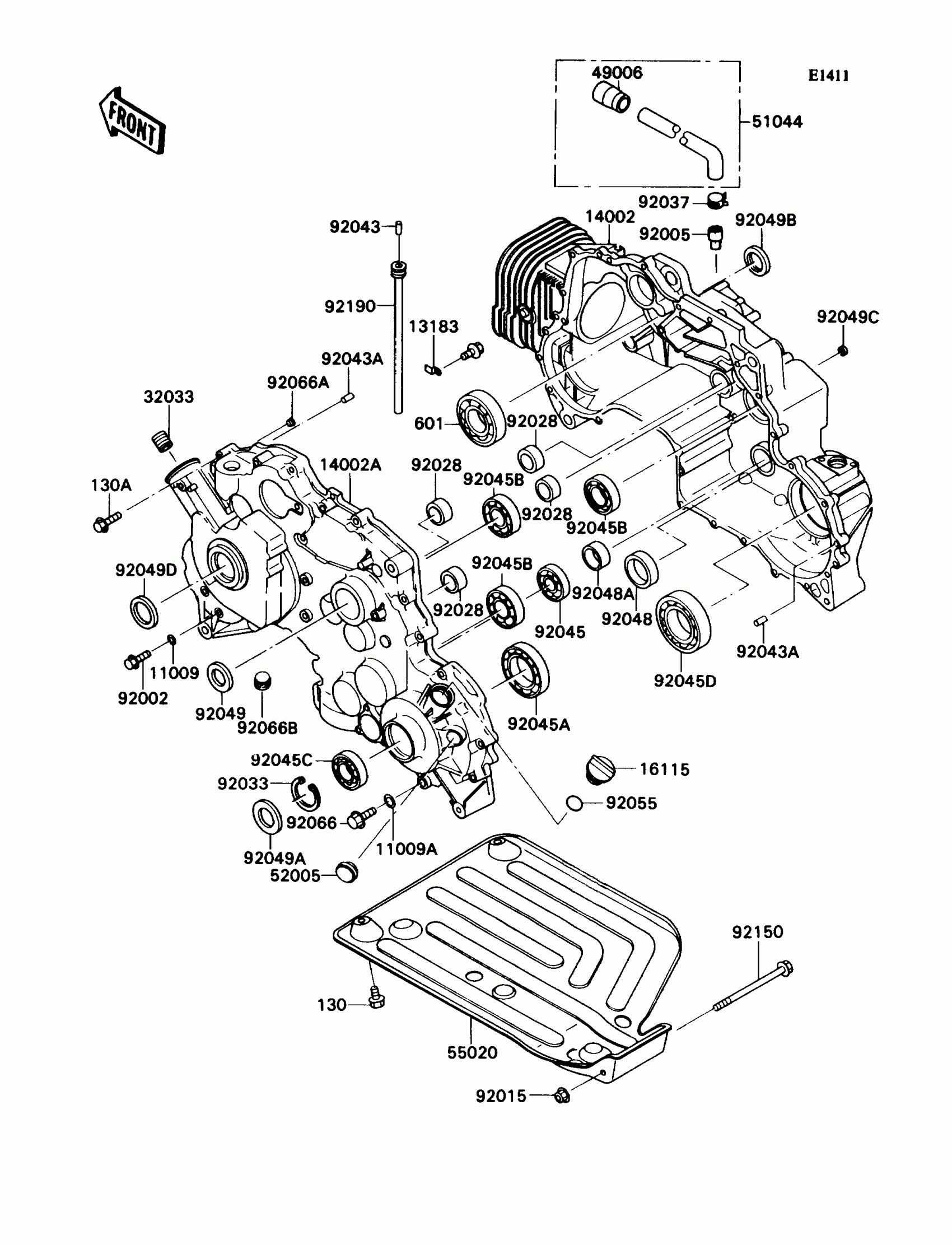

Kawasaki Mule 2010 Crankcase Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11009A

GASKET,12X22X2

92065-097

$0.66

13183

PLATE

13183-1096

$5.24

14002

CRANKCASE,RH

14002-1515

Unavailable

14002A

CRANKCASE,LH

14002-1516

Unavailable

16115

CAP-OIL FILLER

16115-1009

$10.86

32033

PIPE,OIL FILTER

32033-1535

$9.85

49006

BOOT

49006-1199

$6.58

51044

TUBE-ASSY

51044-1118

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

55020

GUARD

55020-1339

Unavailable

92002

BOLT,FLANGED,8X16

92002-1200

$4.34

92005

FITTING,BREATHER

14067-006

$19.78

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92028

BUSHING,26X35X14

92028-131

$33.95

92033

RING-SNAP,55MM

92033-1274

$7.18

92037

CLAMP

92037-1860

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92045

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045A

BEARING-BALL

92045-1162

$46.25

92045B

BEARING-BALL,62/28

92045-1207

$14.34

92045C

BEARING-BALL,6006

92045-1208

$17.90

92045D

BEARING-BALL,6210CM

92045-1213

$49.04

92048

RACE,OR41X52X14

92048-1082

Unavailable

92048A

RACE,30X38X17

92048-1083

Unavailable

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.31

92049A

SEAL-OIL,TC35X55X8

92049-1298

$6.85

92049B

SEAL-OIL,ISD-32X45X8

92049-2096

$6.69

92049C

SEAL-OIL,VC-6X10X2.5

92049-2097

$1.52

92049D

SEAL-OIL,SGL2-35X48X8AE

92049-2104

$6.93

92055

RING-O,31.5X2.6

92055-049

$3.29

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066A

PLUG,PT1/8X7

92066-1227

$5.15

92066B

PLUG,PT3/8X10

92066-1262

$2.66

92150

BOLT,8X135

92150-1281

$5.81

92190

TUBE,BREATHER

92190-1011

$22.12

130

BOLT-FLANGED

130D0816

Unavailable

130A

BOLT-FLANGED

130H0840

Unavailable

601

BEARING-BALL

601A6307

$37.86
