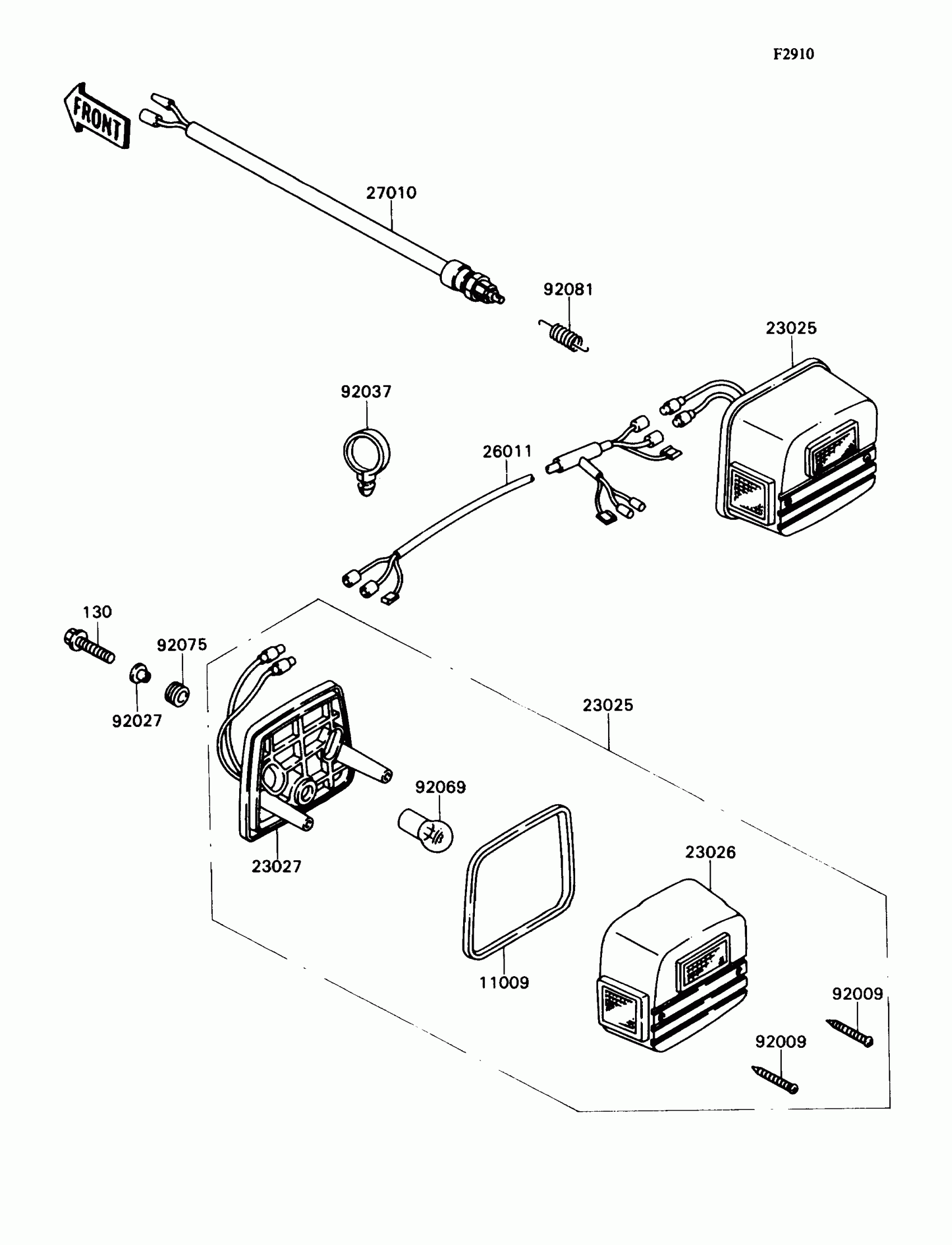

Kawasaki Mule 2010 Accessory(Tail Lamp) Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1215

$6.70

23025

LAMP-TAIL

23025-1042

$103.96

23026

LENS,TAIL LAMP

23026-1019

$45.95

23027

BODY-COMP-TAIL LAMP

23027-1023

$25.25

26011

WIRE-LEAD,TAIL LAMP

26011-1441

$34.58

27010

SWITCH,BRAKE LAMP

27010-1181

$27.07

92009

SCREW,TAPPING,4X25

92009-1069

$3.53

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,HOSE

92037-1827

$5.69

92069

BULB,12V 21/5W

92069-1011

$5.78

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,HOOK RETURN

92081-1466

$6.48

130

BOLT-FLANGED,6X25

130D0625

Unavailable
