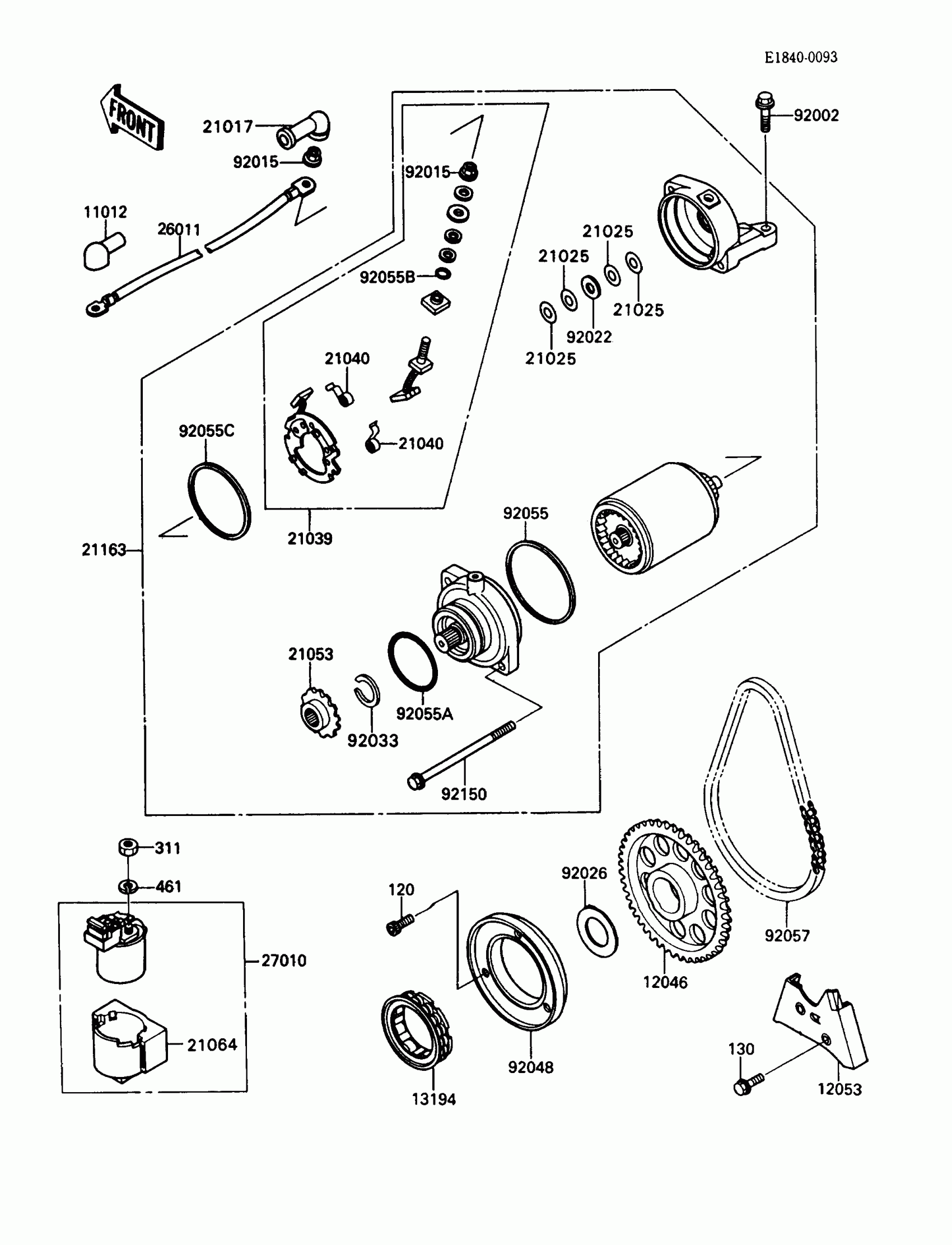

Kawasaki Mule 1000 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

130

BOLT-FLANGED,6X20

130G0620

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

12046

SPROCKET,ONEWAY CLUTCH

12046-1104

Unavailable

12053

GUIDE-CHAIN

12053-1214

Unavailable

13194

CLUTCH-ONEWAY

13194-1090

Unavailable

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-1062

$88.27

21040

SPRING-BRUSH

21040-1057

$8.24

21053

SPROCKET-ASSY

21053-1057

$46.80

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1125

$682.63

26011

WIRE-LEAD,STARTER MOTOR

26011-1251

$79.27

27010

SWITCH,MAGNETIC

27010-1209

Unavailable

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,25.2X40X1.0

92026-1285

$5.66

92033

RING-SNAP,17MM

92033-034

$10.31

92048

RACE,ONEWAY CLUTCH

92048-1095

$87.01

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O,42.8MM

92055-1313

$8.44

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92055C

RING-O,STARTER MOTOR

92055-1381

$9.58

92057

CHAIN,STARTER,BF05MX64L

92057-1197

$51.37

92150

BOLT,STARTER MOTOR

92150-1138

$9.27
