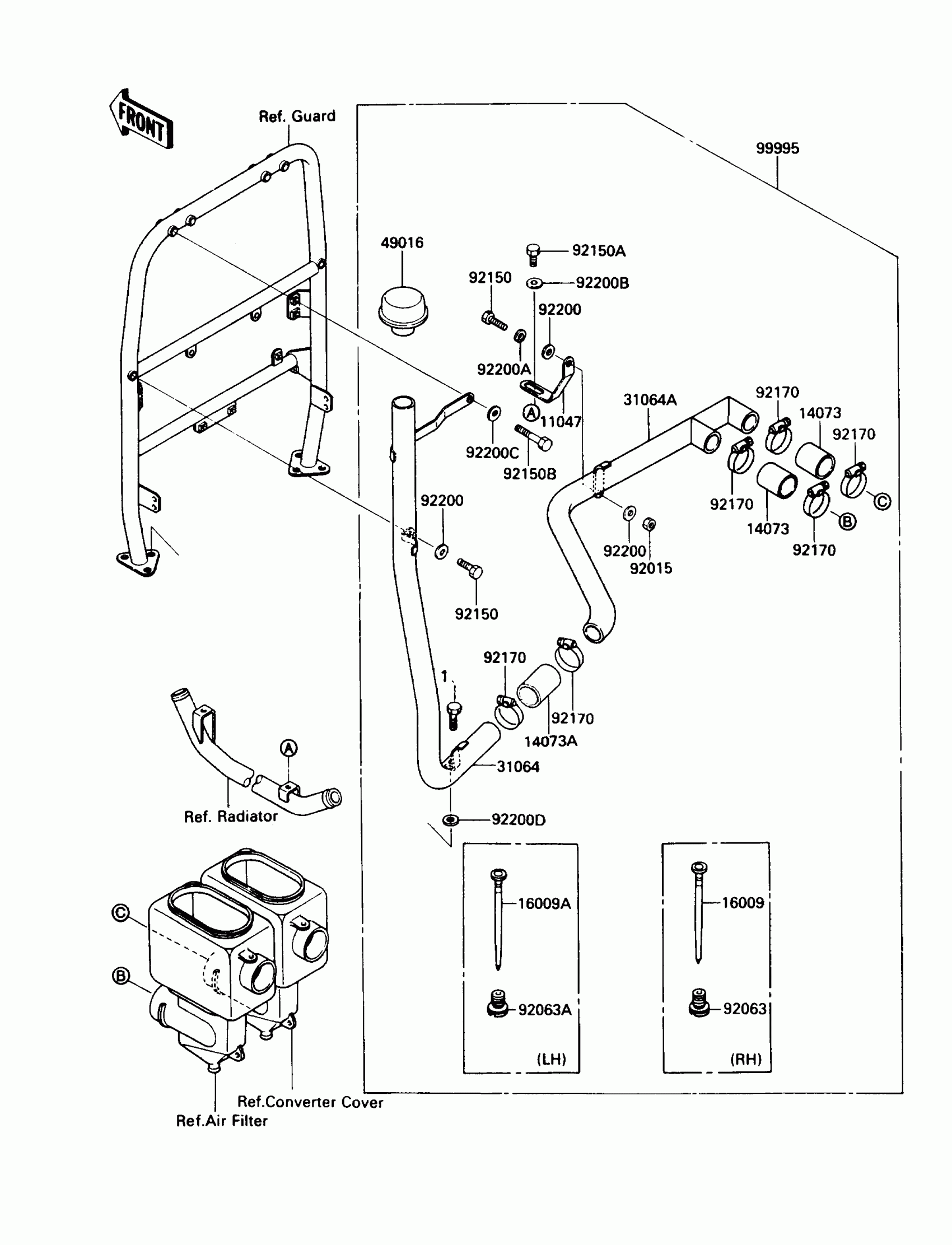

Kawasaki Mule 1000 Optional Parts Diagram

Description

Price

130

BOLT-FLANGED,10X35

130G1035

Unavailable

11047

BRACKET

11047-1398

Unavailable

14073

DUCT

14073-1489

$19.32

14073A

DUCT

14073-1490

$19.32

16009

NEEDLE-JET,N77L

16009-1649

$29.85

16009A

NEEDLE-JET,N77M

16009-1650

$29.85

31064

PIPE-COMP

31064-1125

Unavailable

31064A

PIPE-COMP

31064-1126

Unavailable

49016

COVER-SEAL

49016-1157

$23.25

92015

NUT,8MM

92015-1852

$0.63

92063

JET-MAIN,#95

92063-1001

$14.59

92063A

JET-MAIN,#92

92063-1004

$11.72

92150

BOLT,8X25

92150-1508

$4.76

92150A

BOLT,6X16

92150-1509

$0.95

92150B

BOLT,10X90

92150-1510

$16.78

92170

CLAMP

92170-1253

$4.20

92200

WASHER,8.5X18X1.0

92200-1092

$0.81

92200A

WASHER,SPRING,8MM

92200-1093

$0.44

92200B

WASHER,6.5X13X1.0

92200-1094

$2.06

92200C

WASHER,10.5X21X2.0

92200-1095

$0.81

92200D

WASHER,10.5X25X4.7

92200-1096

$4.61

99995

KIT,SNORKEL

99995-1222

Unavailable
