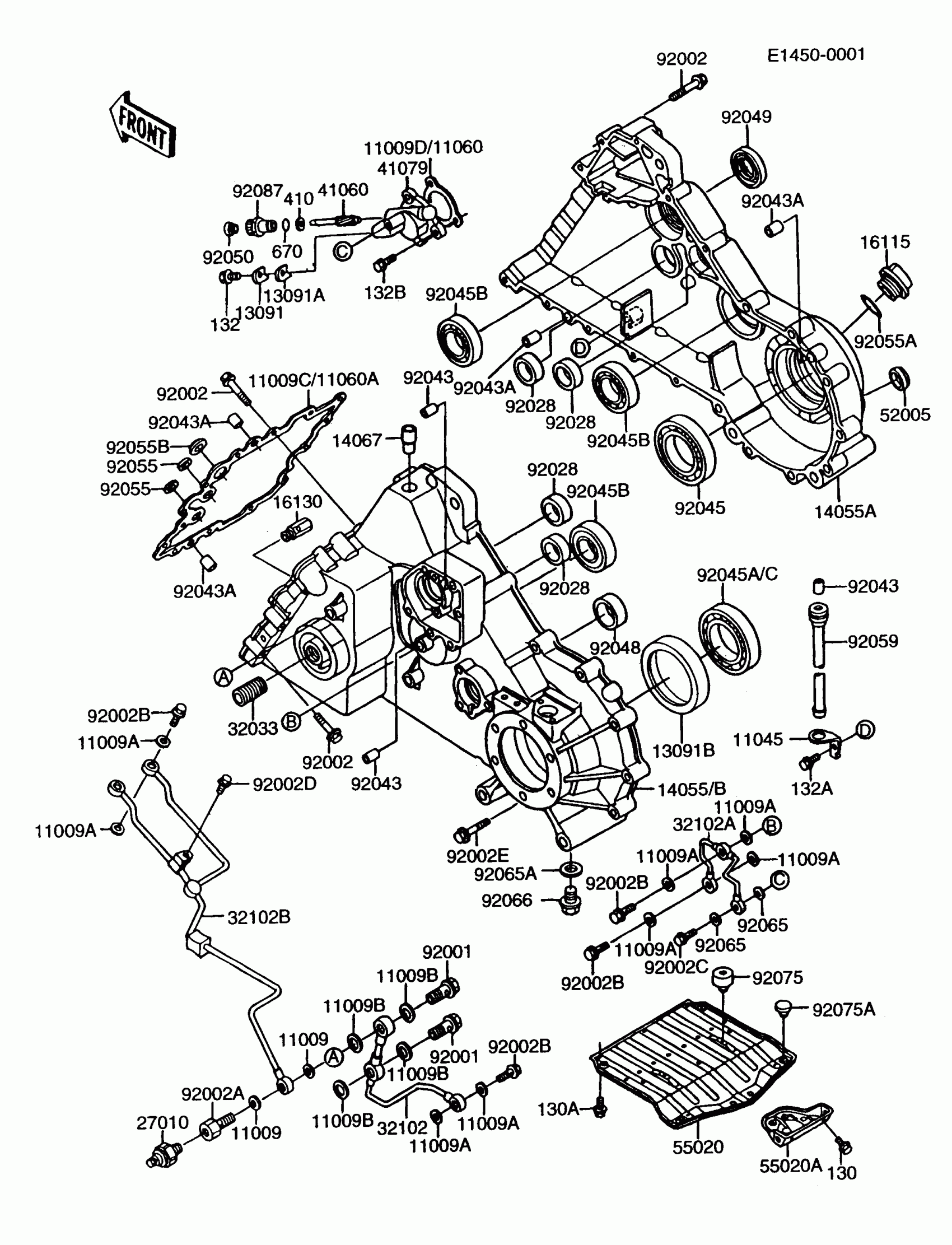

Kawasaki Mule 1000 Gear Box Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,8.2X14X1.0

11009-1344

$2.11

11009B

GASKET,14X19.5X1.4

11009-1461

$4.04

11009C

GASKET,GEAR BOX

11009-1685

Unavailable

11009D

GASKET,METER GEAR CASE

11009-1686

Unavailable

11045

BRACKET,TUBE

11045-1939

Unavailable

11060

GASKET,METER GEAR CASE

11060-1246

Unavailable

11060A

GASKET,GEAR BOX

11060-1250

Unavailable

13091

HOLDER,TACHOMETER2.3T

13091-1008

$3.81

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$3.25

13091B

HOLDER

13091-1374

Unavailable

14055

CASE-GEAR,LH

14055-1079

$357.03

14055A

CASE-GEAR,RH

14055-1080

$399.03

14055B

CASE-GEAR,LH

14055-1103

$491.64

14067

FITTING,BREATHER

14067-006

$19.78

16115

CAP-OIL FILLER

16115-1009

$10.86

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

27010

SWITCH,OIL PRESSURE

27010-1155

$35.72

32033

PIPE,OIL FILTER

32033-1535

$9.85

32102

PIPE,INNER,OIL

32102-1715

$61.47

32102A

PIPE,OUTER,OIL

32102-1716

Unavailable

32102B

PIPE,GEAR CASE-HEAD

32102-1717

$87.39

41060

GEAR-METER SCREW

41060-1120

$18.63

41079

CASE-METER GEAR

41079-1059

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

55020

GUARD,ENGINE

55020-1283

Unavailable

55020A

GUARD,DIFFERENTIAL

55020-1284

Unavailable

92001

BOLT,14X28.5

92001-1930

$9.59

92002

BOLT,6X40

92002-1080

$3.59

92002A

BOLT,OIL SWITCH

92002-1427

$22.64

92002B

BOLT,8X20

92002-1429

$10.63

92002C

BOLT,BANJO,6X19

92002-1473

$12.47

92002D

BOLT,6X12

92002-1569

Unavailable

92002E

BOLT,8X40

92002-1783

$3.78

92028

BUSHING,26X35X14

92028-131

$33.95

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

130

BOLT-FLANGED

130D0612

Unavailable

130A

BOLT-FLANGED

130D0812

Unavailable

132

BOLT-FLANGED-SMALL

132D0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

670

O RING,10MM

670D1510

$3.57

92045

BEARING-BALL

92045-1162

$46.25

92045A

BEARING-BALL

92045-1162

$46.25

92045B

BEARING-BALL,62/28

92045-1207

$14.34

92045C

BEARING-BALL,6210CM

92045-1213

$49.04

92048

RACE

92048-1069

$38.30

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.31

92050

SEAL-OIL

92050-075

$8.66

92055

RING-O,OD=18

92055-048

$3.66

92055A

RING-O,31.5X2.6

92055-049

$3.29

92055B

RING-O

92055-1398

Unavailable

92059

TUBE,BREATHER

92059-1864

$11.03

92065

GASKET

92065-096

$3.54

92065A

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92075

DAMPER

92075-1876

$10.02

92075A

DAMPER

92075-1983

$3.19

92087

GUIDE,TACHOMETER GEAR

92087-010

$22.76
