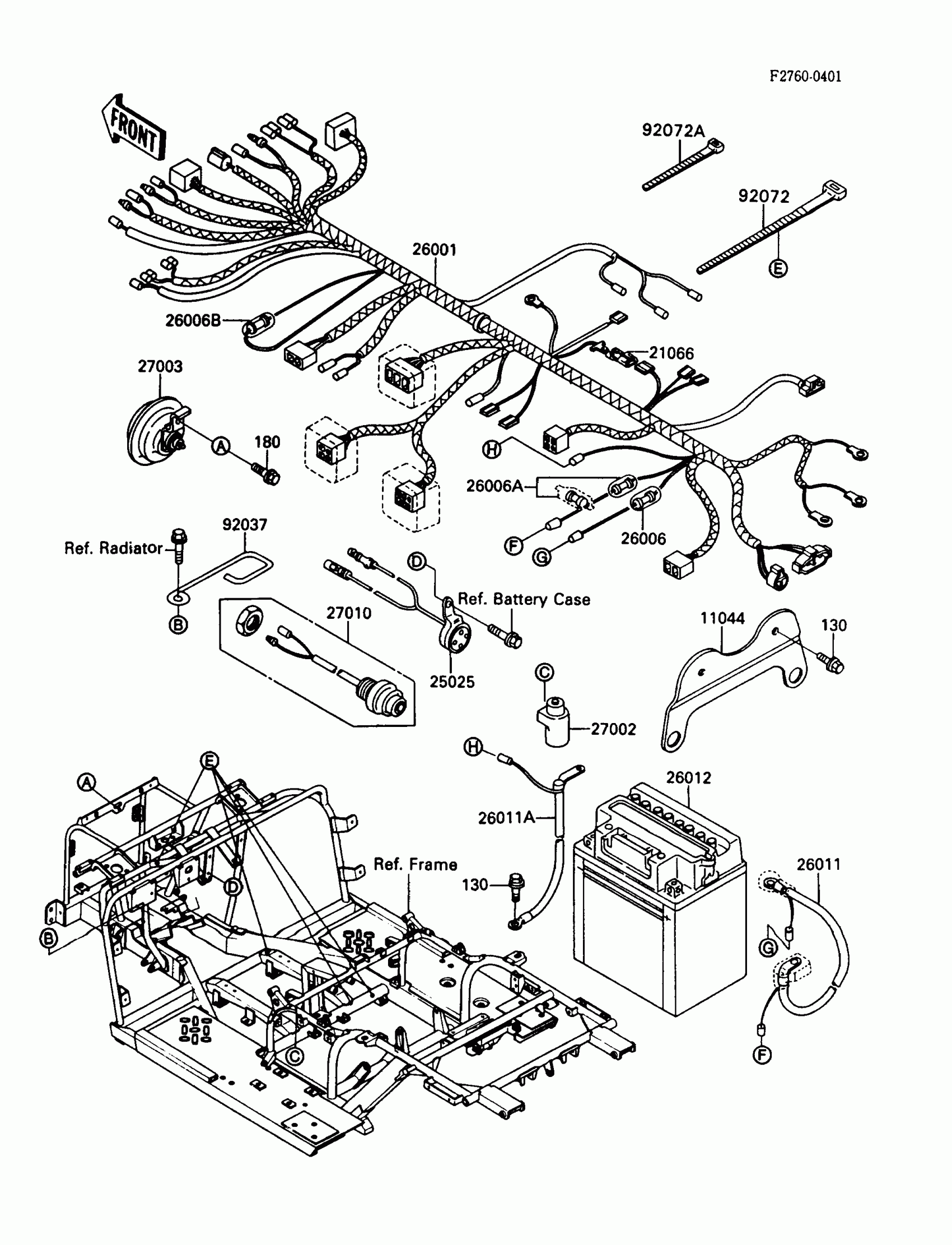

Kawasaki Mule 1000 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

180

BOLT-UPSET-WS

180D0614

Unavailable

11044

BRACKET,TAIL LAMP

11044-1367

$16.02

21066

REGULATOR

21066-026

Unavailable

25025

WARNER

25025-1051

Unavailable

26001

HARNESS,MAIN

26001-1870

Unavailable

26006

FUSE,20A,L=30

26006-1056

$4.47

26006A

FUSE,30A,L=30

26006-1059

Unavailable

26006B

FUSE,8A,L=30

26006-1062

$4.68

26011

WIRE-LEAD,BATTERY(+)

26011-1406

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1407

Unavailable

26012

BATTERY,12V 19AM,YB16CL-B

26012-1149

$126.40

27002

RELAY-ASSY

27002-1051

$48.39

27003

HORN

27003-1276

$44.93

27010

SWITCH,HORN

27010-1241

$49.28

92037

CLAMP,HOSE

92037-1775

Unavailable

92072

BAND,L=365

92072-1197

$7.71

92072A

BAND,L=188

92072-1239

$1.30
