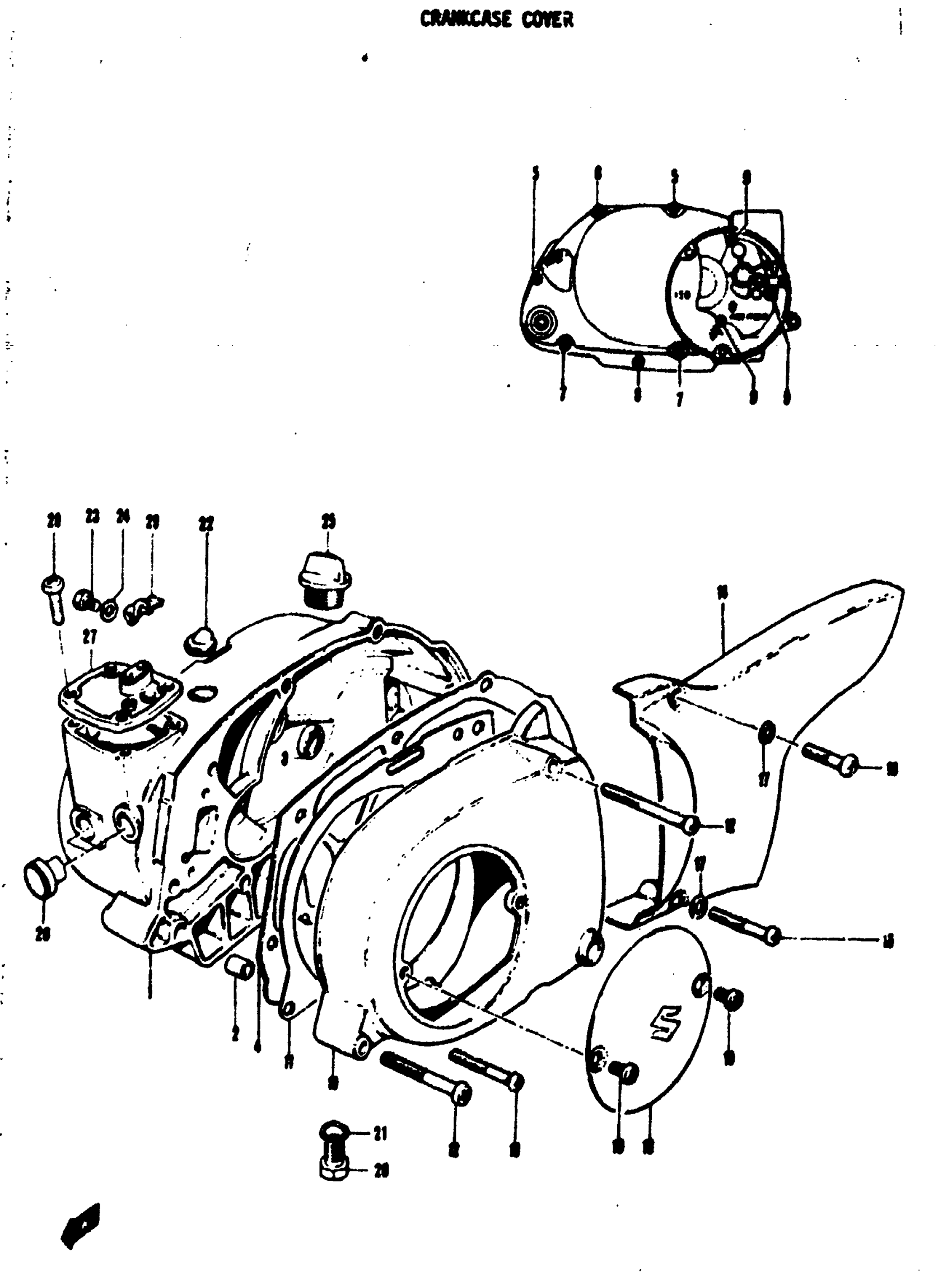

Suzuki MT50 (1973) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE RH

11340-27100

Unavailable

2

DOWEL PIN

04211-09129

$1.70

3

OIL SEAL | 10x17x5

09284-10002

$2.80

4

GASKET, CRANKCASE RIGHT COVER

11482-19003

Unavailable

5

SCREW This part replaces 02112-06708.

02112-06707

$2.64

6

SCREW This part replaces 02112-06358.

02112-06357

$1.82

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.07

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.86

9

SCREW This part replaces 02112-06258.

02112-06257

$1.68

10

NO DESCRIPTION AVAILABLE This part replaces 11351-22000.

11351-22001

Unavailable

11

GASKET, CRANKCASE LEFT COVER

11483-22000

Unavailable

12

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.07

13

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.86

14

COVER, ENGINE SPROCKET

11361-27000

Unavailable

15

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.83

16

SCREW This part replaces 02112-06208.

02112-06207

$1.83

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.31

18

CAP, GENERATOR INSPECTION

11381-01000

Unavailable

19

SCREW This part replaces 02111-05087.

02112-05087

$1.49

20

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

21

GASKET

09168-14002

$2.83

22

GROMMET

09308-07003

Unavailable

23

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.43

24

GASKET

09168-06001

$1.33

25

PLUG SET This part replaces 09259-20003.

09200-20811

$3.74

26

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.10

27

COVER, CARBURETOR TOP

11440-27200

Unavailable

28

SCREW This part replaces 02112-05168.

02112-05167

$2.01

29

PROTECTOR, FUEL HOSE

15859-19000

Unavailable
