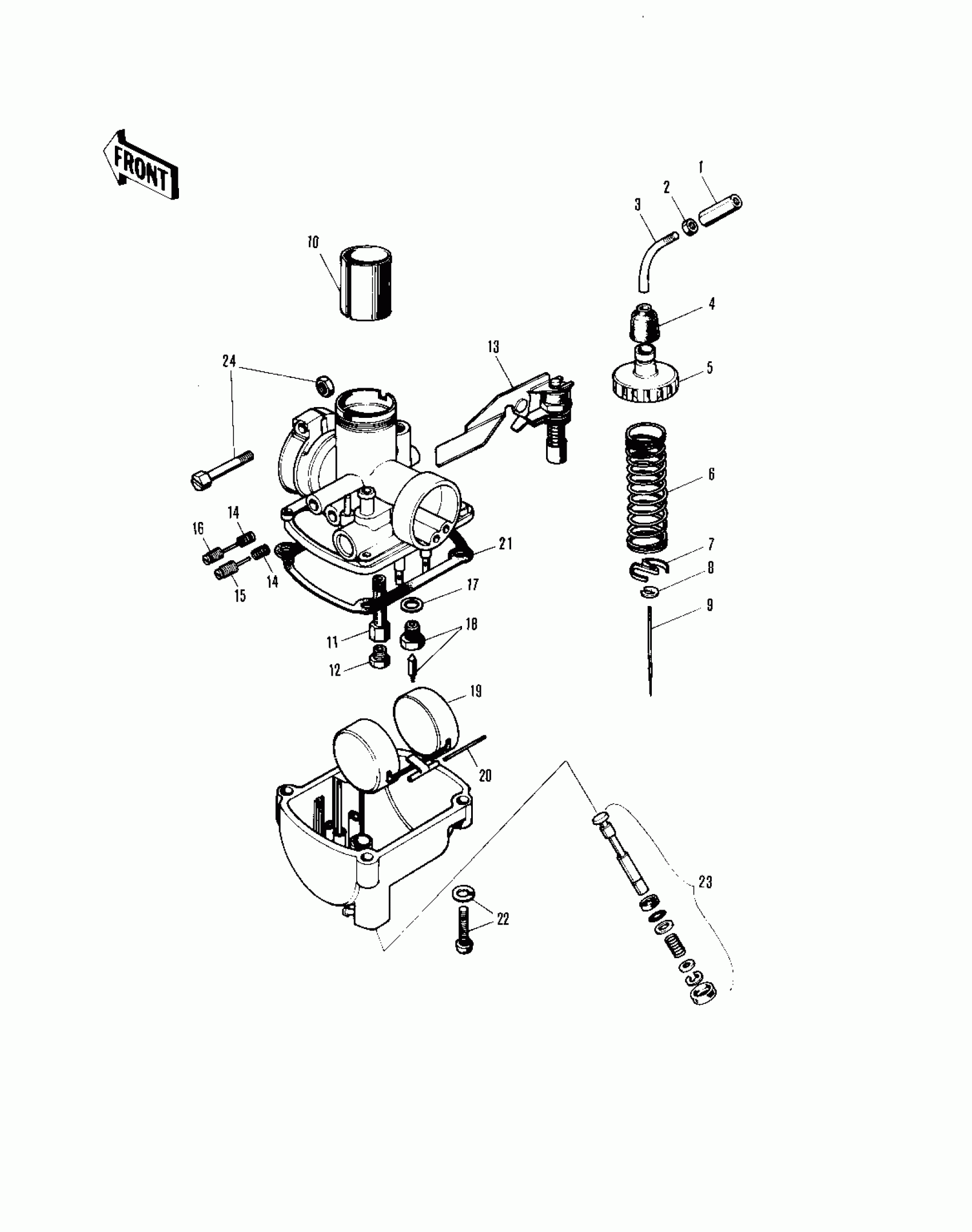

Kawasaki MT1C CARBURETOR ('71-'75) Diagram

#

Description
Price

1 25

CARBURETOR ASSY

16001-129

Unavailable

1

CABLE ADJUSTER

16002-004

Unavailable

2

NUT,CABLE ADJUST LOCK

16003-004

$7.53

3

*** N.L.A.*** (Canada)

16077-003

Unavailable

4

CAP-RUBBER

16037-001

$8.39

5

TOP-MIXING CHANBER

16005-001

Unavailable

6

SPRING-THROTTLE VALVE

16006-001

$10.90

7

SPRING SEAT THRTL VLV

16007-001

Unavailable

8

CLAMP,E-TYPE

16008-010

$8.95

9

JET NEEDLE 3G9

16009-042

$28.36

10

VALVE-THROTTLE CA2.0

16025-038

$100.00

11

NEEDLE JET E-0

16017-051

$34.17

12

MAIN JET NO 70M

92063-110

Unavailable

13

PLUNGER ASSY-STARTER

16016-009

Unavailable

14

SPRING,PILOT AIR SCREW

16022-007

$7.97

15

SCREW STOP

16021-001

Unavailable

16

SCREW-PILOT AIR

16014-002

Unavailable

17

GASKET,FLOAT VALVE SEAT

16029-002

$3.98

18

FLOAT VALVE ASSY

16030-002

Unavailable

19

FLOAT

16031-014

Unavailable

20

PIN,FLOAT

16032-003

$5.95

21

GASKET

16019-011

Unavailable

22

SCREW-FLOAT CHAMBER

16033-012

$1.68

23

EJECTOR ASSY-FUEL

16064-001

Unavailable

24

SCREW-CLAMP

16010-005

Unavailable
