2022 Yamaha MT10SP (MT10SPNS) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2022 Yamaha MT10SP (MT10SPNS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

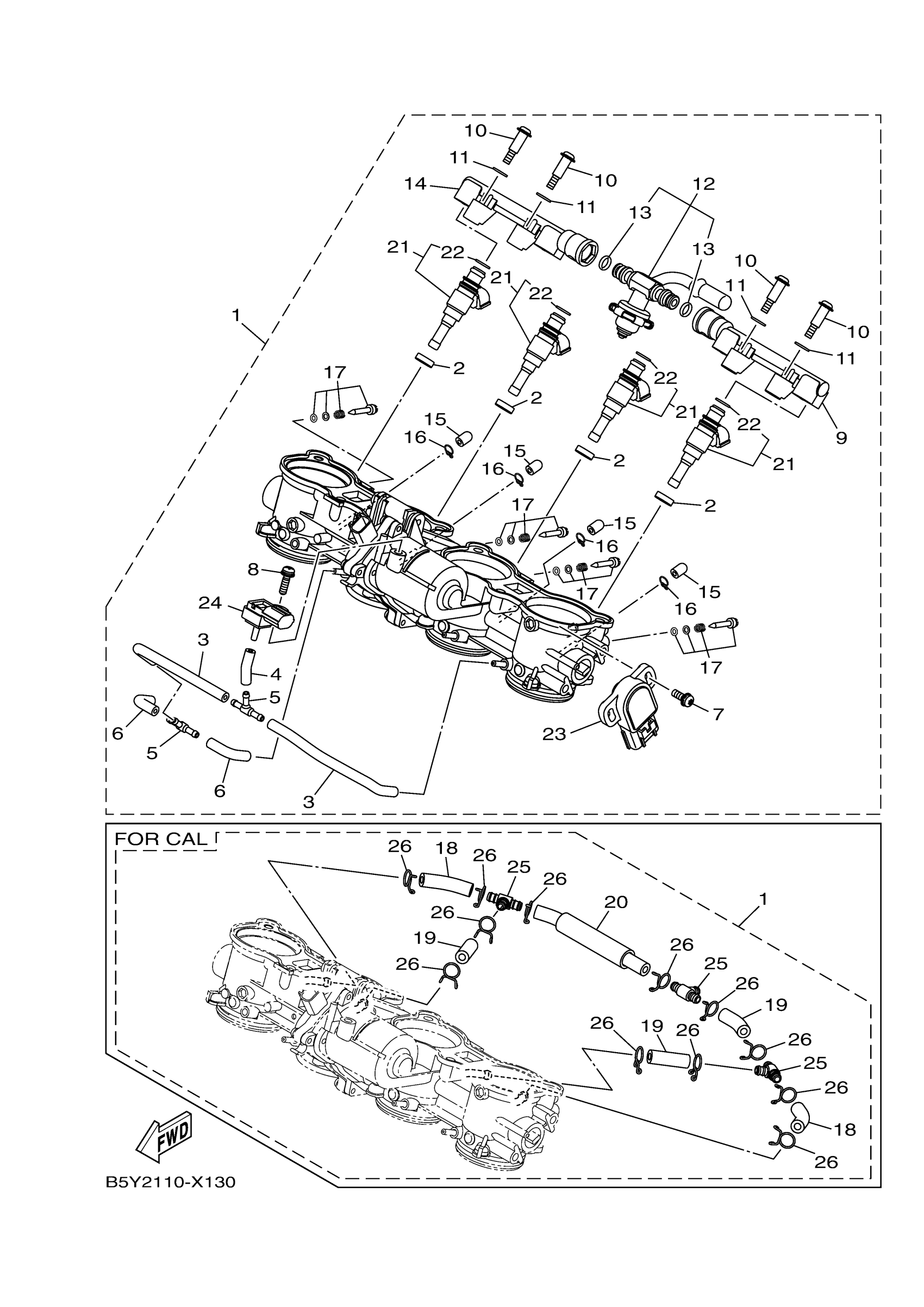

2022 Yamaha MT10SP (MT10SPNS) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

B5Y-13750-00-00

—
Out of stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1
Out of stock

3

HOSE

5JW-14987-00-00

—
Out of stock

4

PIPE 1

5FL-14348-10-00

1
Out of stock

5

. PIPE, JOINT 1

68V-24376-00-00

1
Out of stock

6

PIPE

8FP-14349-00-00

1
Out of stock

7

SCREW

8CC-14216-10-00

1
Out of stock

8

SCREW

2C0-14216-00-00

1
Out of stock

9

PIPE, INLET

2CR-1393A-00-00

—
Out of stock

10

BOLT 1

14B-13573-00-00

1
Out of stock

11

GASKET

363-14198-00-00

1
Out of stock

12

JOINT, THROTTLE BODY 1

B67-13795-00-00

—
Out of stock

13

O-RING

39P-14147-00-00

1
Out of stock

14

PIPE, INLET 2

2CR-1393B-00-00

—
Out of stock

15

CAP

895-14169-00-00

1
Out of stock

16

CLIP, PIPE

8A7-14139-00-00

—
Out of stock

17

PILOT SCREW SET

2C0-14105-00-00

—
Out of stock

18

PIPE

14B-14466-00-00

—
Out of stock

19

PIPE

14B-14465-00-00

—
Out of stock

20

PIPE

2CR-1443J-00-00

—
Out of stock

21

INJECTOR ASSY

4C8-13761-00-00

—
Out of stock

22

O-RING

5PS-14147-00-00

—
Out of stock

23

THROTTLE SENSOR AS

B3L-85885-01-00

—
Out of stock

24

SENSOR, PRESSURE

1WS-82380-00-00

—
Out of stock

25

WAY 3

90413-06031-00

—
Out of stock

26

CLIP

90467-100A1-00

—
Out of stock
