2022 Yamaha MT10SP (MT10SPNS) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2022 Yamaha MT10SP (MT10SPNS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

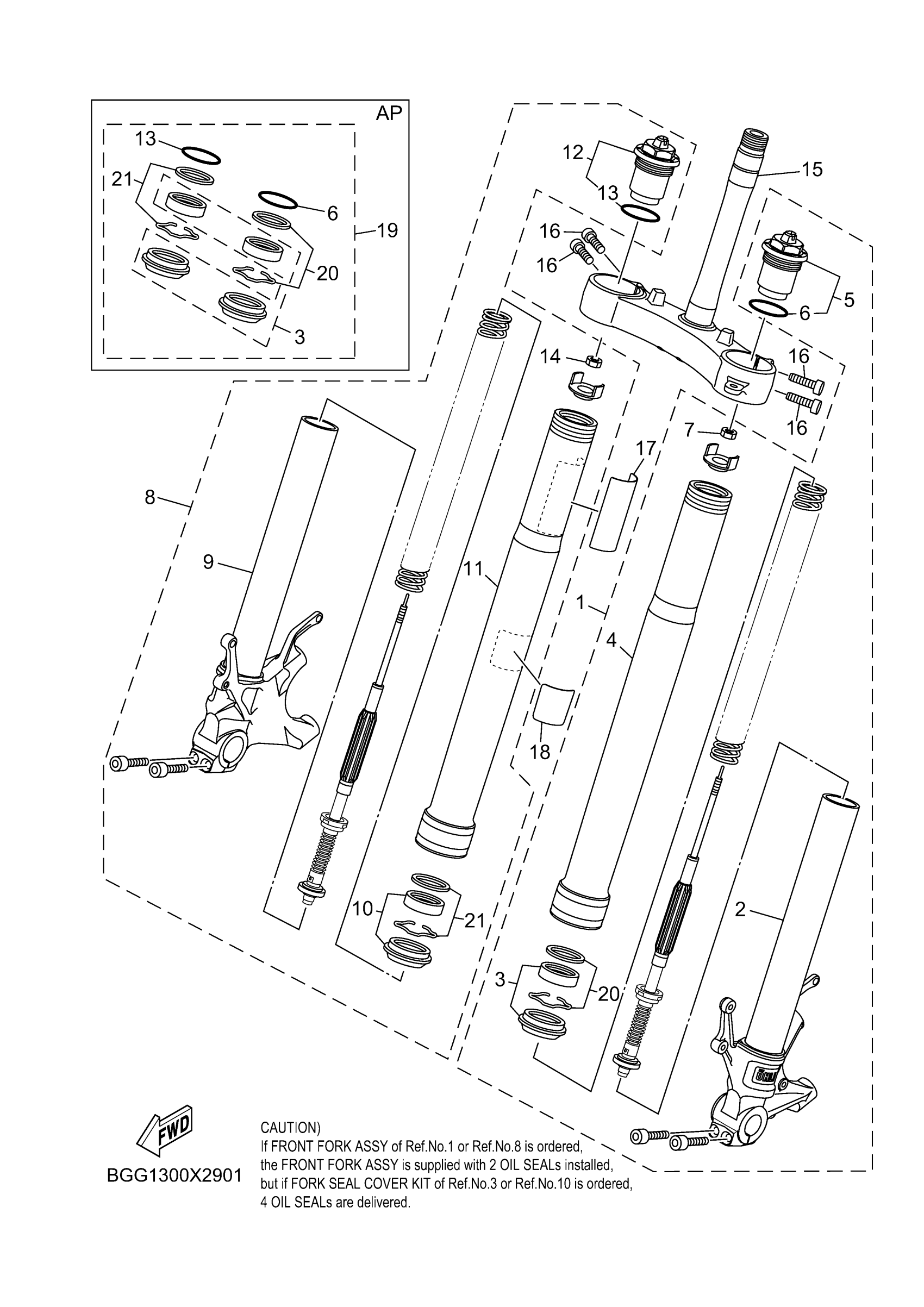

2022 Yamaha MT10SP (MT10SPNS) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

BGG-23102-00-00

—

$1,555.99

In stock

2

INNER TUBE COMP.1

BGG-23110-00-00

1

$817.99

In stock

3

FORK SEAL COVER KIT

2KS-231E0-00-00

1

$126.23

In stock

4

OUTER TUBE COMP.

2KS-23106-00-00

—

$736.99

In stock

5

BOLT, CAP

2KS-23111-00-00

—

$461.40

In stock

6

O-RING

93210-41N50-00

1

$6.26

In stock

7

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

8

FRONT FORK ASSY (R.H)

BGG-23103-00-00

—

$1,555.99

In stock

9

INNER TUBE COMP.2

BGG-23120-00-00

1

$817.99

In stock

10

FORK SEAL COVER KIT

2KS-231E0-00-00

1

$126.23

In stock

11

OUTER TUBE COMP.

2KS-23106-00-00

—

$736.99

In stock

12

BOLT, CAP

2KS-23111-00-00

—

$461.40

In stock

13

O-RING

93210-41N50-00

1

$6.26

In stock

14

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

15

UNDER BRACKET COMP

B5Y-23340-00-00

—

$630.85

In stock

16

BOLT,SOCKET

91314-08030-00

—

$2.29

In stock

17

PROTECTOR

BEB-23472-00-00

—

$12.40

In stock

18

SEAL

5PX-21669-01-00

—

$9.91

In stock

19

FORK SEALS KIT

BW8-W003B-01-00

1
Out of stock

20

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

1

$149.03

In stock

21

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

1

$149.03

In stock
