2025 Yamaha MT10 (MT10SGY) Shift Cam & Fork Diagram

← All diagrams

Find the part on the Shift Cam & Fork diagram for your 2025 Yamaha MT10 (MT10SGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

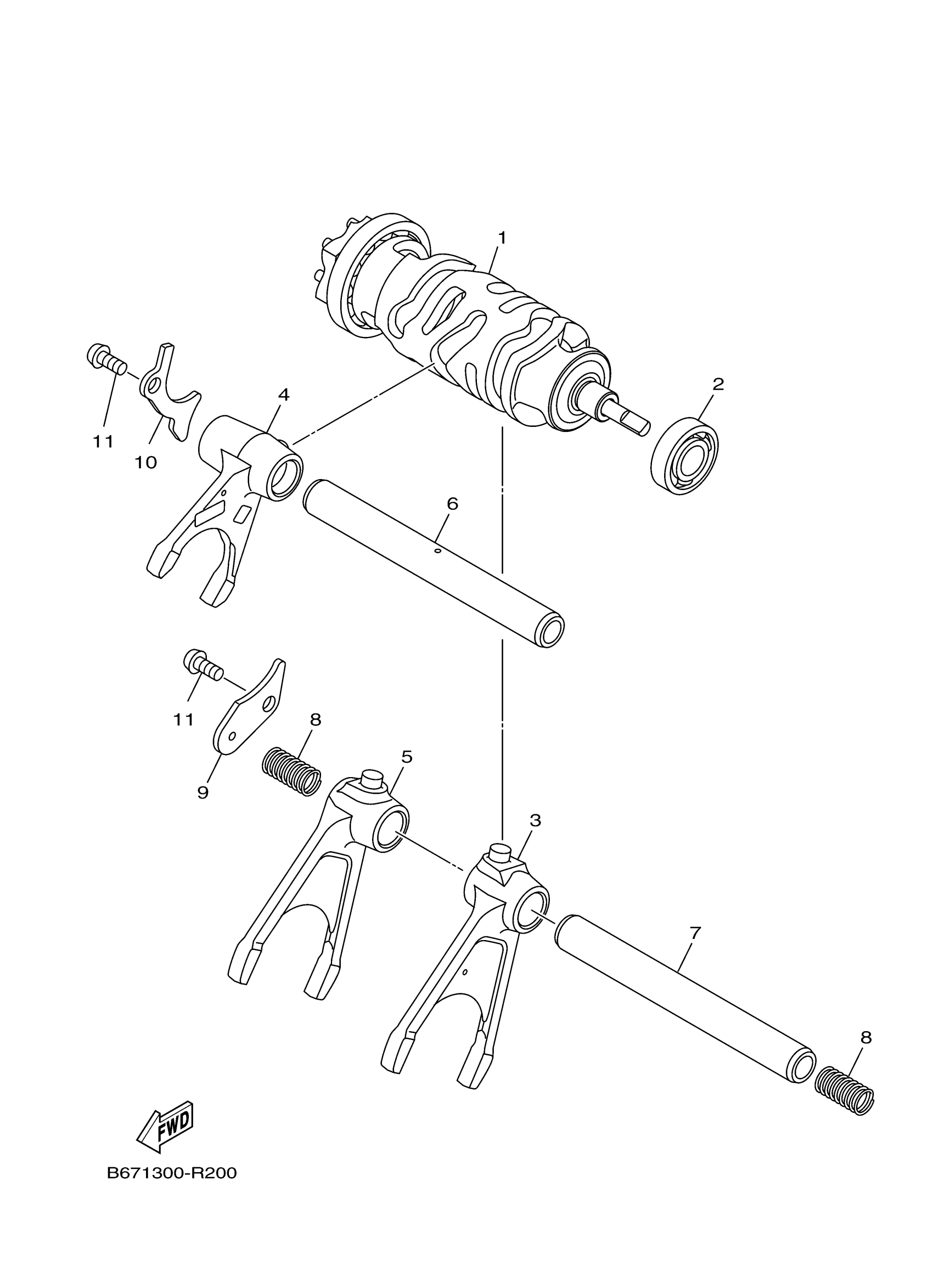

2025 Yamaha MT10 (MT10SGY) Shift Cam & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

2CR-18540-00-00

1
Out of stock

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1
Out of stock

3

FORK, SHIFT 1

B67-18511-00-00

—
Out of stock

4

FORK, SHIFT 2

B67-18512-00-00

—
Out of stock

5

FORK, SHIFT 3

2CR-18513-00-00

1
Out of stock

6

BAR, SHIFT FORK GUIDE 1

14B-18531-00-00

—
Out of stock

7

BAR, SHIFT FORK GUIDE 2

2C0-18535-00-00

—
Out of stock

8

SPRING, COMPRESSION

90501-080A2-00

1
Out of stock

9

STOPPER, SHIFT BAR

14B-18536-00-00

1
Out of stock

10

PLATE, STOPPER 2

14B-18562-00-00

1
Out of stock

11

SCREW

90149-06156-00

1
Out of stock
