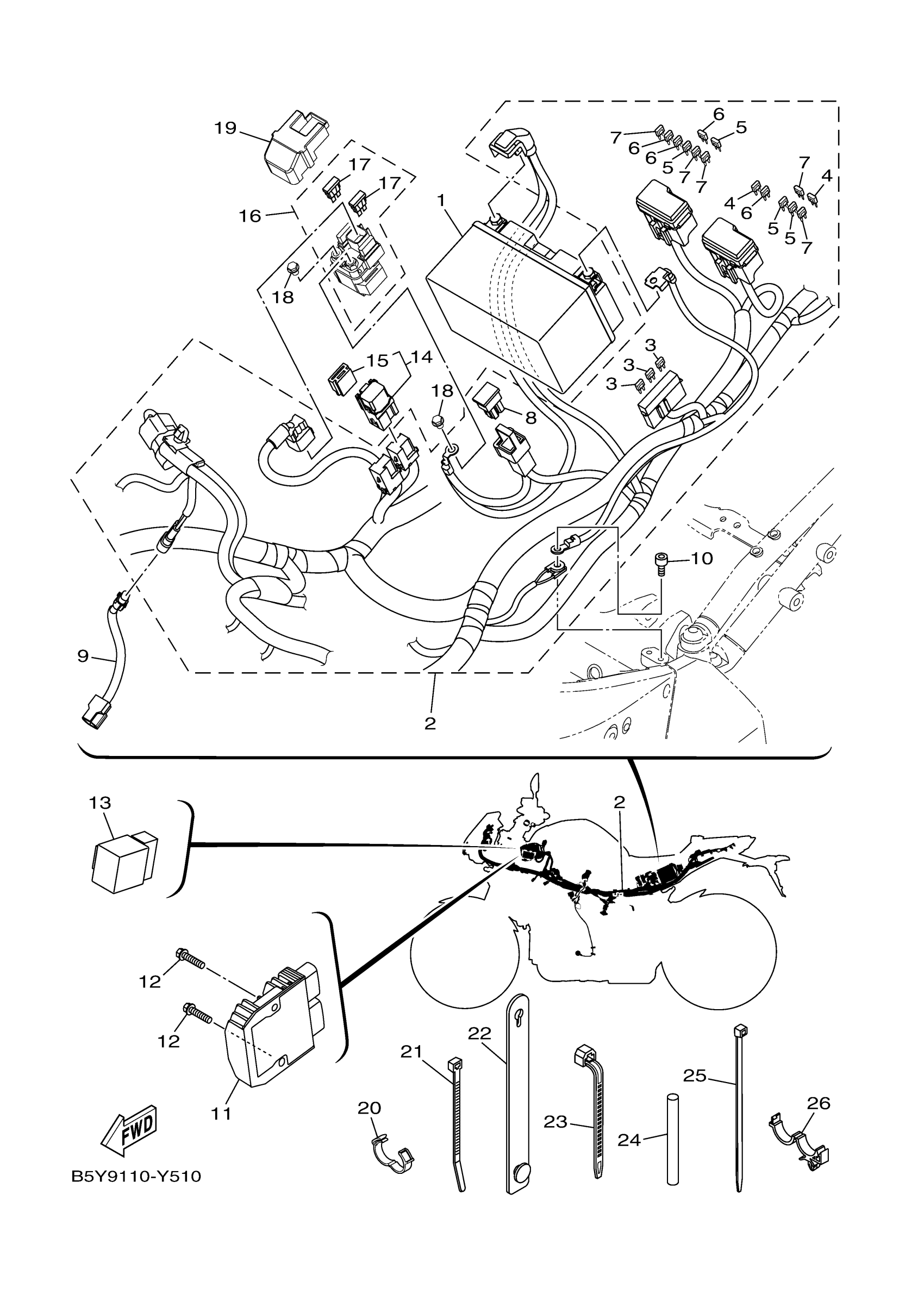

Yamaha MT10PGY (MT10) B5Y90 2023 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY

5VY-82100-02-00

$258.85

2

WIRE HARNESS ASSY

B5Y-82590-10-00

Unavailable

3

FUSE (1A-BL)

5JJ-82151-A0-00

$3.11

4

FUSE (2A-BL)

5JJ-82151-80-00

$6.74

5

FUSE (7.5A-BL)

5JJ-82151-00-00

$5.55

6

. FUSE (10A)

67F-82151-40-00

$6.07

7

FUSE (15A)

67F-82151-50-00

$3.48

8

FUSE (50A)

5JW-82151-10-00

$13.33

9

WIRE, SUB LEAD

B67-82309-00-00

Unavailable

10

BOLT,SOCKET

91317-06012-00

$5.75

11

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

$203.67

12

BOLT, FLANGE DEEP

95E37-06025-00

$0.38

13

RELAY ASSY

5VK-81950-33-00

Unavailable

14

RELAY ASSY

1TP-81950-00-00

$12.22

15

HOLDER,RELAY

5EA-81952-00-00

$6.29

16

STARTER RELAY ASSY

2CR-81940-00-00

Unavailable

17

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

18

BOLT, FLANGE

95022-06008-00

Unavailable

19

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

20

CLAMP

90464-16003-00

Unavailable

21

CLAMP

90465-10098-00

$1.68

22

BAND

B5U-82591-00-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

HOSE

90445-09132-00

Unavailable

25

CLAMP

90464-16061-00

Unavailable

26

CLAMP

90464-16006-00

Unavailable
