2021 Yamaha MT10 (MT10ML) Intake Diagram

← All diagrams

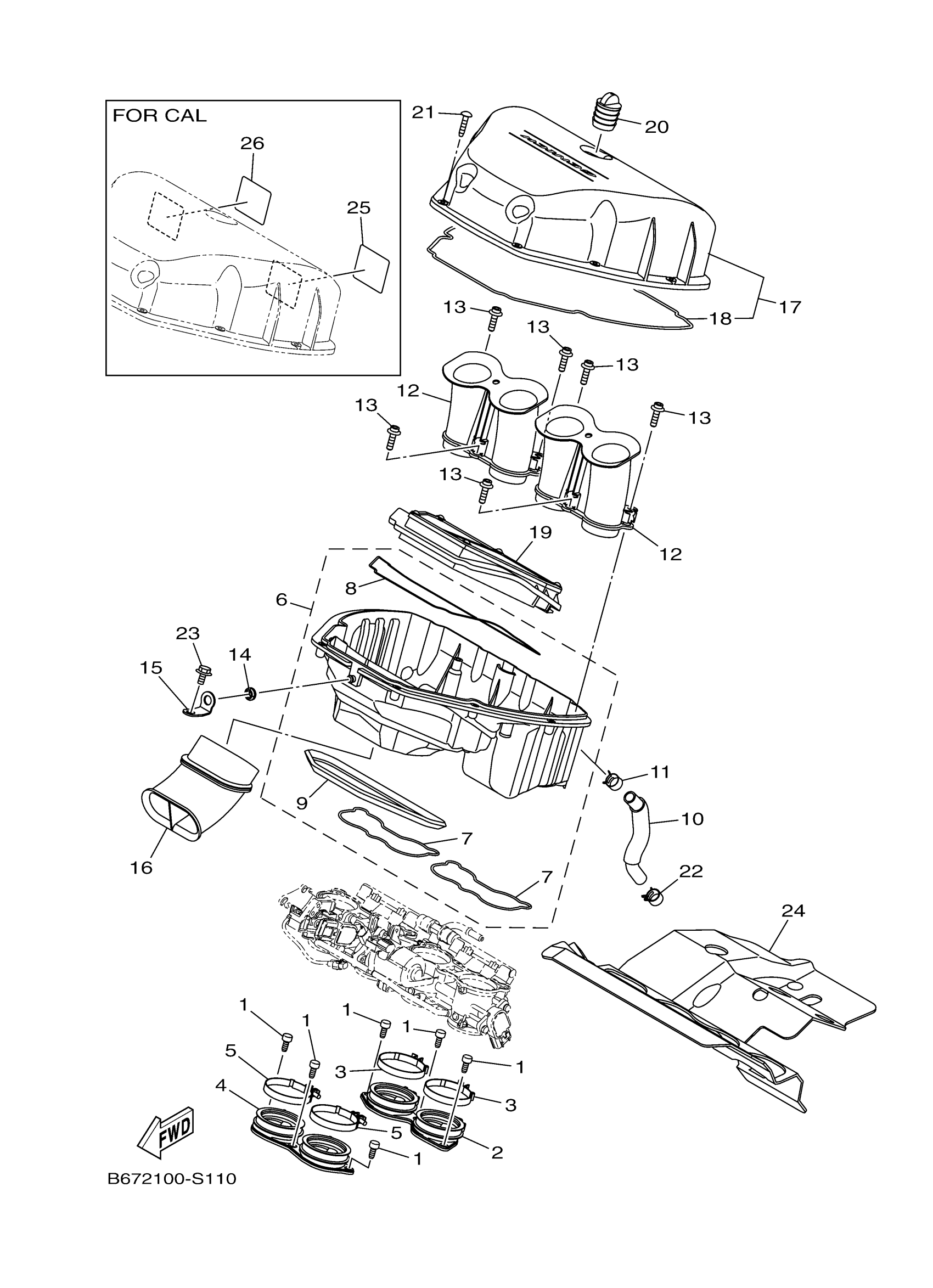

Find the part on the Intake diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT10 (MT10ML) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (33M)

91312-06014-00

1

$4.74

In stock

2

JOINT, INTAKE 1

2CR-13635-00-00

—

$50.95

In stock

3

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

4

JOINT, INTAKE 2

2CR-13636-00-00

—

$50.95

In stock

5

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

6

CASE, AIR CLEANER 1

B67-14411-00-00

—

$123.11

In stock

7

SEAL

2CR-14457-00-00

1

$6.15

In stock

8

SEAL

2CR-14462-00-00

1

$10.54

In stock

9

DAMPER 1

2CR-14425-00-00

—

$3.95

In stock

10

PIPE, BREATHER 2

2CR-15393-00-00

1

$13.05

In stock

11

CLIP

90467-15001-00

1

$5.72

In stock

12

FUNNEL, AIR

B67-14469-01-00

—

$45.31

In stock

13

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

1

$7.45

In stock

14

GROMMET

90480-12010-00

—

$5.22

In stock

15

STAY 1

B67-14498-00-00

—

$5.86

In stock

16

DUCT

B67-14437-01-00

—

$35.34

In stock

17

CASE, AIR CLEANER 2

B67-14421-00-00

—

$104.11

In stock

18

SEAL

2CR-14452-00-00

—

$17.37

In stock

19

ELEMENT, AIR CLEANER

2CR-14451-01-00

—
Out of stock

20

PLUG

5VY-14862-00-00

—

$8.78

In stock

21

SCREW, ROUND TAPPING

90160-05013-00

—

$6.17

In stock

22

CLIP

90467-160A6-00

—

$2.91

In stock

23

BOLT, WITH WASHER

90119-06051-00

—

$6.31

In stock

24

PROTECTOR, HEAT

2CR-12682-10-00

—

$63.57

In stock
