2021 Yamaha MT10 (MT10ML) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

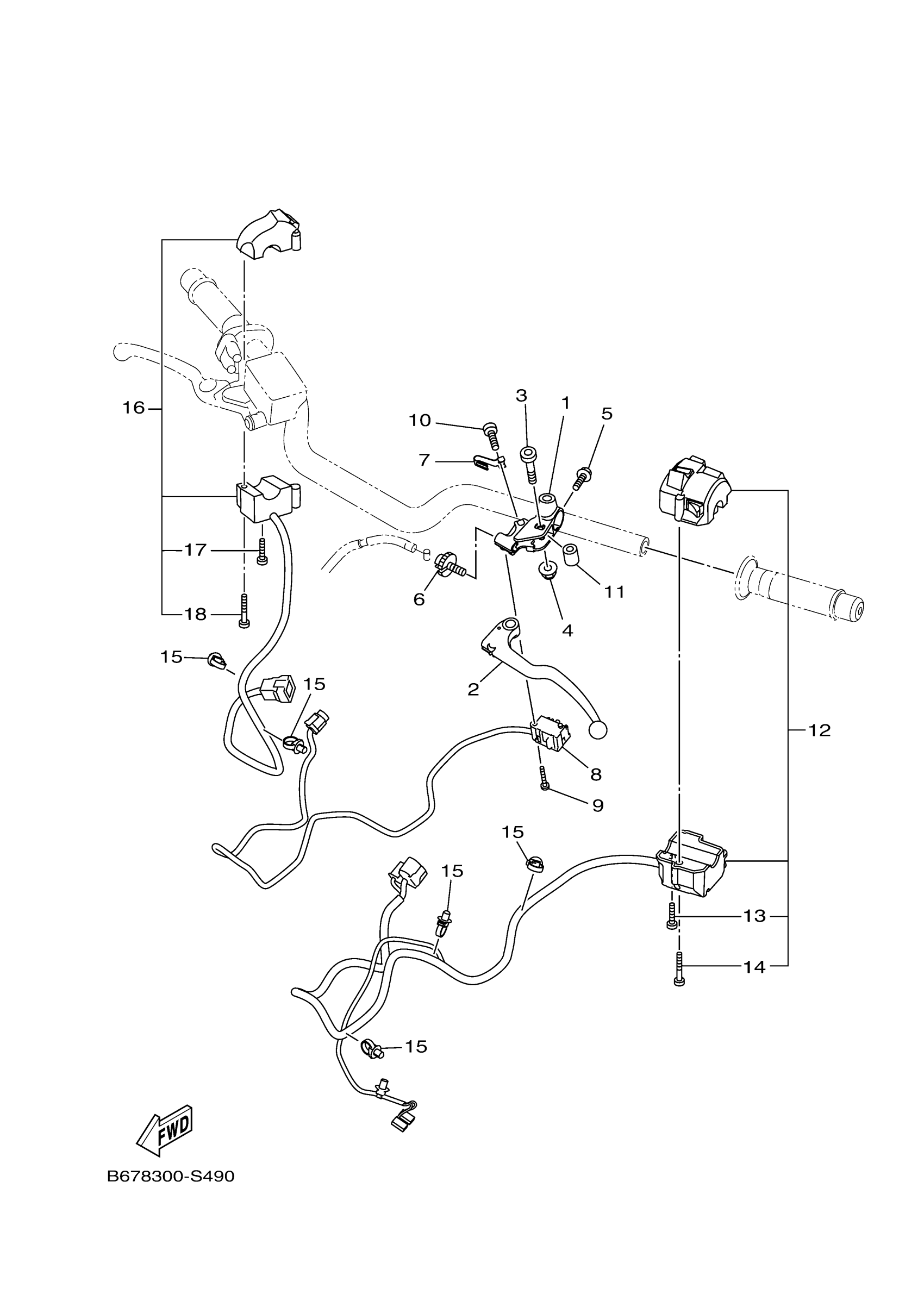

2021 Yamaha MT10 (MT10ML) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

B67-82911-00-00

1

$49.05

In stock

2

LEVER 1

B5U-83912-00-00

1

$42.02

In stock

3

BOLT, LEVER

2C0-83945-00-00

—

$9.02

In stock

4

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

5

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

1

$49.02

In stock

7

PLATE, SPRING

4XV-83929-00-00

1

$9.34

In stock

8

SWITCH

B67-82917-01-00

1
Out of stock

9

1

$3.30

In stock

10

SCREW, PAN HEAD(6G8)

98507-04010-00

1

$3.26

In stock

11

COLLAR, LEVER 1

5JJ-83913-00-00

1

$7.52

In stock

12

SWITCH, HANDLE 7

B67-83954-01-00

1
Out of stock

13

SCREW, PAN

98507-05040-00

1

$6.68

In stock

14

SCREW, PAN HEAD

98507-05055-00

—

$1.68

In stock

15

CLAMP

90464-30010-00

1

$1.54

In stock

16

SWITCH, HANDLE 3

B67-83963-00-00

—

$158.97

In stock

17

SCREW, PAN

98507-05035-00

—

$6.69

In stock

18

SCREW, PAN

98507-05045-00

—

$7.14

In stock
