2025 Yamaha MT09 SP (MT09SPSS) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2025 Yamaha MT09 SP (MT09SPSS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

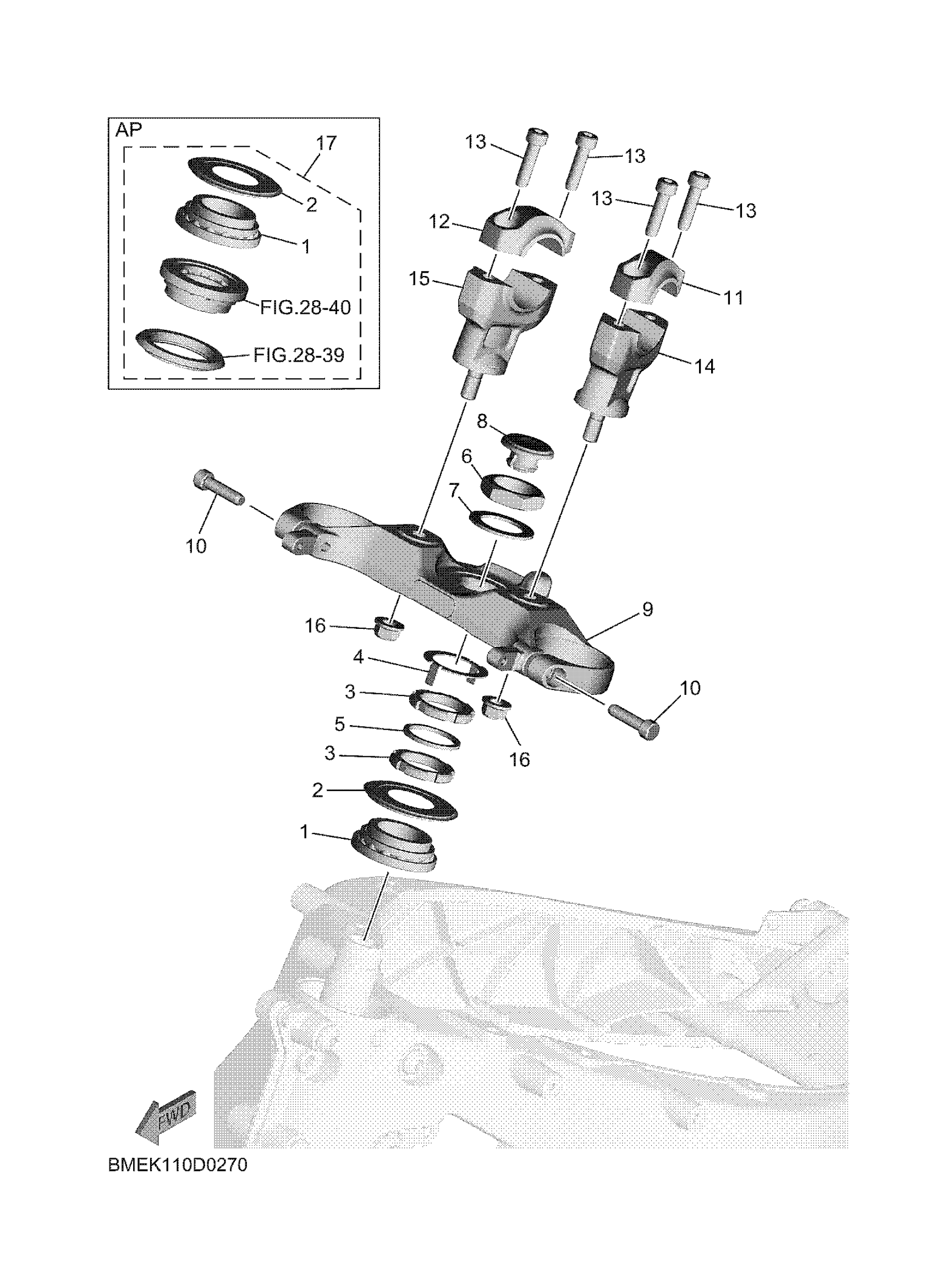

2025 Yamaha MT09 SP (MT09SPSS) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(3FV)

93399-99932-00

1
Out of stock

2

COVER, BALL RACE 1

4XV-23415-01-00

1
Out of stock

3

NUT

90179-30006-00

1
Out of stock

4

WASHER, SPECIAL

4XV-23418-00-00

1
Out of stock

5

WASHER, PLATE

90202-30235-00

1
Out of stock

6

NUT

90170-28419-00

1
Out of stock

7

WASHER, PLATE

90201-281U8-00

1
Out of stock

8

CAP

BEA-2319U-00-00

—
Out of stock

9

CROWN, HANDLE

BME-23435-00-00

1
Out of stock

10

BOLT, SOCKET

91317-08030-00

1
Out of stock

11

HOLDER, HANDLE UPP

1RC-23441-11-00

1
Out of stock

12

HOLDER, HANDLE UPP

1RC-2344A-11-00

1
Out of stock

13

BOLT, SOCKET

91317-08030-00

1
Out of stock

14

HOLDER 1

B67-24847-10-00

—
Out of stock

15

HOLDER 2

B67-24848-10-00

—
Out of stock

16

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

17

STEERING BEARING KIT

BMP-W000B-00-00

—
Out of stock
