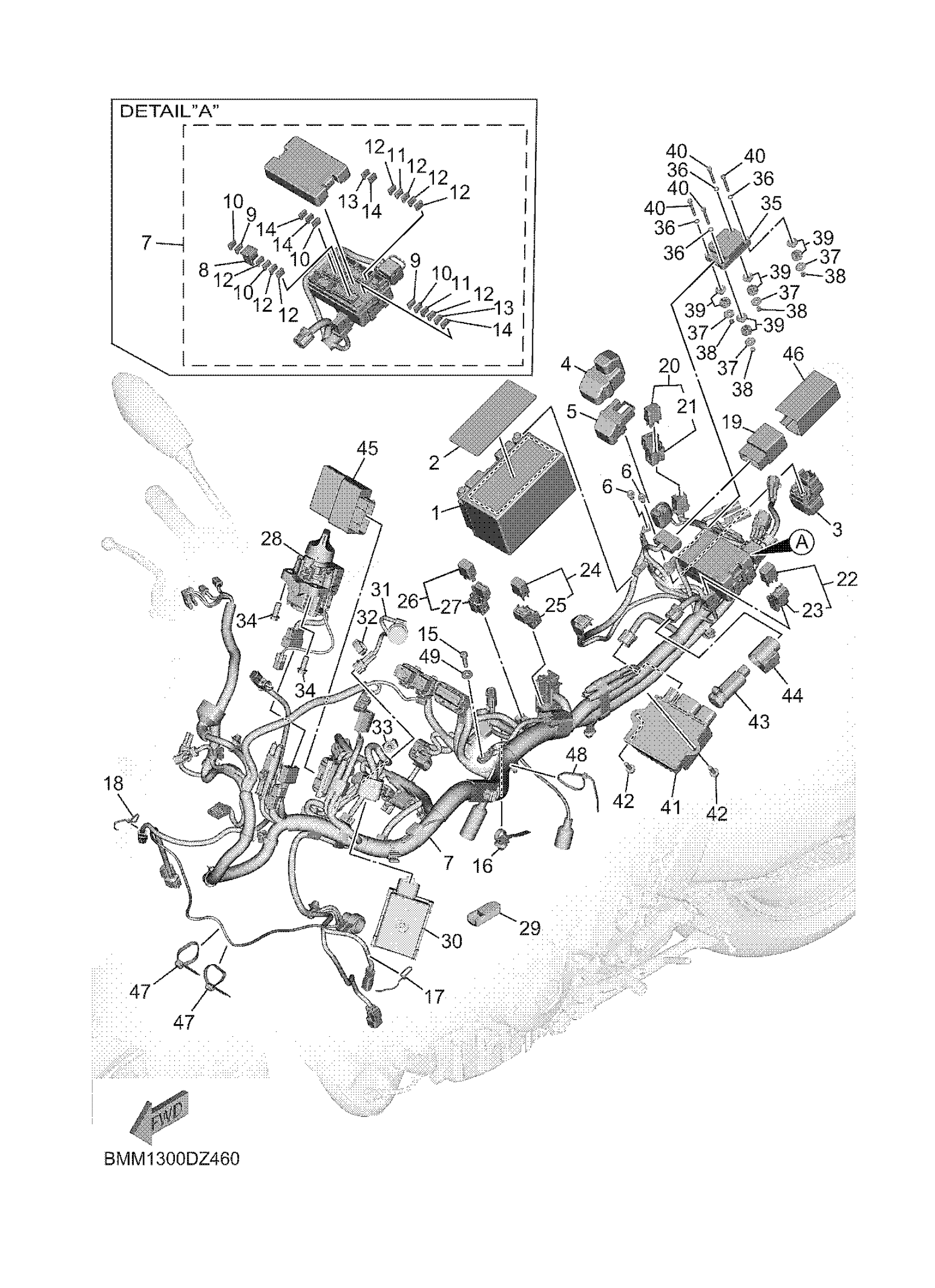

Find the part on the Electrical 1 diagram for your 2024 Yamaha MT09 SP (MT09SPRS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 SP (MT09SPRS) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY

5VY-82100-02-00

1
Out of stock

2

SEAL, BATTERY

BME-82118-00-00

1
Out of stock

3

STARTER RELAY ASSY

B7N-81940-00-00

—
Out of stock

4

COVER

BME-81942-00-00

1
Out of stock

5

COVER, LEAD WIRE

5SL-82119-30-00

1
Out of stock

6

BOLT FLANGE

90105-06230-00

—
Out of stock

7

WIRE HARNESS ASSY

BMM-82590-60-00

—
Out of stock

8

FUSE

B7N-82151-B1-00

1
Out of stock

9

FUSE (30A)

B7N-82151-60-00

1
Out of stock

10

FUSE (15A)

B7N-82151-10-00

1
Out of stock

11

FUSE (10A)

B7N-82151-30-00

—
Out of stock

12

FUSE (7.5A)

B7N-82151-00-00

1
Out of stock

13

FUSE (5A)

BLG-82151-90-00

1
Out of stock

14

FUSE (2A)

B7N-82151-80-00

1
Out of stock

15

BOLT,SOCKET

91317-06020-00

—
Out of stock

16

CLAMP

90464-25009-00

—
Out of stock

17

CLAMP

90465-10098-00

1
Out of stock

18

CLAMP

90465-10098-00

1
Out of stock

19

RELAY ASSY

5VK-81950-53-00

—
Out of stock

20

RELAY ASSY

1TP-81950-00-00

—
Out of stock

21

HOLDER,RELAY

5EA-81952-00-00

—
Out of stock

22

RELAY ASSY

1TP-81950-00-00

—
Out of stock

23

HOLDER,RELAY

5EA-81952-00-00

—
Out of stock

24

RELAY ASSY

1TP-81950-00-00

—
Out of stock

25

HOLDER,RELAY

5EA-81952-00-00

—
Out of stock

26

RELAY ASSY

1TP-81950-00-00

—
Out of stock

27

HOLDER,RELAY

5EA-81952-00-00

—
Out of stock

28

MAIN SWITCH ASSY

BMM-82510-00-00

—
Out of stock

29

.. XMTR COMP

BMM-86261-10-00

1
Out of stock

30

RECEIVER COMPLETE

BMM-86265-10-00

1
Out of stock

31

BUZZER

2DF-83383-00-00

—
Out of stock

32

CLAMP

90464-16003-00

—
Out of stock

33

CLAMP

90464-12018-00

—
Out of stock

34

BOLT, WASHER BASED(3JP)

90105-081A1-00

—
Out of stock

35

INERTIAL MEASURE,

BME-8593A-00-00

—
Out of stock

36

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

37

WASHER PLATE

90201-04034-00

—
Out of stock

38

NUT, U (7LY)

95617-04100-00

—
Out of stock

39

GROMMET AND COLLAR

B7N-W8A8D-00-00

—
Out of stock

40

BOLT, HEXAGON SOCKET HEAD

91317-04030-00

1
Out of stock

41

GENERATOR CONTROL

BME-81963-01-00

—
Out of stock

42

BOLT, FLANGE DEEP

95D37-06016-00

—
Out of stock

43

USB ASSY

BME-821E0-00-00

—
Out of stock

44

BAND

BME-82591-00-00

—
Out of stock

45

BODY CONT,MODULE A

BMM-85903-10-00

—
Out of stock

46

COVER 1

1WS-8246B-00-00

—
Out of stock

47

CLAMP(4FM)

90464-15195-00

—
Out of stock

48

BAND

1UA-82591-00-00

—
Out of stock

49

WASHER, PLATE (35R)

90201-060H9-00

—
Out of stock
