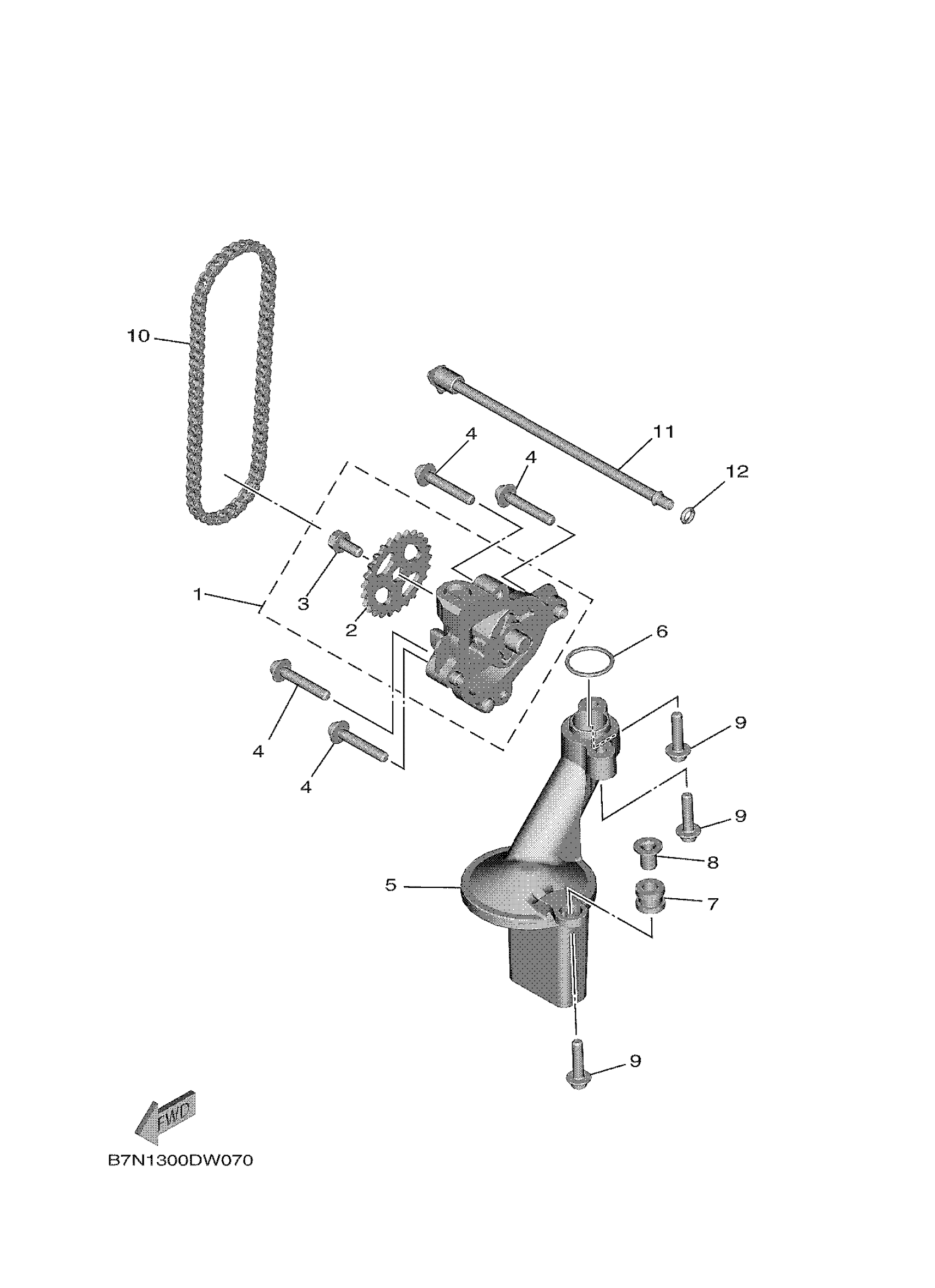

Yamaha MT09SPPS (MT09 SP) BAMK 2023 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

B7N-13300-00-00

$158.74

2

SPROCKET, DRIVEN

1RC-13355-00-00

$31.97

3

BOLT, FLANGE

90105-06066-00

$5.87

4

BOLT, HEXAGON SOCKET HEAD

90110-06433-00

Unavailable

5

STRAINER HOUSING ASSY

B7N-13410-00-00

$26.18

6

O-RING

93210-22001-00

$4.85

7

GROMMET

90480-13010-00

$5.71

8

COLLAR, DISTANCE

5VY-13117-10-00

$8.18

9

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

10

CHAIN

94581-79066-00

$17.03

11

PIPE DELIVERY 5

B7N-1316E-00-00

Unavailable

12

O-RING(26H)

93210-06667-00

$5.42
