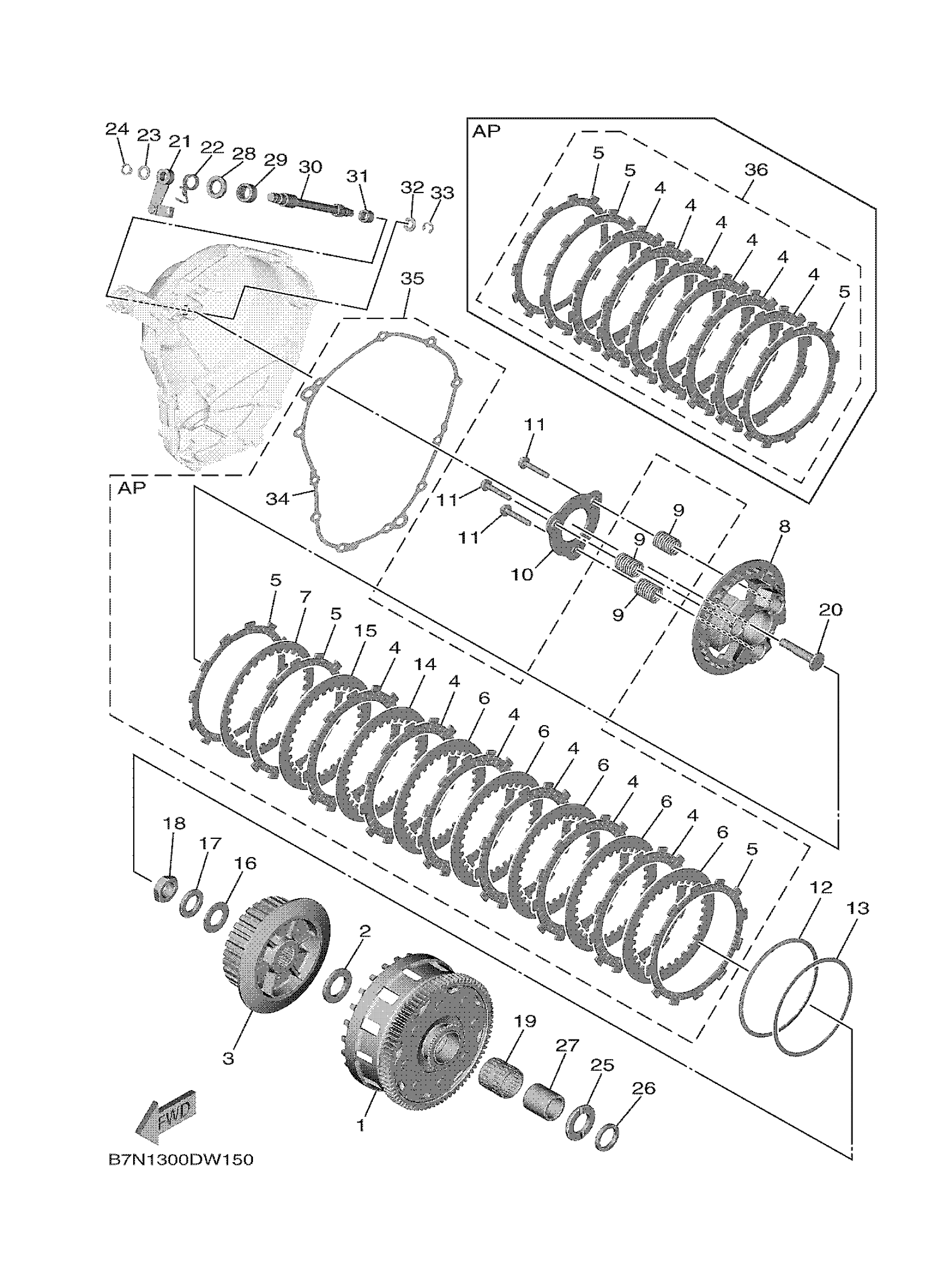

Yamaha MT09SPPS (MT09 SP) BAMK 2023 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

B7N-16150-00-00

$395.37

2

PLATE, THRUST

363-16154-00-00

$13.33

3

BOSS, CLUTCH

B7N-16371-00-00

$116.88

4

PLATE, FRICTION

B7N-16321-00-00

$10.47

5

PLATE, FRICTION 2

B90-16331-00-00

$17.61

6

PLATE, CLUTCH 2

5VY-16325-20-00

Unavailable

7

PLATE, CLUTCH 1

1TD-16324-00-00

$6.95

8

PRESSURE PLATE ASS

B7N-16350-00-00

$106.32

9

SPRING, COMPRESSIO

B7N-16173-00-00

$9.02

10

PLATE, PRESSURE 2

B90-16352-00-00

$7.29

11

SCREW, SPRING

2CR-16337-00-00

$2.33

12

SPRING.,CUSHION

1TD-16383-01-00

$24.95

13

PLATE, SEAT

1TD-16384-00-00

$13.99

14

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

14

PLATE, CLUTCH 2

5VY-16325-20-00

Unavailable

14

PLATE, CLUTCH 1

BR9-16324-10-00

Unavailable

15

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

15

PLATE, CLUTCH 2

5VY-16325-20-00

Unavailable

15

PLATE, CLUTCH 1

BR9-16324-10-00

Unavailable

16

WASHER, PLATE

90201-20030-00

Unavailable

17

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

18

NUT

90179-20020-00

Unavailable

19

BEARING

93310-33277-00

Unavailable

20

ROD, PUSH 1

B7N-16356-00-00

Unavailable

21

PUSH LEVER ASSY

1RC-16340-00-00

Unavailable

22

SPRING, TORSION

90508-18051-00

Unavailable

23

WASHER, PLATE

90201-10029-00

Unavailable

24

CIRCLIP(10W)

99009-10400-00

Unavailable

25

PLATE, THRUST 2

B7N-16164-00-00

Unavailable

26

PLATE, THRUST 2

2C0-16164-00-00

Unavailable

27

SPACER 1

1RC-16181-00-00

Unavailable

28

OIL SEAL (3X3)

93102-15212-00

Unavailable

29

BEARING

93315-21570-00

Unavailable

30

AXLE, PUSH LEVER

5VY-16382-10-00

Unavailable

31

BEARING

93317-11096-00

Unavailable

32

WASHER(6TA)

92907-08600-00

Unavailable

33

CIRCLIP

99080-07600-00

$2.82

34

GASKET, CRANKCASE COVER 2

B7N-15461-01-00

Unavailable

35

CLUTCH PLATE KIT

B7N-W001G-01-00

Unavailable

36

FRICTION PLATE KIT

B7N-W001M-00-00

Unavailable
