2022 Yamaha MT09 SP (MT09SPNS) Meter Diagram

← All diagrams

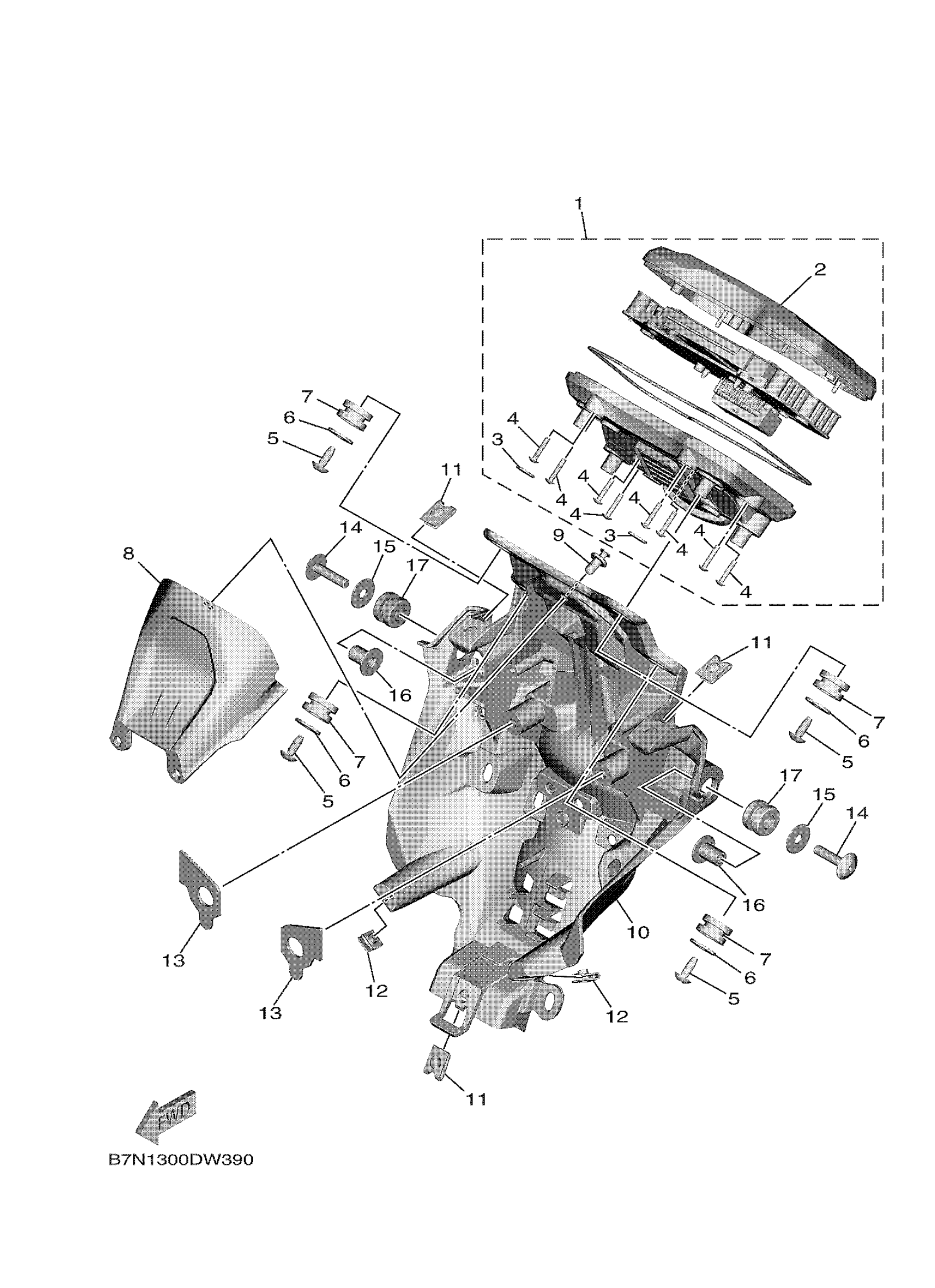

Find the part on the Meter diagram for your 2022 Yamaha MT09 SP (MT09SPNS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha MT09 SP (MT09SPNS) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

BAM-83500-20-00

—

$926.99

In stock

2

CASE, METER UPPER

BAM-8353E-20-00

—

$119.82

In stock

3

SEAL 1

8GC-21732-00-00

1

$1.57

In stock

4

SCREW, PANEL FITTING

5PW-8352S-00-00

1
Out of stock

5

SCREW, ROUND TAPPING

90160-05017-00

1

$1.32

In stock

6

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

7

DAMPER

4XV-83513-00-00

1

$6.42

In stock

8

COVER, METER

B7N-83559-00-00

1

$6.05

In stock

9

RIVET

90269-06018-00

1

$1.88

In stock

10

BRACKET, METER

B7N-83519-00-00

1

$43.83

In stock

11

NUT, SPRING

90183-061A4-00

1

$1.97

In stock

12

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

13

DAMPER

B7N-83513-00-00

1

$3.37

In stock

14

BOLTHEX. SOCKET BUTTON

90111-06189-00

1

$2.29

In stock

15

WASHER, PLATE

90201-06095-00

1

$6.31

In stock

16

COLLAR

90387-06136-00

—
Out of stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
