2021 Yamaha MT09 SP CA (MT09SPMCB) Front Fork Diagram

← All diagrams

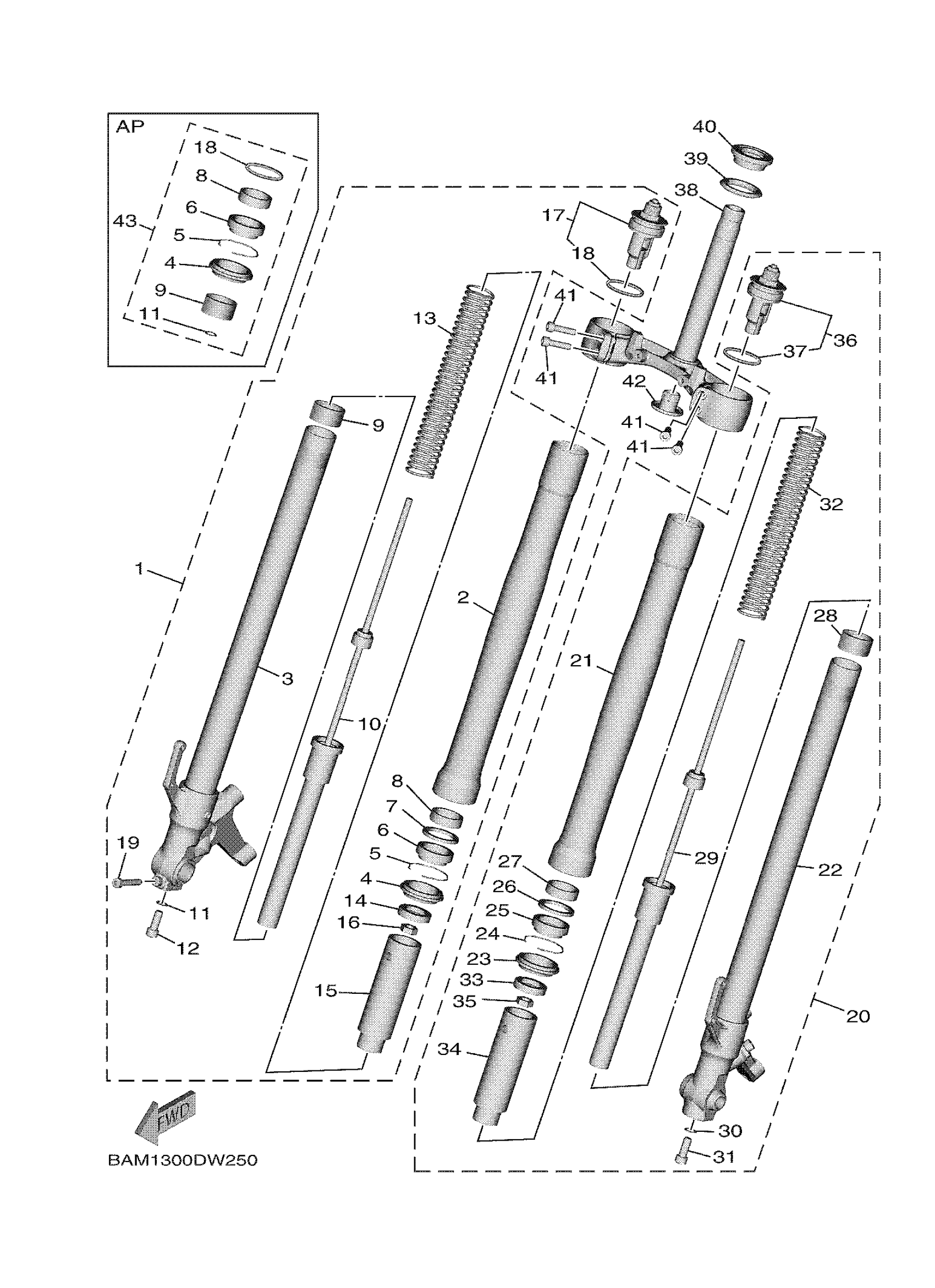

Find the part on the Front Fork diagram for your 2021 Yamaha MT09 SP CA (MT09SPMCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT09 SP CA (MT09SPMCB) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (R

BAM-23103-00-00

—
Out of stock

2

TUBE, OUTER (L.H)

B7N-23126-10-00

—
Out of stock

3

INNER TUBE COMP.2

BAM-23120-00-00

—
Out of stock

4

SEAL, DUST

4EB-23144-00-00

1
Out of stock

5

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

6

OIL SEAL

4EB-23145-01-00

1
Out of stock

7

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

8

METAL, SLIDE 1

1RC-23125-00-00

1
Out of stock

9

METAL, SLIDE

4FM-23171-40-00

1
Out of stock

10

CYLINDER COMP., FR

BAM-23170-00-00

—
Out of stock

11

GASKET

509-23158-L0-00

1
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

13

SPRING, FRONT FORK

B7N-23141-00-00

—
Out of stock

14

WASHER

5VY-12277-00-00

1
Out of stock

15

SPACER

5VY-23118-00-00

—
Out of stock

16

NUT

3LC-23357-00-00

—
Out of stock

17

BOLT, CAP

B6C-23111-11-00

—
Out of stock

18

O-RING

3XJ-23147-L1-00

—
Out of stock

19

BOLT, SOCKET

91314-08035-00

—
Out of stock

20

FRONT FORK ASSY (L

BAM-23102-00-00

—
Out of stock

21

TUBE, OUTER (L.H)

B7N-23126-10-00

—
Out of stock

22

INNER TUBE COMP.1

BAM-23110-00-00

—
Out of stock

23

SEAL, DUST

4EB-23144-00-00

1
Out of stock

24

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

25

OIL SEAL

4EB-23145-01-00

1
Out of stock

26

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

27

METAL, SLIDE 1

1RC-23125-00-00

1
Out of stock

28

METAL, SLIDE

4FM-23171-40-00

1
Out of stock

29

CYLINDER COMP., FR

B7N-23170-00-00

—
Out of stock

30

GASKET

509-23158-L0-00

1
Out of stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

32

SPRING, FRONT FORK

B7N-23141-00-00

—
Out of stock

33

WASHER

5VY-12277-00-00

1
Out of stock

34

SPACER

5VY-23118-00-00

—
Out of stock

35

NUT

3LC-23357-00-00

—
Out of stock

36

BOLT, CAP

B6C-23111-11-00

—
Out of stock

37

O-RING

3XJ-23147-L1-00

—
Out of stock

38

UNDER BRACKET COMP

B7N-23340-00-00

—
Out of stock

39

SEAL, STEERING

3FV-23462-00-00

—
Out of stock

40

BEARING

93399-99957-00

—
Out of stock

41

BOLT,SOCKET

91314-08030-00

—
Out of stock

42

COVER, LOWER 1

4KM-23123-01-00

—
Out of stock

43

FORK SEAL KIT (ONE FORK)

B7N-W003B-00-00

—
Out of stock
